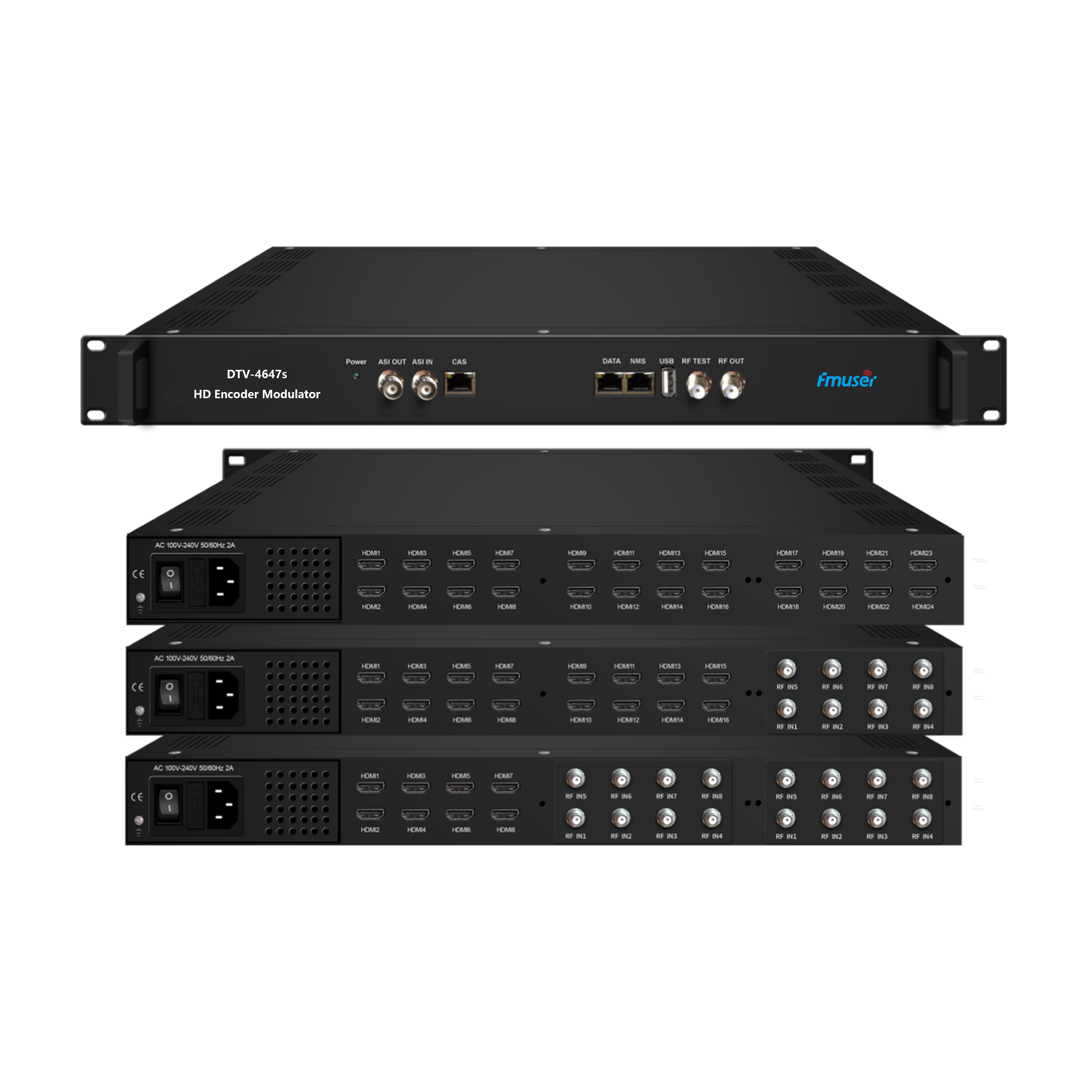

FMUSER DTV-4647S-16 8 HD+8 DVB-S/S2 in 8 DVB-T IP out Encoder Modulator

FMUSER DTV-4647S-16 8 HD+8 DVB-S/S2 in 8 DVB-T IP out Encoder Modulator

FOB Reference Price: Get Latest Price

≥2 Sets

US $1930

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: DTV-4647S-16 8 HD+8 DVB-S/S2 in 8 DVB-T Encoder Modulator

Input:: 8 HD+8 DVB-S/S2

Output:: IP

Type:: HD+RF to IP DVB-t

Application:: Digital TV Head-end System

Streaming Protocol:: UDP/RTP/RTSP

Management:: Web-based NMS Management

Quick Details

Place of Origin:: China

Brand Name:: FMUSER

Model Number:: DTV-4647S-16

Product name:: DTV-4647S-16 8 HD+8 DVB-S/S2 in 8 DVB-T Encoder Modulator

Input:: 8 HD+8 DVB-S/S2

Output:: IP

Type:: HD+RF to IP DVB-t

Application:: Digital TV Head-end System

Streaming Protocol:: UDP/RTP/RTSP

Management:: Web-based NMS Management

Note: Quantity 2 is 1 set. If you need to buy, please contact us to modify the price after placing an order. One set is 1930USD

FMUSER DTV-4635/39/47S-4/8/16/24 8/16/24 HD or DVB-S 2 /S2X in mix Tuner or 1 ASI 1 USB and 128 IP(UDP/RTP) in DVB-C/T, ATSC, ISDB-T through RF out Encoder Modulator

Overview:
FMUSER DTV-4647S is a professional high-integration device that includes encoding (and demodulation), multiplexing, and modulation functions in one case. It supports 8/16/24 HD (or HD plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input, and 128 IP inputs via the GE port, and outputs by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as a mirror of carriers through the GE port and 1 ASI out as a mirror of one of the carriers. This full-function device makes it ideal for small CATV head-end systems, and it's a smart choice for hotel TV systems, entertainment systems in sports bars, hospitals, apartments, and more.

Features :

FMUSER DTV-4647S include 8/16/24 HD (or HD plus DVB-S2/S2X tuner) inputs with MPEG-4 AVC/H.264 video encoding, 1 ASI input for re-mux, and 1 USB player (insert the USB flash drive with "xxx.ts" videos in DTV-4647S and play back the content in an easy way; file system FAT 32). The modulator also supports 128 IP input over UDP and RTP via GE port, with each carrier out channel processing a maximum of 32 IP from the GE port (UDP&RTP protocol).
The FMUSER DTV-4647S features MPEG1 Layer II, LC-AAC and HE-AAC audio encoding, AC3 pass-through, and audio gain adjustment.
In addition, the DTV-4647S supports 12ch DVB-C RF out (8ch/16ch DVB-T, 8ch ATSC, or 6ch/16ch ISDB-T out for option, as per order). It also supports 1 ASI out as a mirror of one of RF output carriers (optional) and MPTS IP output over UDP, RTP/RTSP. The modulator supports logo, caption, and QR code insertion (Language Supported: Chinese, English, for more languages please consult us…), PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting, and control via web management, with easy updates via the web.
Overall, the DTV-4647S is a reliable and efficient solution for encoding, multiplexing, and modulation functions. Its advanced features and ease of use make it an excellent choice for broadcasting and other related applications.

Principle Chart :

S pecification :

Input	8/16/24 HD inputs for option (or 8HD+8DVB-S2/S2X inputs, or 8HD+16DVB-S2/S2X inputs, or 16HI+8*DVB-S2/S2X inputs) 1 ASI in for re-mux 1 USB Player input for re-mux (“xxx.ts” video) 128 IP input over UDP and RTP, GE port, RJ45
Video (HD Input)	Resolution	Input			1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Output			1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	1Mbps~13Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IP…P (P Frame adjustment, without B Frame )
Audio (HD Input)	Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
	MPEG-1 Layer 2 Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	HE-AAC Bit-rate	48/56/64/80/96/112/128 kbps
Tuner Section	DVB-S	Input Frequency		950-2150MHz
		Symbol Rate		0.5~45 Msps
		Constellation		QPSK
		FEC		1/2, 2/3, 3/4, 5/6, 7/8
	DVB-S2	Input Frequency		950-2150MHz
		Symbol Rate		QPSK/8PSK/16APSK: 0.5~45 Msps 32APSK:0.5~40 Msps
		Constellation		QPSK/8PSK/16APSK/32APSK
		FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9
		Max input bitrate per tuner		≤170 Mbps
	DVB-S2X	Symbol Rate		QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK/32APSK: 0.5~40 Msps
		Constellation		QPSK/8PSK/16APSK/8APSK/32APSK
		FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
		Max input bitrate per tuner		≤170 Mbps
	Signal Strength	-65 ~ -25dBm
Multiplexing	Maximum PID Remapping	255 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Modulation	DVB-C	QAM Channel			12 non-adjacent carriers output (maximum bandwidth 192MHz)
		Standard			EN300 429/ITU-T J.83A/B
		MER			≥40db
		RF frequency			50~960MHz, 1KHz step
		RF output level			-20~+3dbm, 0.1db step
		Symbol Rate			5.0Msps~7.0Msps, 1ksps stepping
					J.83A	J.83B
		Constellation			16/32/64/128/256QAM	64/256 QAM
		Bandwidth			8M	6M
	DVB-T	Standard			EN300744
		FFT mode			2K,4K, 8K
		Bandwidth			6M, 7M, 8M
		Constellation			QPSK, 16QAM, 64QAM
		Guard Interval			1/4, 1/8, 1/16, 1/32
		FEC			1/2, 2/3, 3/4, 5/6, 7/8
		MER			≥42 dB
		RF frequency			50~960MHz, 1KHz step
		RF out			8 (or 16) non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20~ +3dBm, 0.1db step
	ATSC	Standard			ATSC A/53
		Bandwidth			6M
		Constellation			8VSB
		FEC			RS(208 188)+Trellis
		MER			≥40dB
		ACL			-55 dBc
		RF frequency			50~960MHz, 1KHz step
		RF out			8 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20~+3dbm (for all carriers), 0.5db stepping
	ISDB-T	Standard			ARIB STD-B31
		Bandwidth			6M
		Constellation			QPSK, 16QAM, 64QAM
		Guard Interval			1/32, 1/16, 1/8, 1/4
		Transmission Mode			2K, 4K, 8K
		Code rate			1/2, 2/3, 3/4, 5/6, 7/8
		MER			≥40dB
		RF frequency			50~960MHz, 1KHz step
		RF out			6 (or 16) non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level			-20dBm~+3dBm, 0.1dB stepping
Stream output	1 ASI output as mirror of one of RF output carriers (Optional) 12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 8/16 MPTS output over UDP and RTP/RTSP as mirror of 8/16 DVB-T carriers(Optional) 8 MPTS output over UDP and RTP/RTSP as mirror of 8 ATSC carriers(Optional) 6/16 MPTS output over UDP and RTP/RTSP as mirror of 6/16 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface, GE port
System function	Network management (WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×328mm×44mm
	Environment		0~45℃(work);-20~80℃(Storage)
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Purchase list:

Input Section:

	HD	DVB-S2/S2X
Option 1	8	/
Option 2	16	/
Option 3	24	/
Option 4	8	8
Option 5	8	16
Option 6	16	8

Output Section:

RF output standard		IP output	RF carrier channels	Scrambling
DVB-C out		12	12	N/A
DVB-T out	V1	8	8	N/A
DVB-T out	V2	16	16	N/A
ATSC out		8	8	N/A
ISDB-T out	V1	6	6	N/A
ISDB-T out	V2	16	16	N/A
