Quick Details
-
Brand Name:
-
BMS
-
Voltage:
-
380-415V/50HZ 3Phase
-
Power:
-
5.5KW+3KW
-
Dimension(L*W*H):
-
85000*1500*1200
-
Weight:
-
8.5 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working material:
-
galvanized sheet(GI),cold roll steel(CRC)
-
Thickness:
-
0.27mm and 0.32mm
-
Yield strength:
-
245-550Mpa
-
Decoiler:
-
Manual/Hydraulic for options
-
Side wall thickness:
-
18mm
-
Shaft:
-
75mm/85mm
-
Forming station:
-
18 steps
-
Cutter material:
-
Cr12Mov, Heat treatment
Quick Details
-
Work Pressure:
-
245---550Mpa
-
Production Capacity:
-
12-18m/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BMS
-
Voltage:
-
380-415V/50HZ 3Phase
-
Power:
-
5.5KW+3KW
-
Dimension(L*W*H):
-
85000*1500*1200
-
Weight:
-
8.5 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working material:
-
galvanized sheet(GI),cold roll steel(CRC)
-
Thickness:
-
0.27mm and 0.32mm
-
Yield strength:
-
245-550Mpa
-
Decoiler:
-
Manual/Hydraulic for options
-
Side wall thickness:
-
18mm
-
Shaft:
-
75mm/85mm
-
Forming station:
-
18 steps
-
Cutter material:
-
Cr12Mov, Heat treatment
Product Description

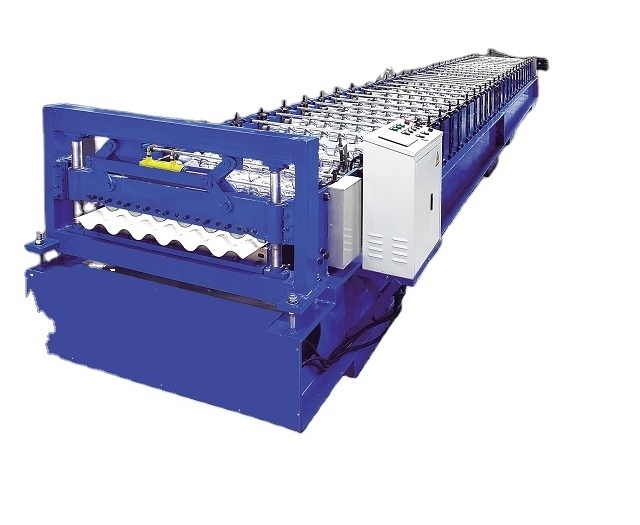

Corrugated Roll Forming Machinery YX17.5-75-825
1.Main features of YX17.5-75-825 Corrugated panel roll forming machine
The advantages of YX17.5-75-825 Corrugated roof panel forming machine are as follows:
1.Products widely used in modern factory,such as workshop,4S auto shop,
is a new popular roof panel.
2.Easy operation, low maintenance cost
2.Detailed Images of YX17.5-75-825 Corrugated forming machinery
Machine Parts
1) YX17.5-75-825 Corrugated roof panel forming machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
With black treatment or Hard-Chrome Coating for options.
With feeding material guide,Body framemade from 300# H type steel by welding
2) YX17.5-75-825 Corrugated roof panel machine pre-cutter
Brand: BMS Original: China
Avoid wasting material,easy to operate.
3) YX17.5-75-825 Corrugated roof panel machine post cutter
Brand: BMS Original: China
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12, Heat treatment
4) YX17.5-75-825 Corrugated roof panel machine control cabinet
Brand: BMS Original: China
5 ) YX17.5-75-825 Corrugated roof panel machine decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1000mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
With 6 tons hydraulic decoiler for option
5) YX17.5-75-825 corrugated roll forming machinery exit rack
Brand: BMS Original: China
Un-powered,three units
Other details of YX17.5-75-825 corrugated roll forming machinery
Suitable for material with thickness 0.4-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 19 rollers to form
Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min
PLC Control System (Touch screenbrand: German Siemens/Schneider Electric/Taiwan WEINVIEW,
Inverter brand: German Siemens/Schneider Electric/Taiwan WEINVIEW, ,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of YX17.5-75-825 Corrugated roll forming machinery
1. The warranty of purlin roll forming machine YX17.5-75-825 Corrugated roof panel machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia,
Zimbabwe, Nigeria,etc.
Certifications of Automatic Change Size C Purlin Roll Forming Machine
