Quick Details
-
Spindle Taper:
-
7:24 ISO50
-
Range of Spindle Speed(r.p.m):
-
320 - 2400 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMEWAY
-
Model Number:
-
US320H
-
Table Travel (mm):
-
320x1325
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
4
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
2294x1770x1780
-
Weight (KG):
-
2900
-
Marketing Type:
-
New Product
-
CNC or Not:
-
Normal
-
Product name:
-
Metal Milling Machine
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Milling Cutting
-
Application:
-
Metal Machining
-
Table size:
-
320x1325
-
Color:
-
Opitional
-
Precision:
-
High Precision
-
Usage:
-
Metal Parts Machining
-
Spindle Speed:
-
60-1750 (12) RPM
Quick Details
-
Table Travel (X) (mm):
-
700
-
Table Travel (Y) (mm):
-
255
-
Table Travel (Z) (mm):
-
320
-
Spindle Taper:
-
7:24 ISO50
-
Range of Spindle Speed(r.p.m):
-
320 - 2400 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMEWAY
-
Model Number:
-
US320H
-
Table Travel (mm):
-
320x1325
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
4
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
2294x1770x1780
-
Weight (KG):
-
2900
-
Marketing Type:
-
New Product
-
CNC or Not:
-
Normal
-
Product name:
-
Metal Milling Machine
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Milling Cutting
-
Application:
-
Metal Machining
-
Table size:
-
320x1325
-
Color:
-
Opitional
-
Precision:
-
High Precision
-
Usage:
-
Metal Parts Machining
-
Spindle Speed:
-
60-1750 (12) RPM
Products Description

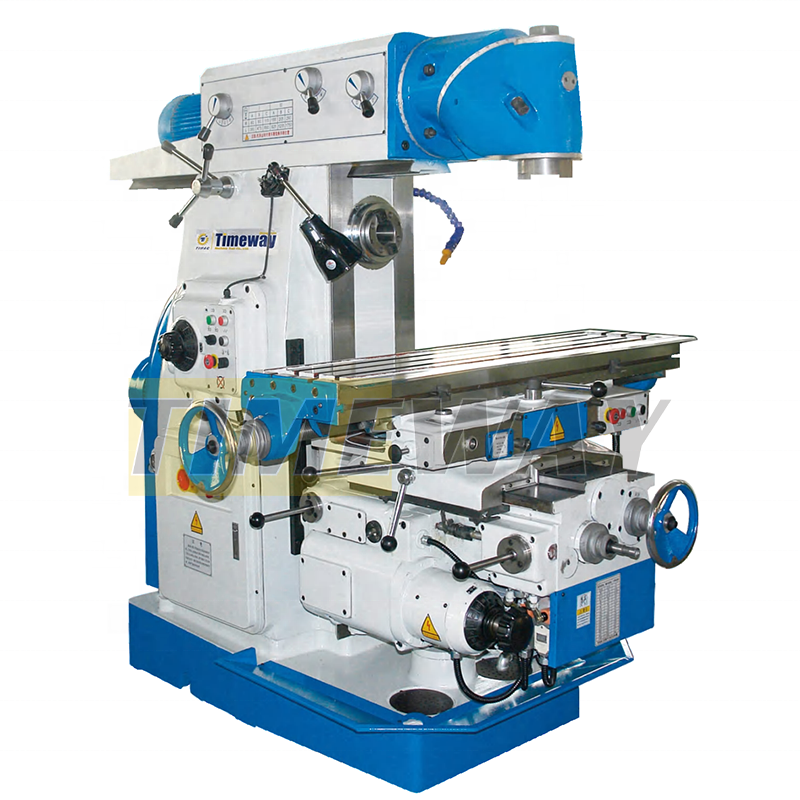

US320H
S
wivel Head
Knee-type Milling Machine
:
|
Specification
|
|
Unit
|
US320H
|
|
|
Worktable size
|
|
mm
|
320x1325
|
|
|
T-slot(NxWxD)
|
|
mm
|
3/18/70
|
|
|
Distance from vertical spindle nose to table
|
|
mm
|
190-510
|
|
|
Longitudinal travel(X)
|
|
mm
|
700
|
|
|
Cross travel(Y)
|
|
mm
|
255
|
|
|
Vertical travel(Z)
|
|
mm
|
320
|
|
|
X/Y/Z-axis rapid feed speed
|
|
mm/min
|
2300/2300/770
|
|
|
Feed speed range(X)
|
|
mm/min
|
23.5-1180 (18)
|
|
|
Feed speed range(Y)
|
|
mm/min
|
23.5-1180 (18)
|
|
|
Feed speed range(Z)
|
|
mm/min
|
8-394 (18)
|
|
|
Mill head swivel angle
|
|
°
|
360
|
|
|
Worktable swivel angle
|
|
°
|
45
|
|
|
Main motor power
|
|
kw
|
4
|
|
|
Dimensions (LxWxH)
|
|
mm
|
2294x1770x1780
|
|
|
Machine Weight
|
|
kg
|
2900
|
|
