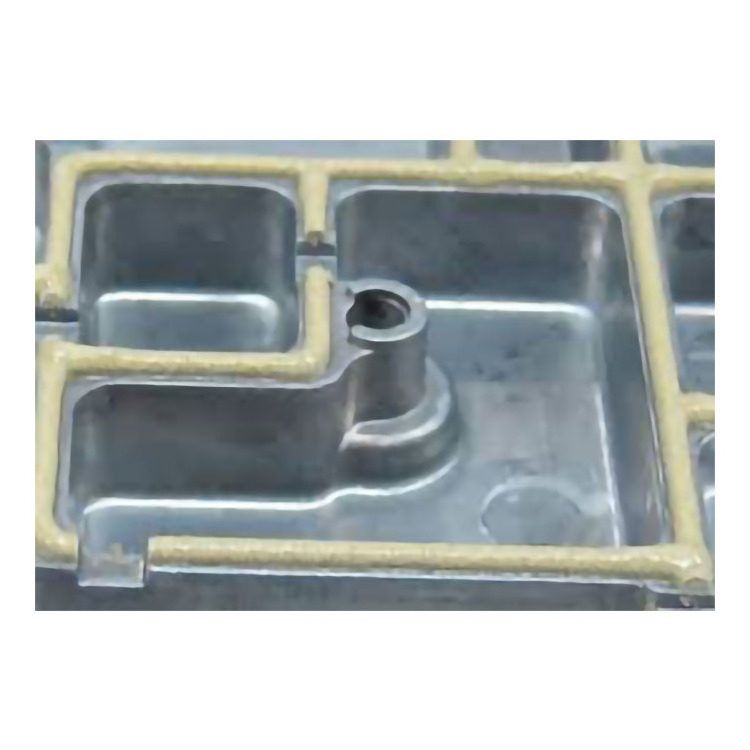

The conductive Form-In-Place material with Ultrasoft has
great compression and excellent conductivity. This will reduce
mechanical requirements and is ideal for most application. It offers enhanced galvanic corrosion resistance and stability in severe environments.
- Product Details
- {{item.text}}
Quick Details
-
Adhesion on Al metal:
-
>80N/cm2
-
Hardness:
-
40Shore A
-
Tensile Strength:
-
120psi
-
Elongation:
-
100%
-
Temperature Range:
-
-45 to 150°C
-
Tear Strength:
-
30lb/in
-
Compression Set:
-
25%
-
Cure System:
-
Thermal
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
conductive form-in-place gasket
-
Specific Gravity:
-
2.0g/cm3
-
Adhesion on Al metal:
-
>80N/cm2
-
Hardness:
-
40Shore A
-
Tensile Strength:
-
120psi
-
Elongation:
-
100%
-
Temperature Range:
-
-45 to 150°C
-
Tear Strength:
-
30lb/in
-
Compression Set:
-
25%
-
Cure System:
-
Thermal
Product Description
|
Product Name
|
conductive form-in-place gasket
|
|
Material
|
silicone
|
|
Feature
|
Extremely soft gasket profile in Ni/Cr filled family; Less compressionforce required; More than 100dB shielding effectiveness from 200MHz to 10GHz with a small gasket bead; Accuracy for gasket location within 0.001" (0.025 mm); More than 80 Newtons/cm² shear adhesion on common housing substrates and coatings
|
|
Applications
|
cellular phones, PDAs, PC cards, telecom base stations,and many other cast or plastic enclosures
|
-
conductive form-in-place gasket
Company Introduction
Suzhou konlida precision Electronic Co.,LTD,established in 2006,is a professional manufacturer eneaged in the research,
development,production,sale and service of EMI,thermal management precision die cutting,precision machining products. As a high-tech company certified by ISO9001,
ISO13485,
AS9100D,konlida members always dedicated to provide strict quality control and thoughtful service to all of our customers in 3C electronics,medical,automotive,aerospace and other industries.Our company has set up our own material R&D center,we have the ability to provide the customers from the solution to the material selection and from the implementation of the manufacturing process to the related reliability performation test.
Packing&Shipping
FAQ
Q1:Can I get free samples?
A:Yes,we are so glad to provide you with free samples.
A:Yes,we are so glad to provide you with free samples.
Q2: Is there any discount?
A:Yes,for larger quantity,we always offer better price.
A:Yes,for larger quantity,we always offer better price.
Q3:How to place order and make payment?
A:We are willing to accept your purchase order or a simple information by email or by TradeManager,
A:We are willing to accept your purchase order or a simple information by email or by TradeManager,
and we will send you proforma invoice with our bank details Paypal and L/C for your confirmation,
then you can make payment accordingly.
Q4:How about the quality guarantee?
A:We will make 100% inspection before packing and delivery.If there is any quality problems, we will take responsibility for it.
A:We will make 100% inspection before packing and delivery.If there is any quality problems, we will take responsibility for it.
