2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould
2ton 3 ton 5 ton portable electric hoist for lifting mould

2ton 3 ton 5 ton portable electric hoist for lifting mould

FOB Reference Price: Get Latest Price
≥1 Sets
US $600
≥10 Sets
US $400
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Lift Speed:
8m/min 7m/min 3.5m/min
Marketing Type:
Hot Product 2023
Weight (KG):
646 kg
Type:
single speed electric hoist
Classification grade:
M3
Traversing speed:
20 (m/min)
Steel wire diameter:
0.22 or 0.34(mm)
Color:
Green Blue
Voltage:
AC 220/380v 50Hz
Motor:
Three-in-one Motor
Material:
Q345B
Main electrical parts:
Schneider Brand
Steel wire rope:
High strenght type

Quick Details

Warranty:
1.5 years
Place of Origin:
Henan, China
Brand Name:
Kuangyuan
Lift Speed:
8m/min 7m/min 3.5m/min
Marketing Type:
Hot Product 2023
Weight (KG):
646 kg
Type:
single speed electric hoist
Classification grade:
M3
Traversing speed:
20 (m/min)
Steel wire diameter:
0.22 or 0.34(mm)
Color:
Green Blue
Voltage:
AC 220/380v 50Hz
Motor:
Three-in-one Motor
Material:
Q345B
Main electrical parts:
Schneider Brand
Steel wire rope:
High strenght type


2ton 3 ton 5 ton portable electric hoist for lifting mould
PRODUCT SERIES
PRODUCT OVERVIEW
2ton 3 ton 5 ton portable electric hoist for lifting mould

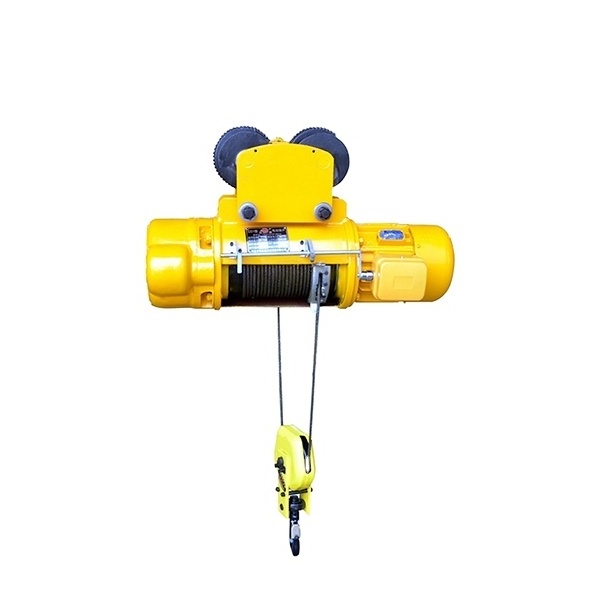

A wire rope electric hoist is a versatile lifting device commonly used in various industries for lifting and moving heavy loads.It combines the strength of wire ropes with the convenience of electric power, making it an efficient and reliable tool for material handling. This type of hoist is widely utilized in construction sites, manufacturing plants, warehouses, and other settings where heavy objects need to be lifted, lowered, or moved horizontally.
Wire rope electric hoists offer several advantages, including:
* High Lifting Capacity: These hoists are designed to lift heavy loads, making them suitable for a wide range of industrial applications.
* Precise Control: The electric motor and control systems allow for precise control over lifting and lowering movements, enabling operators to handle delicate maneuvers with accuracy.
* Efficiency: Electric hoists require less manual effort compared to manual or chain hoists, increasing productivity and reducing operator fatigue.
* Versatility: They can be used for vertical lifting as well as horizontal movement of loads along a beam or track.
* Safety Features: Many wire rope electric hoists are equipped with safety features such as overload protection and emergency stop mechanisms to ensure safe operation.
PRODUCT CONFIGURATION
PRODUCT SPECIFICATIONS
Technical Parameters for CD1 Electric Wire Rope Hoist








Lifting capacity
Ton
0.5
1
2
3
5
10
16
Lifting speed
m/min
8
8
8
8
8
7
3.5
Lifting height
m
6 / 9 / 12
6/9/12/18/24/30



9/12/18/24/30

Running speed
m/min
20
20
20
20
20
20
18
Min. radius of curvature
m
1.8 / 2
2 / 2.5 / 3.0




3.5 / 4 / 9
Power supply
V
380V 50Hz 3Phase






Rail I-beam model
/
16-28b
16-28b
20a-32c
20a-32c
25a-45c
32b-63c
45a-63c
PRODUCT SITE
Henan mining Crane Co., Ltd. (hereinafter referred to as "Henan mining] was established in 2002, covering an area of 1.62 million square meters, with more than 4700 employees. Since its establishment 20 years ago.the company has been advocating the development concept of reform and innovation,pursuing excellence intelligent manufacturing. green and efficient, adhering to the continuous reform of technology, process, equipment products and services, promoting the upgrading and transformation of the industry to automation, intelligence and formalization, and providing customers with all round services. At present, the company's products have achieved remarkable results in more than 50 professional fields, such as aerospace, military science and technology  automobiles and ships, food and chemical industry, metal processing, steel smelting machinery manufacturing and waste incineration treatment.The products cower more than 80 countries and regions and serve more than 6000 medium and high-end customers worldwide.

PRODUCT PACKING
1. 1.5 years warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2. Two years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
CONTACT US
Q. What's the information should I provide when inquiry? More details or drawings, better. Lift capacity ? lift height  ? power source or other specials you give us will be more appreciated ? Q.What makes you different from other manufacturers ? We believe our service department has the experience and knowledge to safely service your overhead cranes,gantry cranes,port crane and hoists .We have trained service technicians who will be able to get your material handling equipment up and running ,and have been providing our customer’s an effective service solution . Q. Can this type work in hazardous environment? Sure! We can customize for you, acid proof or explosion proof, no problem for that. Q. Can you provide the serious lifting tools? Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! Q:The space of my workshop is limited, can the hoist ok for mine? Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
