Quick Details
-
Voltage:
-
as your request
-
Application:
-
factory
-
Weight (KG):
-
700 KG
-
Max.Cutting Height at 90°(mm):
-
85mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
1500mm
-
Applicable Industries:
-
woodworking
-
Sliding Table Size:
-
1500*381mm
-
Max.Extent height of main saw blade:
-
80mm
-
Saw group titled angle:
-
0-45°
-
Main diameter:
-
250-300mm
-
Main spindle rotation speed:
-
4000/5600r.p.m.
-
Scoring diam:
-
120mm
-
Scoring blade rpm:
-
8000r.p.m
-
Scoring motor:
-
0.75kw
-
Weight:
-
780kg
-
Power:
-
5.5+1.1kw
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZhongDing Sliding Table Saw
-
Usage:
-
woodworking
-
Voltage:
-
as your request
-
Application:
-
factory
-
Weight (KG):
-
700 KG
-
Max.Cutting Height at 90°(mm):
-
85mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
1500mm
-
Applicable Industries:
-
woodworking
-
Sliding Table Size:
-
1500*381mm
-
Max.Extent height of main saw blade:
-
80mm
-
Saw group titled angle:
-
0-45°
-
Main diameter:
-
250-300mm
-
Main spindle rotation speed:
-
4000/5600r.p.m.
-
Scoring diam:
-
120mm
-
Scoring blade rpm:
-
8000r.p.m
-
Scoring motor:
-
0.75kw
-
Weight:
-
780kg
-
Power:
-
5.5+1.1kw
firewood cutting machine
1.Advantages
1).Apply to processing all kinds of density boards, shaving boards, wood-Based Panels , ABS Panels, PVC Panels , Organic glass plates and solid wood and others with wood structure and similar hardness.
2).Movable table Guide Track is plating chromium steel balls structure, exact and durable.
3).Made of high-strength extruded aluminum alloy , movable table is high in strength and won’t bend.
4).With oxidation treatment , movable table surface is beautiful and hardwearing.
5).Tilt angles of main and scoring saw blades are displayed directly by precision Digital Readout.
2.Technical specifications
| Sliding Table | 1500-3800mm |
| Max.Extent height of main saw blade | 80mm |
| Saw group titled angle | 0-45° |
| Main diameter | Φ250-300mm |
| Main spindle rotation speed | 4000/5600r.p.m |
| Main saw motor power | 3-5.5kw |
| Scoring diam | Φ120mm |
| Scoring blade rpm | 8000r.p.m |
| Scoring motor | 0.75kw |

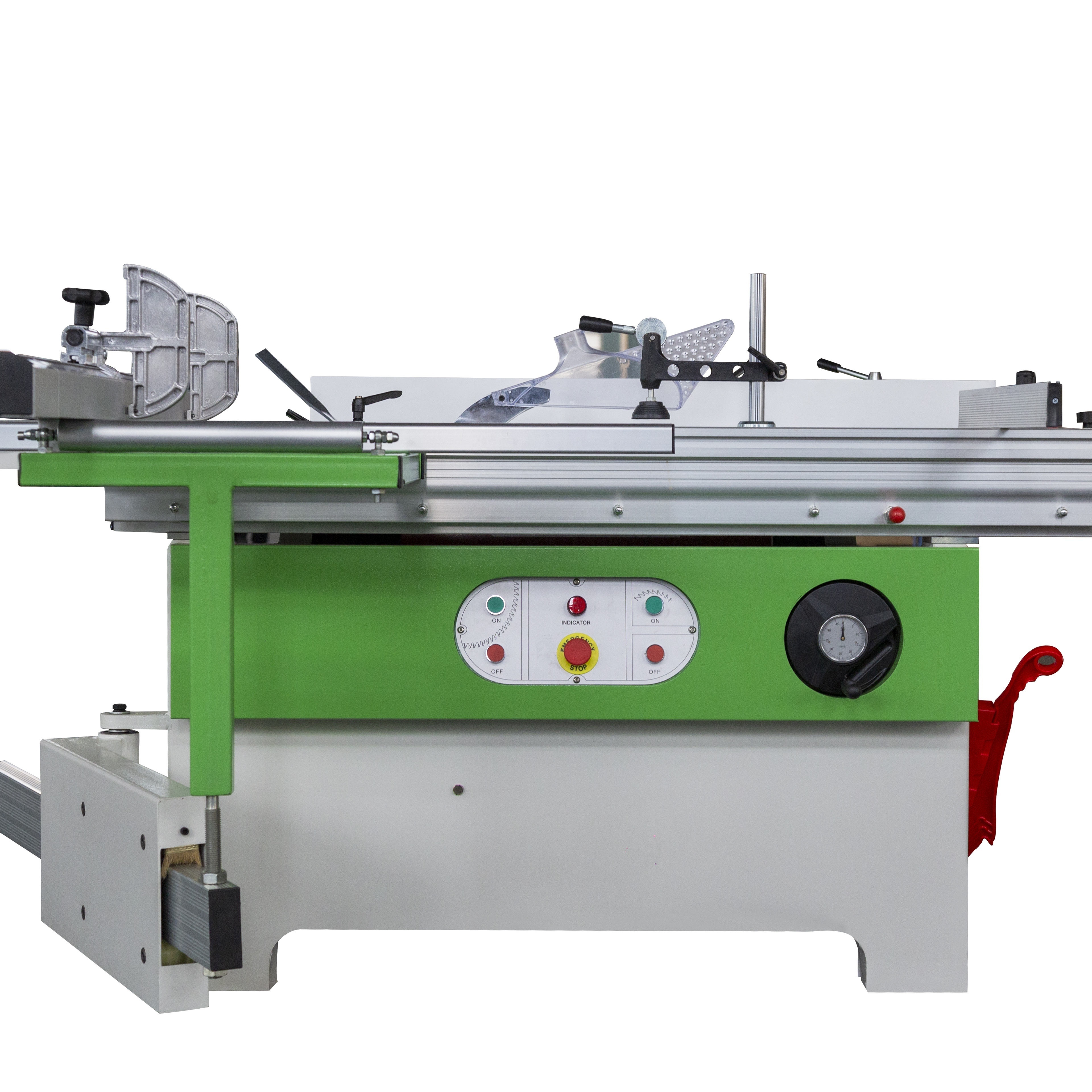

3. Pictures
4. Functions&Characteristics:
- Heavy-duty saw carriage securely seated in large cast-iron cradle for maximum support
- Heavy-duty cross cut fence with quick release
- Easy-glide sliding table
- Handwheel adjustment to the height of the blade
- Handwheel adjustment to the tilting of the blades
- Manual adjustments for the scorer
- Blade tilting angle show by simple index
- Simple overhead saw guard
- Manual scoring saw +/- direction adjustment
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
