Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
supertech
-
Voltage:
-
AC380V 50Hz
-
Dimension(L*W*H):
-
5*1.6*1.3m
-
Weight:
-
2000 kg
-
PLC Brand:
-
other
-
Product name:
-
Digital Paper Collator Machine Automatic Collating and Folding Machine
-
Paper Weight:
-
45-400g
-
Paper Size:
-
240*350mm (other size can be customized)
-
Paper feeding method:
-
Automatic lifting
-
Min. collating size:
-
200*100mm
-
Collating speed:
-
1800-2000 sets/hour
-
Machine color:
-
White & blue/ black & white (other color can be customized)
-
Material:
-
Paper sheets
-
Paper collating method:
-
Vibration
-
Collating pages:
-
12 pages (other pages can be customized )
Quick Details
-
Type:
-
Binding Machine
-
Production Capacity:
-
1800-2000 sets/hour
-
Max. workable width:
-
350mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
supertech
-
Voltage:
-
AC380V 50Hz
-
Dimension(L*W*H):
-
5*1.6*1.3m
-
Weight:
-
2000 kg
-
PLC Brand:
-
other
-
Product name:
-
Digital Paper Collator Machine Automatic Collating and Folding Machine
-
Paper Weight:
-
45-400g
-
Paper Size:
-
240*350mm (other size can be customized)
-
Paper feeding method:
-
Automatic lifting
-
Min. collating size:
-
200*100mm
-
Collating speed:
-
1800-2000 sets/hour
-
Machine color:
-
White & blue/ black & white (other color can be customized)
-
Material:
-
Paper sheets
-
Paper collating method:
-
Vibration
-
Collating pages:
-
12 pages (other pages can be customized )
Products Description

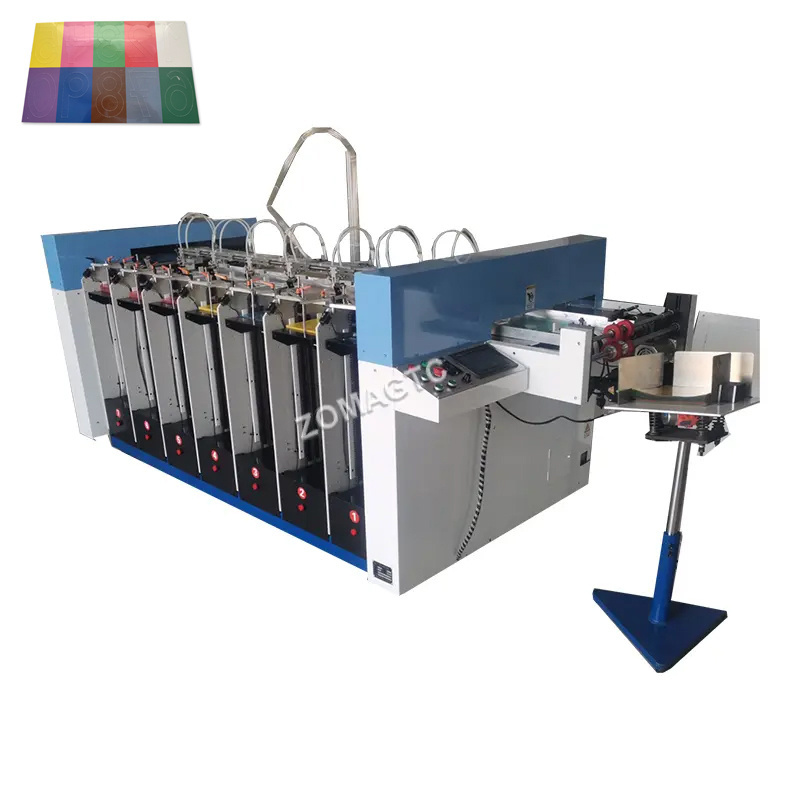

High speed automatic paper collator machine 4-24 joints newspaper calendar horizon paper collating gathering machine
|
Collating speed
|
1800-2000 sets/hour
|
|
Collating pages
|
4-24 pages ( pages can be customized )
|
|
Max. Collating size
|
240*350mm (other size can be customized)
|
|
Min. collating size
|
200*100mm
|
|
Paper thickness
|
45-400g
|
|
Paper feeding method
|
Automatic lifting
|
|
Machine color
|
White & blue/ black & white (other color can be customized)
|
|
Material
|
Paper sheets, Film
|
|
Paper collating method
|
Vibration
|
|
Worm wheel reduction drive
|
WPKs40 *1 piece
|
|
Servo motor
|
1.5KW *1 piece
|
|
Paper lifting motor
|
90w * 12 pcs
|
|
Paper pickup roller
|
90w speed adjustable * 1 piece
|
|
Vibration motor
|
60w* 1 piece
|
|
Air pump
|
80Mpa*1 piece
|
|
Detection electric eye
|
Ultrasound * 12pcs
|
|
1
|
It can be customized to more pages without effect the collating speed.
|
|
2
|
Advanced PLC touch screen control.
|
|
3
|
Paper feeding in vertical and paper carried in horizontal by accurate timing belt conveying device. Paper are collected by vibration to ensure the tidiness of final collated pages.
|
|
4
|
Equipped with highly advanced paper detection device such the missing page can be automatically filled, double sheet alarm device etc
|
|
5
|
The folding and stitching part is optional
|
The model is mainly aimed at single sheets, which are suitable for a wide range of paper sizes, including calendars, single sheets(with numbers), magazines, brochures, pamphlets, peritoneal paper, carbon-free paper, wallpaper, writing paper, card paper, Bovine paper, PP plastic paper, folding test paper, etc.
The surface of the paper does not touch other parts during the layout process, and there will be no dragging phenomenon.
* Products that have been collated pages
.
