Quick Details
-
Model Number:
-
TM1103H
-
Weight:
-
7.4kgs
-
Product name:
-
1kva 2kva 3kva 6kva 10kva tower online uninterruptible power supply
-
Capacity:
-
3kva /2.7kW
-
Input voltage:
-
110~300Vac
-
Certification:
-
ISO9001/ISO14001/CE/ROHS
-
Output:
-
208v/220v/230v/240v
-
HS CODE:
-
8504402000
-
Wave Form:
-
Pure Sinewave
-
Power factor:
-
0.9
-
Battery Voltage:
-
98Vdc
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iTeaQ Power/ OEM/ ODM, iTeaQ Power
-
Model Number:
-
TM1103H
-
Weight:
-
7.4kgs
-
Product name:
-
1kva 2kva 3kva 6kva 10kva tower online uninterruptible power supply
-
Capacity:
-
3kva /2.7kW
-
Input voltage:
-
110~300Vac
-
Certification:
-
ISO9001/ISO14001/CE/ROHS
-
Output:
-
208v/220v/230v/240v
-
HS CODE:
-
8504402000
-
Wave Form:
-
Pure Sinewave
-
Power factor:
-
0.9
-
Battery Voltage:
-
98Vdc
Product Description
Introduction:

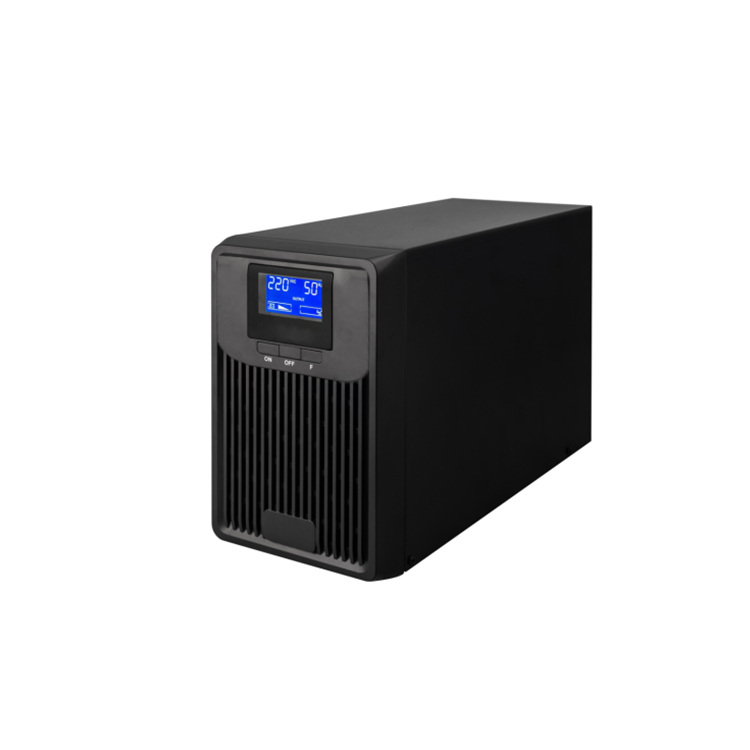

TM11/RM11 1-10kVA is based on online double conversion technology, which is an ideal power supply solution for small-capacity scenarios and can completely eliminate all kinds of grid problems. It covers the capacity range of 1-10KVA, tower or rack installation.
Scenarios:
Small and medium enterprises, branches of large enterprises, bank branch networks, large supermarkets, homes, offices and other AC power supply scenarios.
Features:
1.Wide input voltage range
2.Online double conversion technology
3.DSP digital control technology
4.Output power factor 0.9
5.Communications: RS232/USB/Dry contact card/SNMP option
2.Online double conversion technology
3.DSP digital control technology
4.Output power factor 0.9
5.Communications: RS232/USB/Dry contact card/SNMP option
Benefits:
1.Wide input voltage range adapt to harsh power grid
2.Friendly man-machine interface, easy to operate
3.Intelligent battery management extend battery life
2.Friendly man-machine interface, easy to operate
3.Intelligent battery management extend battery life
Customized Logo 220V Internal Battery 1KVA 2KVA 3KVA 6KVA 10KVA Mini Online UPS Inverter For Computer
Specification
|
Model
|
TM1101
|
TM1102
|
TM1103
|
TM1106
|
TM1110
|
|||||
|
Phase
|
Single phase in and out L+N+PE
|
|
|
|
1 year
|
|||||
|
Capacity
|
1kVA/0.9kW
|
2kVA/1.8kW
|
3kVA/2.7kW
|
6kVA/5.4kW
|
10kVA/9kW
|
|||||
|
INPUT
|
|
|
|
|
|
|||||
|
Nominal Voltage
|
208/220/230/240Vac
|
|
|
|
|
|||||
|
Operating voltage range
|
(90±5)~(300±5)Vac
|
|
|
|
TM1103
|
|||||
|
Operating frequency range
|
50/60Hz±4Hz
|
|
|
|
Single Phase
|
|||||
|
Power factor
|
≥0.99
|
|
|
|
Overcurrent
|
|||||
|
Harmonic distortion (THDi)
|
≤6% (100% linear load)
|
|
|
|
27.5kgS
|
|||||
|
OUTPUT
|
|
|
|
|
On-line
|
|||||
|
Phase
|
L+N+PE
|
|
|
|
|
|||||
|
Wave Form
|
Pure Sine Wave
|
|
|
|
|
|||||
|
Output voltage
|
208/220/230/240Vac
|
|
|
|
iTeaQ Power
|
|||||
|
Power factor
|
0.9
|
|
|
|
3kva /2.7kW
|
|||||
|
Voltage regulation
|
≤±2%
|
|
|
|
110~300Vac
|
|||||
|
Output frequency
|
Utility Mode: follow utility; Battery Mode:(50/60±0.2)Hz
|
|
|
|
ISO9001/ISO14001/CE/ROHS
|
|||||
|
Crest factor
|
3:1
|
|
|
|
208v/220v/230v/240v
|
|||||
|
THD
|
≤4%(100% linear load)
|
|
|
|
8504402000
|
|||||
|
Efficiency(AC)
|
≥90%
|
|
|
95%
|
Pure Sinewave
|
|||||
|
Efficiency(Batt.)
|
≥85%
|
|
|
94.8%
|
0.9
|
|||||
|
Overload
|
AC mode: Load≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms to bypass. Battery mode: Load≤110%, last 1min;
≤130%, last 10s; ≤ |
|
|
AC mode: Load≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 500ms to bypass. Battery mode: Load≤110%, last 10min;
≤130%, last 1min; ≤150%, last 10s; >150%, 500ms to bypass. |
72VDC(6PCS 12V 7ah Lead acid battery)
|
|||||
|
BATTERY
|
|
|
|
|
|
|||||
|
Standard unit QTY
|
2
|
4
|
6
|
16
|
|
|||||
|
Long unit QTY
|
3
|
6
|
8
|
16
|
|
|||||
|
Charge Current
|
1A for standard unit, 5.5A for long unit
|
|
|
1A for standard unit, 4A for long unit
|
|
|||||
|
Transfer Time
|
Utility to Battery : 0ms; Utility to bypass: 4ms
|
|
|
|
|
|||||
|
ENVIRONMENT
|
|
|
|
|
|
|||||
|
Operating temperature
|
0℃～40℃
|
|
|
|
|
|||||
|
Storage temperature
|
-15℃～45℃(no battery)
|
|
|
|
|
|||||
|
Humidity range
|
20～95% (non condensing)
|
|
|
|
|
|||||
|
Altitude
|
< 1000m
|
|
|
|
|
|||||
|
Noise level
|
≤45DdB
|
|
|
|
|
|||||
|
PROTECTION
|
|
|
|
|
|
|||||
|
Alarm
|
overload, utility abnormal, UPS fault, battery low, etc
|
|
|
|
|
|||||
|
Protection
|
short circuit, overload, over temperature, battery low, fan fault alarm
|
|
|
|
|
|||||
|
Communication
|
short circuit, overload, over temperature, battery low, fan fault alarm
|
|
|
|
|
|||||
|
PHYSICAL
|
|
|
|
|
|
|||||
|
Standard Unit
|
|
|
|
|
|
|||||
|
Dimension( D*W*H)mm
|
280x144x230
|
400x144x230
|
425x190x328
|
533x260x560
|
533x260x560
|
|||||
|
Net Weight(kg)
|
7.8
|
13.3
|
23.4
|
55
|
62
|
|||||
|
Long Unit
|
|
|
|
|
|
|||||
|
Dimension( D*W*H)mm
|
280x144x230
|
280x144x230
|
280x144x230
|
425x190x328
|
533x260x501
|
|||||
|
Net Weight(kg)
|
4.2
|
6.4
|
6.5
|
12.2
|
21
|
|||||
|
Standards
|
EN62040-1, EN62040-2
|
|
|
|
|
|||||
Details Images
Various of type sockets optional
Various of type plugs optional
