Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Floor Heating Valve:
-
XPS
-
Material:
-
XPS, XPS, aluminum foil & aluminum panel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCO
-
Model Number:
-
UHP
-
Function:
-
Waterproof, Sound and thermal Insulation
-
Raw material of XPS:
-
Fresh material
-
Thermal conductivity of XPS:
-
0.028~0.036W/(M.K)
-
Characteristics of XPS:
-
Free of CFC and HCFC
-
Compressive Strength:
-
250~300Kpa
-
Color of XPS:
-
Blue
-
Certificate:
-
CE/ISO/Reach
-
Accessories:
-
Aluminum tape, PEX-al-PEX
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Floor Heating Valve:
-
XPS
-
Material:
-
XPS, XPS, aluminum foil & aluminum panel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCO
-
Model Number:
-
UHP
-
Function:
-
Waterproof, Sound and thermal Insulation
-
Raw material of XPS:
-
Fresh material
-
Thermal conductivity of XPS:
-
0.028~0.036W/(M.K)
-
Characteristics of XPS:
-
Free of CFC and HCFC
-
Compressive Strength:
-
250~300Kpa
-
Color of XPS:
-
Blue
-
Certificate:
-
CE/ISO/Reach
-
Accessories:
-
Aluminum tape, PEX-al-PEX
TYCO underfloor heating panel is made by grooved XPS/EPS foam board for heat insulation and covered with aluminum layer for thermal conductivity.
TYCO underfloor heating panel is
1. raw material free of CFC, HCFC, HBCD, approved by REACH and EN13164
2. high compressive strength from 100kpa~600kpa, normally 300kpa (1SQM hold 30tons weight)
3. waterproof, fireproof, soundproof
4. various insulation board thickeness and aluminum layer thickness for differnt budget
5. do small influence to room space
6. dry installation, support DIY cutting
7. quick handle, two women can finish 1000SQM room within two hours
|
Density
|
kg/cbm
|
32~35
|
|
Thermal conductivity, 90days, 10℃
|
w/mk
|
0.027~0.03
|
|
Compressive strength at 10% deflection or yields, (vertical)
|
kpa
|
≥300
|
|
Tensile strength
|
kpa
|
≥300
|
|
Water absorption
|
vol-%
|
≤1%
|
|
Capillarity
|
nil
|
nil
|
|
Coefficinet of linear thermal expansion
|
mm/mk
|
0.07
|
|
Temperature limits
|
℃
|
-50℃~+75℃
|
Grooved XPS laminated with aluminum foil---------better for tile finished floor
|
Item No.
|
Size of the Panel
|
Pipe OD
|
Chanel distance
|
Thickness of AL
|
|
UHP-AL25-16
|
1200*600*25mm
|
16mm
|
150/200mm
|
0.03mm
|
|
UHP-AL30-20
|
1200*600*30mm
|
20/16mm
|
150/200mm
|
0.03mm
|
|
UHP-AL25-16
|
1200*600*25mm
|
16mm
|
150/200mm
|
0.1mm
|
|
UHP-AL30-20
|
1200*600*30mm
|
20/16mm
|
150/200mm
|
0.1mm
|
|
UHP-AL25-16
|
1200*600*25mm
|
16mm
|
150/200mm
|
0.2mm
|
|
UHP-AL30-20
|
1200*600*30mm
|
20/16mm
|
150/200mm
|
0.2mm
|

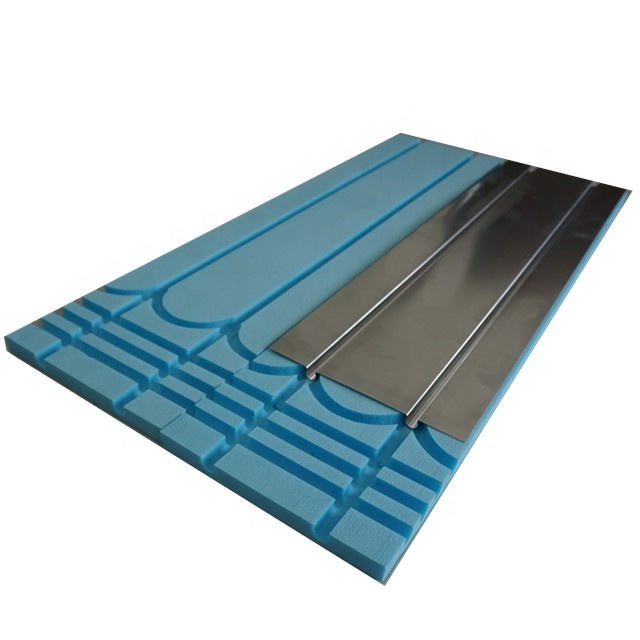

Grooved XPS + aluminum sheet ------------ better for
wood
finished floor
|
Item No.
|
Size of the panel
|
Pipe OD
|
Chanel distance
|
|
UHP25-16
|
1200*600*25mm
|
16mm
|
15/20cm
|
|
UHP30-20
|
1200*600*30mm
|
20mm
|
15/20cm
|
|
AL Sheet
|
1000*390*0.45mm
|
16/20mm
|
15/20cm
|
|
Item No.
|
Size of the Panel
|
Pipe OD
|
Chanel distance
|
Thickness of AL
|
Compressive Strength
|
|
EPS 400-2516-0.2
|
1200*600*20mm
|
16mm
|
150mm
|
0.2mm
|
400kpa
|
|
EPS 400-2516-0.2
|
1200*600*20mm
|
16mm
|
150mm
|
0.1mm
|
400kpa
|
|
EPS 400-2516-0.2
|
1200*600*20mm
|
16mm
|
150mm
|
0.2mm
|
300kpa
|
|
EPS 400-2516-0.2
|
1200*600*20mm
|
16mm
|
150mm
|
0.1mm
|
300kpa
|
|
EPS100
|
1200*600*25/30mm
|
16/20mm
|
150/200mm
|
0.03mm
|
100kpa
|
Application of XPS/EPS Insulation Foam Board with Aluminum Sheet
Underfloor heating panel normally pack by pp bag, 10pcs/bag
Aluminum sheet pack by carton, 40pcs/ctn, finally with pallet
XPS Foam Board
XPS Shower Tray
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.
