Quick Details
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
2200*2100*2300mm
-
Weight (KG):
-
1800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine:
-

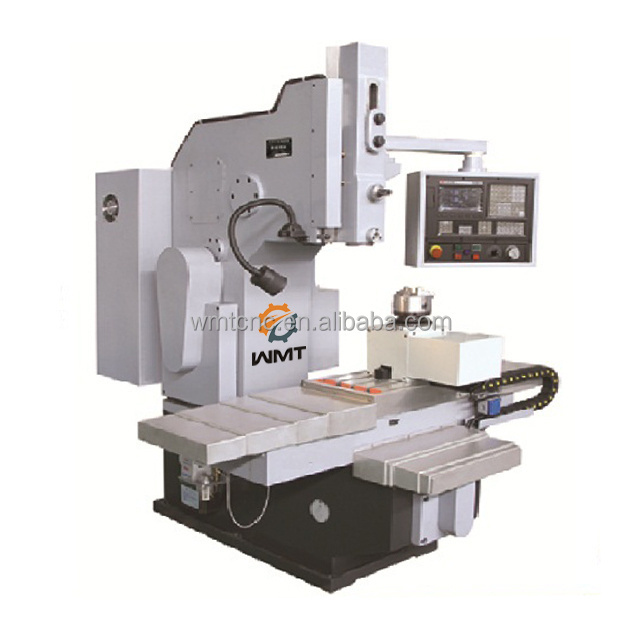

CNC slotting machine
-
X-axis stroke:
-
320mm
-
Worktable size:
-
600*320mm
-
Travel Y-axis:
-
320mm
-
Max.load of worktable:
-
100KG
-
Controller:
-
GSK, Siemens for chosing
-
Gyration angle:
-
360°
-
Color:
-
According to customer's requirment
-
Precision:
-
High Precision High Performance
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
wmtcnc
-
Marketing Type:
-
Hot Product 2022
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
2200*2100*2300mm
-
Weight (KG):
-
1800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine:
-
CNC slotting machine
-
X-axis stroke:
-
320mm
-
Worktable size:
-
600*320mm
-
Travel Y-axis:
-
320mm
-
Max.load of worktable:
-
100KG
-
Controller:
-
GSK, Siemens for chosing
-
Gyration angle:
-
360°
-
Color:
-
According to customer's requirment
-
Precision:
-
High Precision High Performance
Product Description
Main Features for BK1018:
Suitable for key slot, spline, blind hole, internal keyway processing.
Main Features for
B5032/5020
:
1. Three-axis association:
The plunger reciprocates in a vertical straight line with the slider, and the workpiece is processed by intermittent feeding
movement
along the longitudinal,
transverse and circumferential directions.
2. Configuration system:
-The NC system and the fourth axis are configured to realize the bolt function of the special work piece, which greatly improves the application range and processing efficiency of the machine tool.
-Suitable for the processing of key slot and spline in auto parts and aviation plugs.
|
Specification
|
BK5018
|
B5020
|
|
X-axis stroke
|
320mm
|
500mm
|
|
Travel Y-axis
|
320mm
|
500mm
|
|
Max.pin length
|
180mm
|
200mm
|
|
Sleeper movement times
|
20-120min
|
32,50,80,125min
|
|
Main motor power(servo motor)
|
3.7KW
|
3KW
|
|
Workbench size
|
600×320mm
|
500×500mm
|
|
Fast moving speed (X/Y)
|
5/5m/min
|
-
|
|
Gyration angle
|
360°
|
360°
|
|
The distance between the working table and the slippery pillow
|
600mm
|
320mm
|
|
Max.load of worktable
|
100KG
|
120KG
|
|
shape size
|
1980×2046×1817mm
|
1916×1305×1995mm
|
|
Machine tool weight(about)
|
1800KG
|
2200KG
|
|
Package dimensions
|
2200/2100/2300mm
|
2200/1400/2300mm
|
