Quick Details
-
Dimension(L*W*H):
-
Dia0.8m*Length 1m
-
Voltage:
-
220V 380V 400V, 380V/50Hz/3 Phase or customized
-
Power:
-
220-440V Three-phase50-60Hz/ Local Voltage
-
Weight (KG):
-
4000
-
Applicable industries:
-
Farms, Food & Beverage Shops, Charcoal Making Factory
-
Carbonizing time:
-
20-30 minutes
-
Raw matercial:
-
Wood logs, sawdust, rice husk and ect
-
Output product temperature:
-
50℃
-
Carbonizing rate:
-
30-35%
-
Pre-heating fuel:
-
Coal Gas/LPG/natural gas/Diesel
-
Temperature control:
-
900-1000 degrees
-
Max temperature:
-
1700c(Maximum Customize Temperature)
-
Furnace control method:
-
Temperature controller or touch Screen Control or PLC Control
-
Working temperature:
-
Depends on Customer Requirements
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Hengtailong - Activated Carbon Furnaces
-
Effective Volume:
-
3CBM
-
Dimension(L*W*H):
-
Dia0.8m*Length 1m
-
Voltage:
-
220V 380V 400V, 380V/50Hz/3 Phase or customized
-
Power:
-
220-440V Three-phase50-60Hz/ Local Voltage
-
Weight (KG):
-
4000
-
Applicable industries:
-
Farms, Food & Beverage Shops, Charcoal Making Factory
-
Carbonizing time:
-
20-30 minutes
-
Raw matercial:
-
Wood logs, sawdust, rice husk and ect
-
Output product temperature:
-
50℃
-
Carbonizing rate:
-
30-35%
-
Pre-heating fuel:
-
Coal Gas/LPG/natural gas/Diesel
-
Temperature control:
-
900-1000 degrees
-
Max temperature:
-
1700c(Maximum Customize Temperature)
-
Furnace control method:
-
Temperature controller or touch Screen Control or PLC Control
-
Working temperature:
-
Depends on Customer Requirements
Product Description

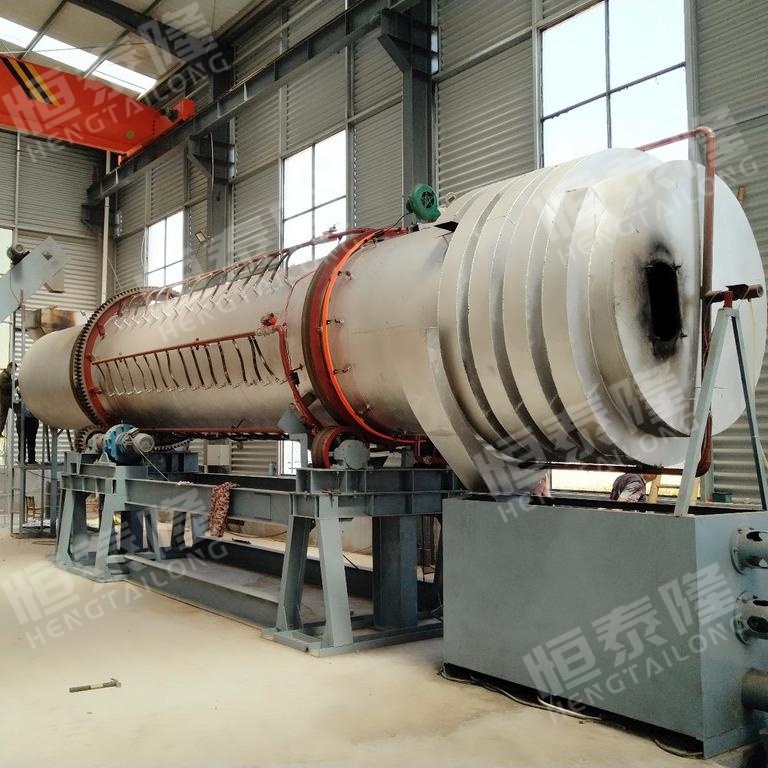

Best quality horizontal activated coconut shell charcoal carbonization kiln furnace sawdust continuous furnace machine
Hengtailong
activation regeneration kiln furnace refers to the physical or chemical method to remove the absorbate absorbed on activated carbon without destroying the original structure of activated carbon. During the regeneration process, activation and absorption performance of wasted active carbon can be recovered, which can reach to reutilization purpose.
At present, active carbon are widely applied in the field of sewage treatment and water purification disposal.
Hengtailong
activation regeneration kiln furnace mainly adopts coal charcoal, wood charcoal, bamboo charcoal, coconut shell charcoal, fruit shell charcoal and straw charcoal as regeneration source.
|
Material
|
Aluminum Fiberboard(Refractory materials) + Sic&Mosi2 (Heating elements)+Mullite bricks
|
|
Loading Capacity
|
Stanard 3-5 Ton (Special requirements can be customize)
|
|
Platform Moving Method
|
Electric drive
|
|
Tube Diameter
|
Less then 1200mm
|
|
Heating zone length
|
Depends on customer requirements
|
|
Package
|
Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods.
|
|
Remark
|
Part of the function and description are not listed, if the customer is interested, you can write to inquire at any time.
|
Working Principle
Our production line produces high quality activated carbon
|
NO.
|
Main technical parameters
|
Model-A
|
Model-B
|
|
|
1
|
Type
|
Dry Distillation
|
|
|
|
2
|
Volta ge
|
380 V
|
|
|
|
3
|
Power
|
3 +3+3KW
|
5.5 +4+ 4KW
|
|
|
4
|
Capacity
|
600-800kg/h
|
1000-1500kg/h
|
|
|
5
|
Weight of the Main Machine
|
3.5MT
|
6 MT
|
|
|
6
|
Weight of the Whole Production Line
|
8.5 MT
|
12MT
|
|
|
7
|
Diameter of raw material
|
30mm MAX
|
|
|
|
8
|
Working continuously
|
24H
|
|
|
|
9
|
Dimension of the Main Machine(Dia*L)
|
1.0 x 10m
|
1.5 x 12m
|
|
|
10
|
Inner Furnace Temperature
|
350-500C
|
|
|
|
11
|
Carbonized Pipeline Temperature
|
500-700C
|
|
|
|
12
|
Effective Volume
|
7M3
|
10M3
|
|
Product Application
--Biomass( from urban garbage sorting) carbonization;
--Stem/cell of agriculture plants carbonization: palm leaf/shell, rice husk, cocoanut shell and etc;
--Industry papermaking scrap carbinization ;
--Municipal sludge treatment ;
--Soil improvement.
--Stem/cell of agriculture plants carbonization: palm leaf/shell, rice husk, cocoanut shell and etc;
--Industry papermaking scrap carbinization ;
--Municipal sludge treatment ;
--Soil improvement.
Detailed Images
About Hengtailong
Our Services
Before-sale services
:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:
Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
