With wall scrapers to make better mixing efficiency
Inner layer is 316 stainless steel
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
200 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyang
-
Voltage:
-
220V
-
Power (kW):
-
1.5 kW
-
Marketing Type:
-
New Product 2021
-
Usage:
-
liquid detergent processing
-
Function:
-
mixing and heating
-
Product name:
-
liquid washing mixing machine
-
Application scope:
-
Daily chemical food
-
Heating method:
-
Electric Steam Heating
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Stirrer type:
-
Wall Scraper Mixer
-
Capacity:
-
50L - 2000L Customization
Quick Details
-
Barrel Volume (L):
-
65
-
Max. Loading Volume (L):
-
50 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2880 r.p.m
-
Weight (KG):
-
200 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyang
-
Voltage:
-
220V
-
Power (kW):
-
1.5 kW
-
Marketing Type:
-
New Product 2021
-
Usage:
-
liquid detergent processing
-
Function:
-
mixing and heating
-
Product name:
-
liquid washing mixing machine
-
Application scope:
-
Daily chemical food
-
Heating method:
-
Electric Steam Heating
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Stirrer type:
-
Wall Scraper Mixer
-
Capacity:
-
50L - 2000L Customization

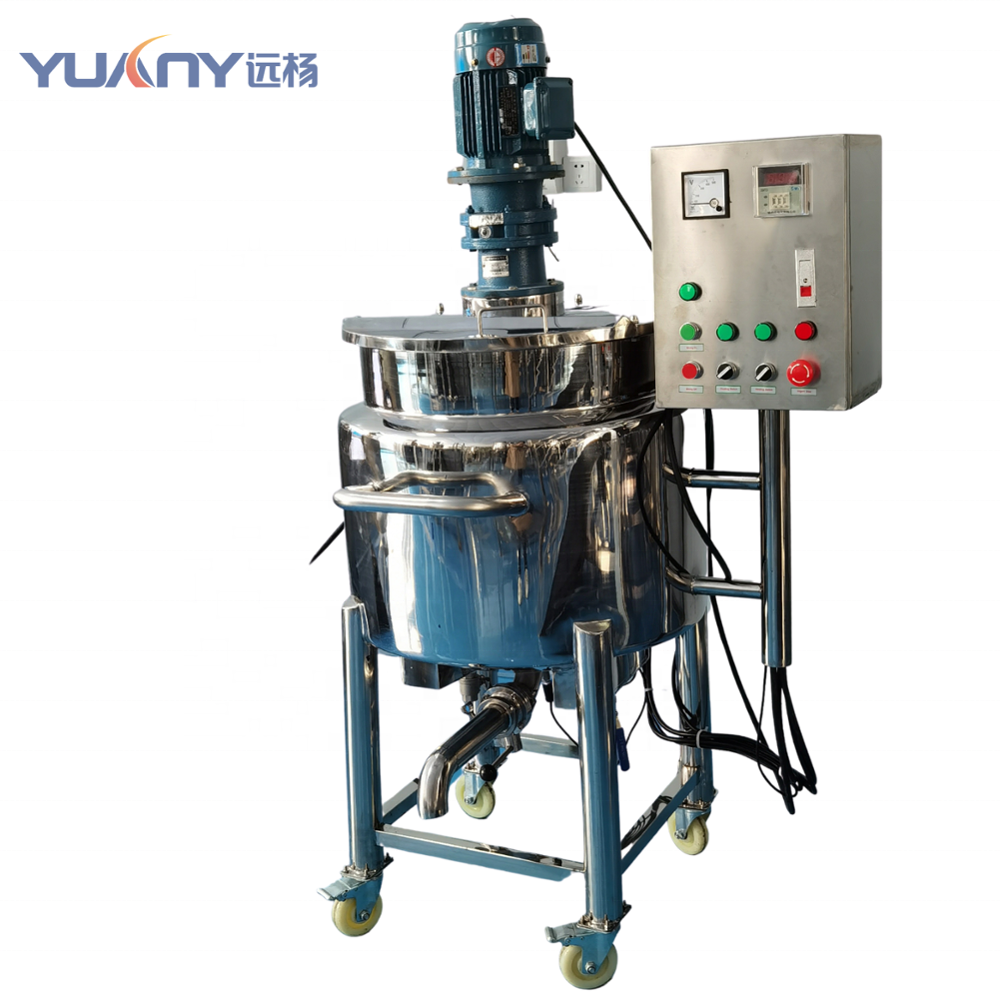

Liquid Heating Mixer
1. Single-layer structure. Without jacket, it can realize internal heating or cooling, or the electric heating tube can be directly inserted into the mixing tank for heating.(We don't suggest you to buy single layer with inserted heating in the tank directly,which is dangerous,not safe.)
2. Three layer structure. With jacket, it can carry out the electric conducting oil heating and water heating, or steam heating. According to the heating temperature, the water heating can be selected if the temperature is required to be no more than 100℃. If higher temperature is required,we choose oil heating. One steam boiler can be used for more than one tank,it is recommended to use steam heating for large capacity mixer.
Description:
A mixing tank, also known as water-phase tank, is widely used in paint, building materials, chemical, pigment, resin,food,
scientific research and other industries. The device can be made of carbon steel, stainless steel and other material as well as be equipped with heating and cooling devices according to different process requirements and production needs of users. A mixing tank is a kind of vessel that can perform stirring, mixing, blending, homogenizing and other operations for material. According to different requirements of production processes, different structures and configurations can be designed, and standardized and humanized production can be satisfied as well.
The heating modes concludes electric heating of jacket and oil heating. Featuring reasonable structure, advanced technology, durability, simple operation and convenient use, it is regarded as an ideal chemical device that can invest little, put into production quickly and gain high interest. It can realize the charging control, discharging control, stirring control ,temperature control,water metering,weighing,manual and automatic control during the mixing.
Product Paramenters
|
Product Name
|
Movable Mixing Tank
|
|
Capacity
|
50L(50L-3000L)
|
|
Power
|
0.75 KW )(power differs based on different capacity from 0.75--7.5 KW)
|
|
Rotation Speed
|
0-60 rpm (Frequency inverter Control )(inverter is optional,can make a fixed speed)
|
|
Machine Material
|
3 layers (inner layer-middle jacket-outer layer) (single layer for non-heating is optional)
|
|
Mixing type
|
With wall scrapers (you have several optional stirring types to choose)
|
|
Other parts
|
With movable wheels for small capacity,with stairs for big capacity.
|
|
Customization
|
Stirring speed;motor;capacity;discharge height;heating method;voltage
|
|
Homogenizer
|
Can be added (high shear 2900rpm)
|
|
Heater
|
Can be added (electric or steam heating)
|
Product Description
With frequency inverter
Rotating speed:0-60 r.p.m
The inverter is optional,without it,you will have a fixed speed.
And we can customize the stirring speed from 0-128rpm.
For Material Input
Convenient for inspect
Electric heater by oil or water;
or steam heating
Heating power: 6 kw
The heating function is optional,we can customize non-heating type for you according to needs.
Discharge can be from bottom or at side.
With movable wheels or platform and stairs
Optional stirring types for you to choose
Blades-Frame-Disperser-Homogenizer Stirring,or other types can be customized.
Types for You to Choose
Simple Mixing Tank
Top stirring:standard 0-60rpm,custom0-128rpm.
Stirring type:frame/wall scrapers/blades/others...
Side discharge or bottom discharge
With wheels or just standby type
Non-heating
Mixing tank with Heater
Top stirring:standard 0-60rpm,custom0-128rpm.
Stirring type:frame/wall scrapers/blades/others...
Bottom discharge
With wheels or just standby type
Electric heater at bottom
Mixing tank with heater and homogenizer
Top stirring:standard 0-60rpm,custom0-128rpm.Stirring type:frame/wall scrapers/blades/others...
Bottom discharge
With wheels or just standby type
Electric heater at bottom
Bottom discharge
With wheels or just standby type
Electric heater at bottom
Bottom homogenizer:2900rpm
Mixing tank with homogenizer
Top stirring:standard 0-60rpm,custom0-128rpm.Stirring type:frame/wall scrapers/blades/others...
Bottom discharge
With wheels or just standby type
Non-heating
Bottom discharge
With wheels or just standby type
Non-heating
Bottom homogenizer:2900rpm
