Quick Details
-
Brand Name:
-
HaiLi
-
Use:
-
FTTH
-
Name:
-
optic switch
-
Condition:
-
Brand new
-
Logo:
-
Can be customized
-
CE RoHS:
-
compliant
-
Warranly:
-
3 years
-
Operating wavelength:
-
1260~1620 nm
-
Lead time:
-
2-4 working days
Quick Details
-
Type:
-
Mechanical Optic Switch
-
Model Number:
-
HL-optic switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HaiLi
-
Use:
-
FTTH
-
Name:
-
optic switch
-
Condition:
-
Brand new
-
Logo:
-
Can be customized
-
CE RoHS:
-
compliant
-
Warranly:
-
3 years
-
Operating wavelength:
-
1260~1620 nm
-
Lead time:
-
2-4 working days
2x2 Optical Fiber Automatic Changeover Switch
Description:
It’s a passive component used for OADM system, OXC, monitor system and experience.
Features:
Wide band operation
Low insertion loss
Low PDL
High cross talk
High stability and reliability
Path without epoxy
Application:
OADM
WAN
Laboratory
Monitory & detection
Performance:
|
Model |
|
22-1315-A-A (Reference to model number) |
|
|
|
|
|
|
|
Operating wavelength |
nm |
1260~1620 |
|
|
|
|
|
|
|
wavelength |
nm |
1310&1550 |
|
|
|
|
|
|
|
Insertion loss |
dB |
Typ:0.5 |
Max:1.0 |
|
|
|
|
|
|
Return loss |
dB |
SM≥50 |
|
|
|
|
|
|
|
Cross talk |
dB |
SM≥55 |
|
|
|
|
|
|
|
PDL |
dB |
≤0.05 |
|
|
|
|
|
|
|
WDL |
dB |
≤0.25 |
|
|
|
|
|
|
|
TDL |
dB |
≤0.25 |
|
|
|
|
|
|
|
Repeatability |
dB |
≤±0.02 |
|
|
|
|
|
|
|
Voltage |
v |
3.0 or 5.0 |
|
|
|
|
|
|
|
Operating life |
Time |
≥10 7 |
|
|
|
|
|
|
|
Switch time |
ms |
≤8 |
|
|
|
|
|
|
|
Power handling |
mW |
≤500 |
|
|
|
|
|
|
|
Operating temperature |
℃ |
-20~+70 |
|
|
|
|
|
|
|
Storage temperature |
℃ |
-40~+85 |
|
|
|
|
|
|
|
Fiber color |
|
P1,P3 RED, |
P2,P4 Black |
|
|
|
|
|
|
Size |
mm |
27.0×12.6×8.0 |
|
|
|
|
|
|

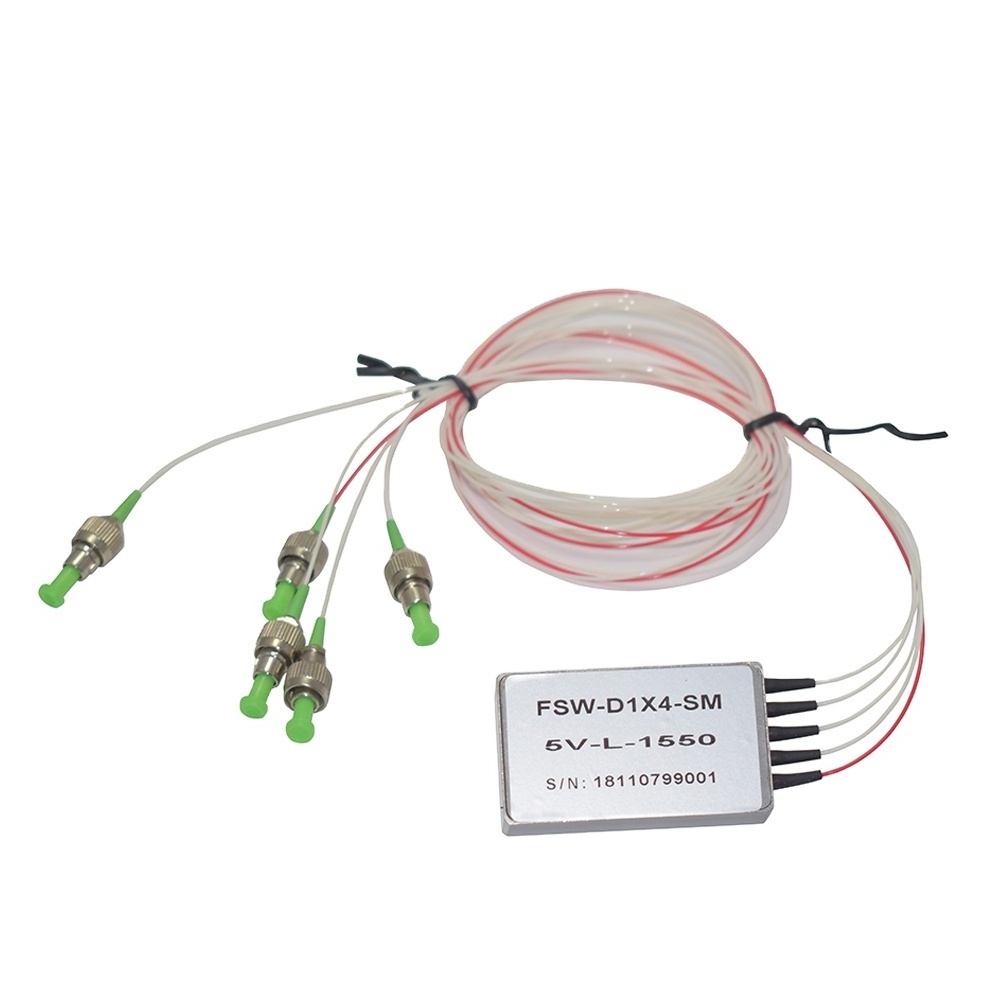

Real Produts Show:
Shipment:
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
OEM and ODM
OEM/ODM order is available
