120KW driving system
is mainly used in 30-60T heavy truck, 10. 5-12meters bus, tourist coach and other electric ve
hicles.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

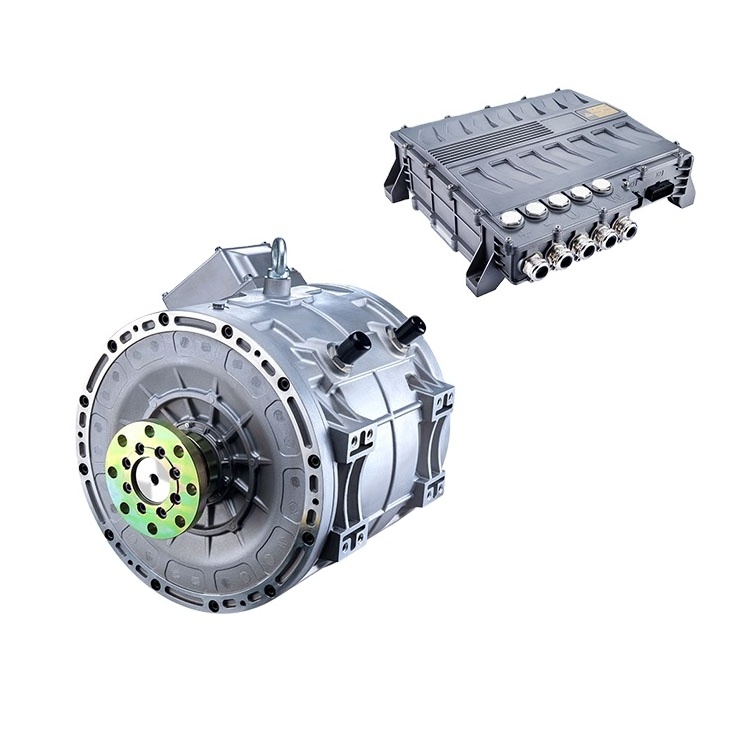

PMSM motor and controller
-
Rated power:
-
250KW
-
Peak power:
-
350KW
-
Rated torque:
-
2000Nm
-
Rated speed:
-
1195rpm
-
Peak speed:
-
3400rpm
-
Voltage range:
-
450~750Vdc
-
Rated current:
-
450A
-
Cooling method:
-
Liquid cooling
-
Protection grade:
-
IP67
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
120kw motor and controller
-
Brand Name:
-
Sumcont
-
Product name:
-
PMSM motor and controller
-
Rated power:
-
250KW
-
Peak power:
-
350KW
-
Rated torque:
-
2000Nm
-
Rated speed:
-
1195rpm
-
Peak speed:
-
3400rpm
-
Voltage range:
-
450~750Vdc
-
Rated current:
-
450A
-
Cooling method:
-
Liquid cooling
-
Protection grade:
-
IP67
*
Low vibration
*
High efficiency
*
High reability
*
High power density
*
Excellent NVH performance
|
Controller
|
Voltage range
|
Rated current
|
Peak current
|
Cooling method
|
Weight
|
Dimensions
|
Protection grade
|
|
|
420~
750Vdc
|
360A
|
720A
|
Liquid cooling
|
24KG
|
505*449*143
|
IP67
|
|
Motor
|
Rated power
|
Peak power
|
Rated torque
|
Peak torque
|
Rated speed
|
Peak speed
|
Weight
|
Dimensions
|
Protection grade
|
|
|
120KW
|
240KW
|
1050Nm
|
3000Nm
|
1100
rpm
|
3200
rpm
|
245KG
|
Φ450*412
|
IP67
|
