- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
laidong,quanchai
-
Weight:
-
2800 KG, 2800 KG
-
Model:
-
TH1004
-
Engine power:
-
73.5KW
-
Wheel drive:
-
4wheel Drive
-
After-sales Service Provided:
-
1year
-
Engine:
-
quanchai Engine
-
Engine type:
-
4 Cylinder Engine
-
Color:
-
Customer Requirements
-
Clutch:
-
Dual- Stage Clutch
-
PTO Speed:
-
540/1000
Quick Details
-
Brand Name:
-
Taihong brand
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Hot product 2022
-
Engine Brand:
-
laidong,quanchai
-
Weight:
-
2800 KG, 2800 KG
-
Model:
-
TH1004
-
Engine power:
-
73.5KW
-
Wheel drive:
-
4wheel Drive
-
After-sales Service Provided:
-
1year
-
Engine:
-
quanchai Engine
-
Engine type:
-
4 Cylinder Engine
-
Color:
-
Customer Requirements
-
Clutch:
-
Dual- Stage Clutch
-
PTO Speed:
-
540/1000
Product Description

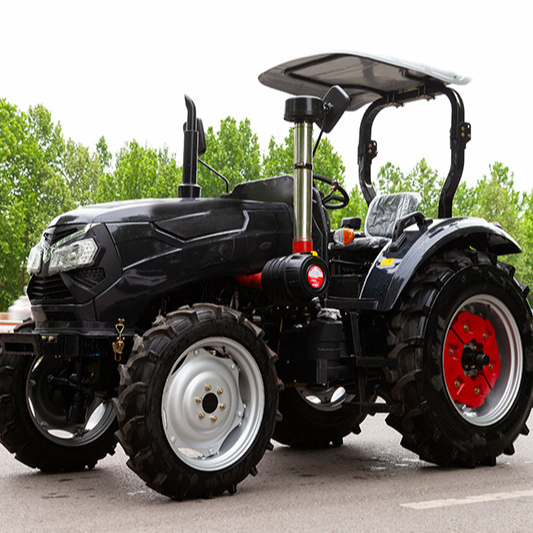

1.This big tractors is a multi-functional, big horsepower agricultural wheel tractors.
2.It has the characteristics of reliable structure, convenient operation, flexible steering, big traction, easy maintenance etc.
3.This series of tractors is from 60hp to 100hp.
4.It equipped with Laidong,Quanchai diesel engine.
5. The tranmission box adopt 12F+12R shuttle shifts, front wheel hydraulic steering, mechanical step shift. Brake is adopting doube plates oil bath type disc brake.
6.Rear positioned independent PTO shaft; it is fixed with split type hydraulic suspension system, rear three point linkage,three-way hydraulic output valve, with sealed cabin.
7. Used for tilling rotavating, trailing, spraying, ploughing, harrowng, mower cutting, planting, livestock husbandry etc.
2.It has the characteristics of reliable structure, convenient operation, flexible steering, big traction, easy maintenance etc.
3.This series of tractors is from 60hp to 100hp.
4.It equipped with Laidong,Quanchai diesel engine.
5. The tranmission box adopt 12F+12R shuttle shifts, front wheel hydraulic steering, mechanical step shift. Brake is adopting doube plates oil bath type disc brake.
6.Rear positioned independent PTO shaft; it is fixed with split type hydraulic suspension system, rear three point linkage,three-way hydraulic output valve, with sealed cabin.
7. Used for tilling rotavating, trailing, spraying, ploughing, harrowng, mower cutting, planting, livestock husbandry etc.
Specification
|
Model NO
|
TH1004
|
|
|
Type
|
4 x 4 wheeled drive
|
|
|
L x W x H(mm)
|
4100x1810x2660
|
|
|
Wheel base(mm)
|
2071
|
|
|
Front wheel tread(mm)
|
1180/1280/1380
|
|
|
Rear wheel tread(mm)
|
1300-1430
|
|
|
Min ground clearance
|
390mm
|
|
|
Dry mass(kg)
|
2800
|
|
|
|
|
|
|
Clutch
|
Dry type double action constantly connecting
|
|
|
Steering
|
hydraulic steering
|
|
|
Transmission box
|
12F +12R Shifts
|
|
|
Engine brand
|
Quanchai engine
|
|
|
Engine type
|
Inline,cooled water,four stroke
|
|
|
Engine Rated power
|
73.5kw
|
|
|
Engine Rated speed
|
2400(r/min)
|
|
|
Fuel
|
diesel
|
|
|
Front Tyre
|
8.3-24
|
|
|
Rear Tyre
|
14.9-30
|
|
|
Hydraulic outlet
|
Two pairs
|
|
|
Suspension type
|
Rear position,rear three point suspension category ii
|
|
|
Pto speed
|
760/850 r/min or 540/1000 r/min
|
|
|
Pto shift & spline size
|
35 spline 6 teeth
|
|
Packing & Delivery
Fast Delivery Time ,Professional Package,40HQ load 3 pcs tractor,Or use trucks
Farm implements
We supply all kinds of tractor implements, like front end loader, backhoe, disc plough, disc harrow, rotary tiller, cultivator,
sprayer, corn soya planter/ seeder, rice transplanter, rice harvester, rice mill, potato harvestor, mower, front end loader and
backhoe, snowbrush, hay baler, planter etc. We provide you good prices with high quality.
