Quick Details
-
Brand Name:
-
Govo
-
Product Name:
-
SM Fiber Optic Hybrid Adapter bare fiber adapter female to male
-
Insertion Loss:
-
≤1dB
-
Return Loss:
-
≥ 45dB(PC), ≥ 50dB(UPC), ≥ 65dB(APC)
-
Plug and unplug force:
-
200-600(g/f)
-
Durability:
-
5,000 times
-
Exchangeability:
-
≤ 0.2dB
-
Operating Temperature:
-
-40°C to +85°C
-
Storage Temperature:
-
-55°C to +85°C
-
Mode:
-
SM=SM UPC; APC=SM APC; MM=MM
-
Standards:
-
Telcordia, TIA/EIA, IEC, ANSI and JIS compliance
-
No. of Fiber:
-
1.
-
Use:
-
FTTX
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
FC SC LC ST
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Govo
-
Product Name:
-
SM Fiber Optic Hybrid Adapter bare fiber adapter female to male
-
Insertion Loss:
-
≤1dB
-
Return Loss:
-
≥ 45dB(PC), ≥ 50dB(UPC), ≥ 65dB(APC)
-
Plug and unplug force:
-
200-600(g/f)
-
Durability:
-
5,000 times
-
Exchangeability:
-
≤ 0.2dB
-
Operating Temperature:
-
-40°C to +85°C
-
Storage Temperature:
-
-55°C to +85°C
-
Mode:
-
SM=SM UPC; APC=SM APC; MM=MM
-
Standards:
-
Telcordia, TIA/EIA, IEC, ANSI and JIS compliance
-
No. of Fiber:
-
1.
-
Use:
-
FTTX
FC SC LC ST SM Fiber Optic Hybrid Adapter bare fiber adapter female to male transfer

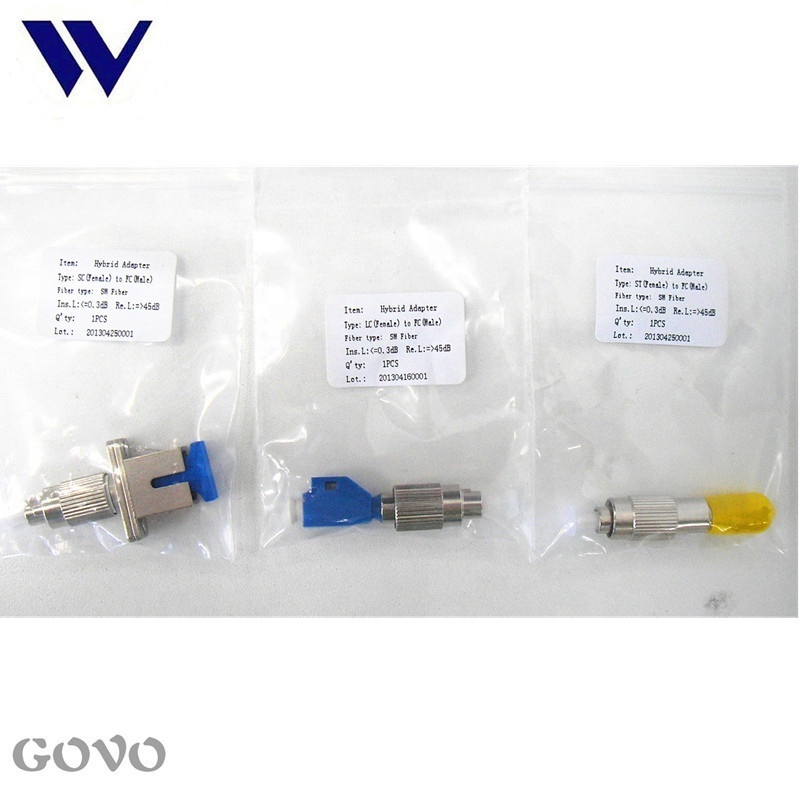

Optical Hybrid Adapter
* Practical and compact, easy to facilitate the transfer of testers
* Easy transfer without carrying jumpers
* Easy to carry
* Low Loss
* Single-mode ceramic earthenware
* Model: FC male-LC female ( FCM-LCF; LC/UPC-FC/UPC SM )
* Insertion loss ≤0.2dB (for switching Adapter)
Attenuation range: 0-25dB (with adapter for attenuating )
* Tensile strength: 200 ~ 600g,
* Mating cycles (1000) ≤0.3dB,
* Temperature range: -40 ℃ ~ + 80 ℃
* Package: 1piece/bag
* net weight: 7g/piece
FC SC Fiber Optical Bare Fiber Adapter
Bare fiber adaptors are used as the medium to temporarily connect the bare fiber with fiber optic equipment. It’s a very convenient way as well as a most affordable method to connect un-terminated fibers with standard FC, SC, ST, LC and SMA905 receptacles. They are recommended for power meter hook-ups, temporary system repairs or wherever a quick fiber connection is required.
You only need to simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. Broken fibers are easily removed with piano wire.
There are various types available: SC, FC, ST, LC, SMA, etc. Both single mode and multi-mode types are available.
- Simply strip
- Compact design
- High stability, easy to operate
- Good repeatability and durability
- Suitable for fibers with coating diameters of 250um & 900um
Application s
- Fiber optic testing
- Fiber optic cable repair
- Production line of fiber optic devices
- OTDRs, Power meters, Talk sets, etc
- Fiber optic measurement in laboratory
- Testing bare fiber, fiber on the reel, fiber before and after installation
| Insertion Loss | ≤1dB |
| Return Loss | ≥ 45dB(PC), ≥ 50dB(UPC), ≥ 65dB(APC) |
| Plug and unplug force | 200-600(g/f) |
| Durability | 5,000 times |
| Exchangeability | ≤ 0.2dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
