Quick Details
-
Product name:
-

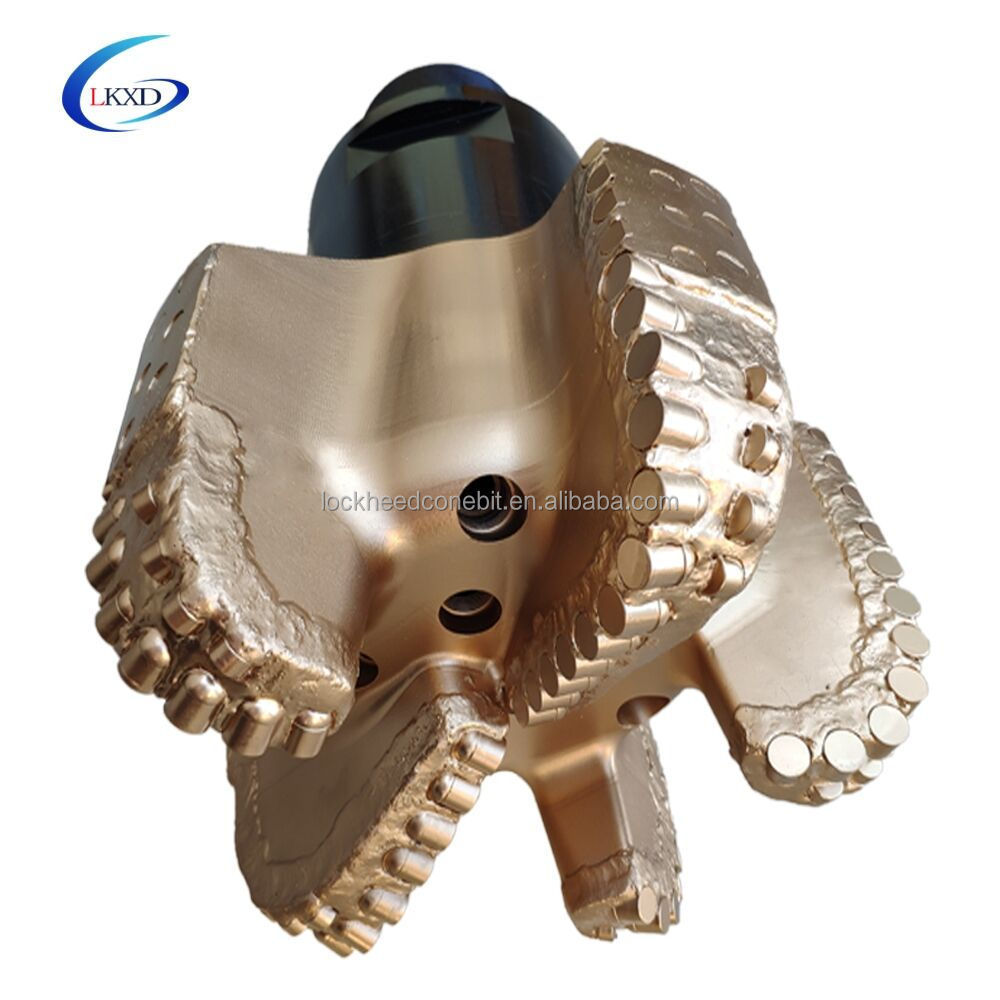

Lockheed 10 1/2 Inch PDC bits for well
-
IADC Code:
-
LAT517GX
-
WOB KN/mm:
-
0.35~1.05
-
RPM r/min:
-
120~50
-
Volume:
-
32*29*48 cm
-
NW/GW (KG):
-
75/82
-
Connection Thread:
-
6 5/8 REG PIN
-
Formation:
-
extremely soft
-
MOQ:
-
1 Piece
-
Color:
-
Customer's Requirement
Quick Details
-
Weight (KG):
-
80
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lockheed
-
Product name:
-
Lockheed 10 1/2 Inch PDC bits for well
-
IADC Code:
-
LAT517GX
-
WOB KN/mm:
-
0.35~1.05
-
RPM r/min:
-
120~50
-
Volume:
-
32*29*48 cm
-
NW/GW (KG):
-
75/82
-
Connection Thread:
-
6 5/8 REG PIN
-
Formation:
-
extremely soft
-
MOQ:
-
1 Piece
-
Color:
-
Customer's Requirement
Product Description
|
Product Name
|
Lockheed 10 1/2 Inch TCI Bit tricone bits for well
|
Volume (cm³)
|
32*29*48
|
|
|||
|
IADC Code
|
LAT517GX
|
NW/ GW (kg)
|
75/82
|
|
|||
|
WOB KN/mm
|
0.35~1.05
|
Connection Thread
|
6 5/8 REG PIN
|
|
|||
|
RPM r/min
|
120~50
|
Formation
|
Extremely soft formation with high drillability and compressive strength, such as shale, clay, sandstone, soft limestone, etc.
|
|
|||
|
Cutting Structure
|
Large diameter wide top wedge inner and wedge outer teeth are arranged. A row of trimming teeth is added between back cone teeth
and outer teeth. |
Bearing Structure
|
1. O-type rubber seal, full sliding bearing, steel ball locking roller;
2, teeth bearing surface strengthening, increase wear
resistance; The inner hole of the roller was plated with silver; Good occlusal resistance;
3, the use of controllable pressure differential pressure compensation oil storage sealing system, sealing and lubrication more reliable;
4, the use of 250℃ high temperature resistance of the new bit grease.
|
|
|||
|
*Note
|
T
- Roller special diameter protection (the roller is lined with alloy teeth, which can greatly enhance the bit diameter protection ability and extend its life, suitable for highly abrasive formation and directional drilling)
G
- Palm back strengthening (Bit palm back insert strengthening, in abrasive formation or directional and horizontal Wells, it can effectively reduce the wear of the bit palm, improve the bit diameter performance, and extend the service life of the bit)
X
-
Wedge teeth (wedge teeth are characterized by high cutting efficiency and strong crushing resistance, which can effectively improve the bit's mechanical drilling speed and prolong its service life, and are suitable for medium to hard formation)
|
|
|
|
|||
Product Details
Nozzles
Various of dimensions haed alloy nozzles could be fitted easily to get different flow rate of mud fluid.
Gauge Structure
G-Gauge protection improve the gauge ability and prolong the service life of the bit.
Cutting Structure
Premium tungsten carbide inserts, improved dilling efficiency.
Oil storage system
There is no oil in the drill bit, and it is refueled through the oil reservoir.
Thread Connection
API standard thread connection is universal for internation drilling fields.
Product Paramenters
|
HA/HAT Series Tricone Bit Operating Instructions
|
|
|
|
|
||||
|
Bit Type
|
IADC Code
|
WOB KN/mm
|
RPM r/min
|
Formation
|
||||
|
HA116
|
116
|
0.35-~0.90
|
150~80
|
Extremely soft formation with low compressive strength and high drillability, such as soft shale, clay, salt rock, etc
|
||||
|
HV/HAT117
|
117
|
|
|
|
||||
|
HAI26
|
126
|
0.35~1.00
|
150~70
|
Soft formations with low compressive strength and high drillability, such as shale, clay, salt rock, soft limestone, etc
|
||||
|
HA/HAT127
|
127
|
|
|
|
||||
|
HA136
|
136
|
0.35~1.05
|
120~-60
|
Soft to medium soft strata of low compressive strength or layers of soft and hard intercalation, such as anhydrite, soft limestone, sandstone, etc
|
||||
|
HA/HAT137
|
137
|
|
|
|
||||
|
H4216
|
216
|
0.50~1.20
|
90~50
|
Medium hardness with high compressive strength and hard interbedded strata, such as hard shale, sandstone, limestone, etc
|
||||
|
HA/HAT217
|
217
|
|
|
|
||||
|
HA/HAT317
|
317
|
0.7~1.30
|
80~45
|
Strata with high compressive strength, medium to hard and high abrasivity, such as limestone, dolomite, sandstone, fracturestone,
etc |
||||
|
HA/HAT337
|
337
|
0.8~1.40
|
75~45
|
High compressive strength, medium to hard and abrasive formations such as limestone, dolomite, sandstone, jianshite, etc
|
||||
|
HA/HAT417
|
417
|
0.35~0.90
|
140~70
|
Very soft formation with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc
|
||||
|
HA/HAT427
|
427
|
0.35~0.90
|
140~70
|
Extremely soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc
|
||||
|
HA/HAT437
|
437
|
0.35~1.00
|
140~60
|
Extremely soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc
|
||||
|
HV/HAT447
|
447
|
0.35~1.05
|
120~50
|
Soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, soft limestone, salt rock,
gypsum, etc |
||||
|
HA/HAT517
|
517
|
0.35~1.05
|
120~50
|
Soft formations with low compressive strength and high drillability, such as shale, clay, salt rock, soft limestone, etc
|
||||
|
HA/HAT527
|
527
|
0.40~1.05
|
110~40
|
Shale, clay, salt rock, soft limestone and other soft formations with low compressive strength and high drillability
|
||||
|
HA/HAT537
|
537
|
0.40~1.05
|
110~40
|
Low compressive strength, medium soft, with hard abrasive intercalation strata, such as hard shale, anhydrite, soft limestone,
sandstone, intercalated dolomite, etc |
||||
|
HV/HAT547
|
547
|
0.50~1.05
|
100~40
|
Low compressive strength, medium soft, with hard abrasive intercalation strata, such as hard shale, anhydrite, soft limestone,
sandstone, intercalated dolomite, etc |
||||
|
HA/HAT617
|
617
|
0.50~1.05
|
100~40
|
A formation of medium hardness having high compressive strength, such as hard shale, limestone, sandstone, dolomite, etc
|
||||
|
HA/HAT627
|
627
|
0.60~1.10
|
90~40
|
Medium - hard strata with high compressive strength and hard intercalations, such as hard shale, limestone, sandstone, dolomite,
etc |
||||
|
HA/HAT637
|
637
|
0.60~1.10
|
90~40
|
High compressive strength, medium to hard and abrasive formations such as limestone, dolomite, sandstone, jianshite, etc
|
||||
Certifications
Cooperation Partner
* Our customers come from all over the world, mainly including the U.S., Canada, Republic of Korea, Philippines, Russia, Australia, Germany, India, Yemen, Egypt and so on.
* If you are interested in our products or any question, please feel free to contact us and look forward to cooperating with you.
Packing & Shipping
*
Wooden Boxes
are usually used for product packaging.
* Please contact us and we will
customize
the packaging for you, if you have special requitements.
The delivery time depends on the actual production arrangement of the factor.
