LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump
LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump

LQRY Single Stage High Temperature Electric Cooking Oil Transfer Thermal Hot Oil Circulation Pump

FOB Reference Price: Get Latest Price
≥1 Sets
US $600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 year
Brand Name:
SUOTO
Model Number:
LQRY
Place of Origin:
Shanghai, China
Horsepower:
0.67hp
Cable Length:
NA
Outlet Size:
20-300MM
Power:
500W
motor:
NA
Ambient temperature:
less than 350℃
Suction pressure:
less than1.0MPa
Material:
Stainless Steel/Optional
Applications:
Mining industry, Pharmaceutical industry, Oil Industry/Other
Head:
15-80m
Usege:
Hot oil transfer
Color:
Customer Required
Cooling System:
self heat radiating system
Standard or Nonstandard:
Standard
MOQ:
1 Pcs

Quick Details

Application:
Automotive Industry, Food and Beverage Industry, Marine, Pharmaceutical industry, Petrochemical Industry
Pressure:
Low/High Pressure
Voltage:
220V/480V
Warranty:
1 year
Brand Name:
SUOTO
Model Number:
LQRY
Place of Origin:
Shanghai, China
Horsepower:
0.67hp
Cable Length:
NA
Outlet Size:
20-300MM
Power:
500W
motor:
NA
Ambient temperature:
less than 350℃
Suction pressure:
less than1.0MPa
Material:
Stainless Steel/Optional
Applications:
Mining industry, Pharmaceutical industry, Oil Industry/Other
Head:
15-80m
Usege:
Hot oil transfer
Color:
Customer Required
Cooling System:
self heat radiating system
Standard or Nonstandard:
Standard
MOQ:
1 Pcs
Recommend Products
Product Description

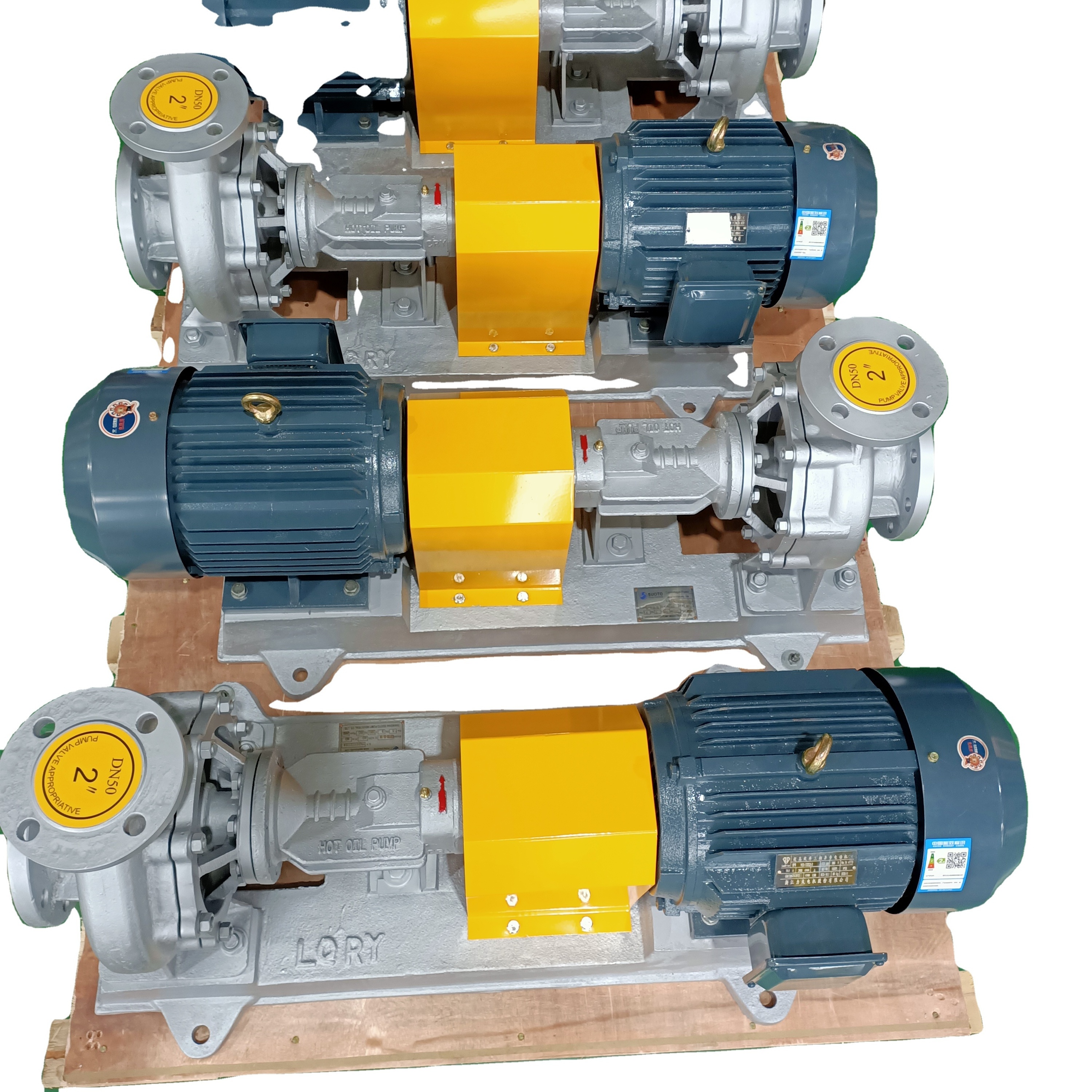

LQRY Type Hot Oil Pump

Thermal oil pump adopts the selfheat-radiating structure, change the traditional water cooling structure, make it more simple, small volume, economy operation cost, good performance, reliable operation, it is the second generation product based on our country digesting and absorbing foreign technology.


Performance Parameter

Model
Capacity
Head
Speed
Shaft Power
Motor Power
Power (kw)
Ports size(mm)
m3/h
m
r/min
kW
kW
4
50
26-20-100
4.5
15
2825
0.45
0.75
1.5
50
50-32-150
8
22
2900
1
1.5
2.2
50
50-32-160
10
25
2900
1.5
2.2
4
50
65-40-160
12.5
25
2900
2.5
3
4
50
50-50-170
12.5
32
2900
3.2
4
4
50
65-50-180
32
32
2900
4.5
5.5
5.5
50
65-50-170
40
25
2900
4.5
5.5
7.5
50
80-50-180
40
40
2900
6.7
7.5
80-50-170
60
20
2900
6.7
7.5
100-65-190
60
38
2930
9.2
11
100-65-200
80
40
2930
12.5
15
100-65-220
58
50
2930
12.5
15
100-65-230
100
55
2940
19.5
22
125-100-190
155
30
2940
20
22
100-65-240
100
70
2950
25.5
30
100-65-257
100
80
2950
32.5
37
125-100-220
160
45
2950
25.5
37
125-80-250
150
60
2970
35.5
45
125-100-257
200
60
2970
42.8
55
125-100-260
260
70
2970
64.3
75
CDLF1/30
1.5
2
1
166
CDLF1/33
2.2
3
1
183
CDLF1/36
2.2
3
1
200
Products Show
Hot oil pump shaft seal:
(1) with the combination of packing seal and mechanical seal, packing seal use high
temperature resistant packing, has the good thermal adaptability, while mechanical seal
adopts high mechanical strength and wear resistance, good hard alloy material, which
guarantees the sealing performance under high temperature conditions.
(2)adopts PTFE as lip shape seal, make the sealing performance much better, seal
reliability of 25 times than rubber seal, and with very strong corrosion-resist ability.
Application
Application
This kind pump is suitable for the oil industry, landbased oil depots, tanker as bilge pumps, fire pumps and ballast pumps and cooling water circulation pumps, to transport gasoline, respectively, , kerosene,
diesel, jet fuel and other petroleum products and water, sea water, medium temperature 350 ℃. If using corrosion-resistant mechanical seals and stainless steel material, can also be used in chemical, pharmaceutical, brewing, electroplating, printing and dyeing, paper making, power and mining industry, etc.
Packing & Delivery

Packing Details  : One pump in One plywood case

Delivery Details : 30 days after order confirmation

Standard Export Plywood Case.
Standard package without original wood, no fumigation needed.
