Car DVB-T COFDM 4 antenna DVB-T2 4 Tuner Siano Digital TV Video transmission Receiver diversity high speed set top box

Selling Point
Support Customized Frequency (For example, 410Mhz, 473Mhz, 928Mhz)
Support 6M 7M 8M BandWidth
4 Tuner 4 Antenna Diversity
Support Program channel rename

Features

Support H.264/AVC, MPEG2~MPEG4 Video Decode;
Available to upgrade the firmware via USB slot;
USB Recorder, PVR;
Standard for DVB-T2 or DVB-T (OSD menu has switch for different firmware);
Auto searching and updating bit rate information;
Storage for 2000pcs channels;
Memory function after power off;
Support OSD TELETEXT;
Multi Language Support: English, Russian,Thailand, Polish;
EPG program guide and PIG(Picture in Graphics )Function;
6MHz, 7MHz, 8MHz Band-wide;
H-D-M-I output (One route);
Audio-R, Audio-L output;
Support IR output and extended remote sensor receiver;
Google Search DVB-T241 to get perfect technology support and update software.
Specification
Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz (Upto 960Mhz for COFDM wireless Video Receiver)
Modulate: QPSK/16 – QAM/256-QAM
Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
One way CVBS RCA output:
Output Resistance: 75 ohm
Output Voltage: 1.0`2.0mVp-p
Audio output: 2Vp-p
Power Supply: DC 12V~24V 6W

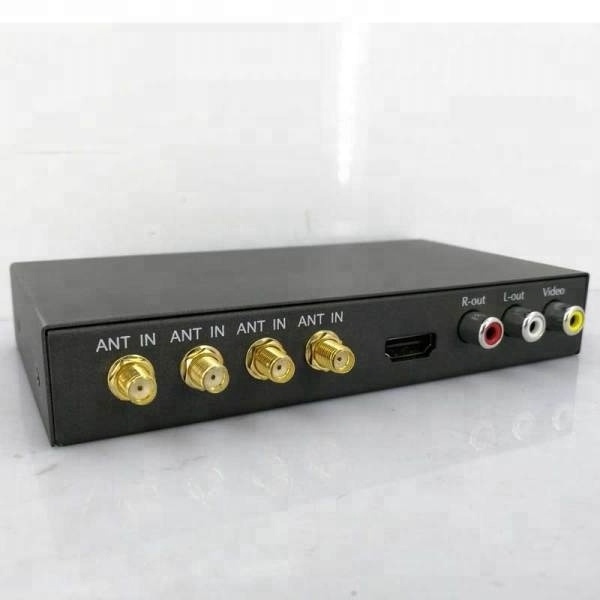

Connecting Terminal: 4 Active amplifier antenna input jack (5V supply), car power input jack (Battery+, Battery-) , R/L Audio CVBS Video output jack, External remote control IR cord jack, USB upgrade socket, HDMI High-definition output jack.
Applicable Power Supply: Car storage battery (12V~ 24V)
Outer dimension: 148mm x 77mm x 25mm
Application Temperature: -5 ~40 degree
Storage Temperature: -20~60 degree
