Quick Details
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vangood
-
Model Number:
-
JSW-32WH
-
Volume (Litre):
-
16L-32L
-
Exhasut Way:
-
Forced Exhasut
-
Gas type:
-
LPG/NG
-
16L Rated Heat Input:
-
32kW
-
Water Pressure:
-
0.02~0.8MPa
-
Front/Back panel:
-
0.6/0.5mm
-
Connectors Spec:
-
R 1/2
-
Gross Weight:
-
16.0 kg
-
Product Size:
-
580*360*140mm
-
Packing Size:
-
715*475*190mm
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Car, RV, Outdoor, Hotel, Garage, Commercial, Household
-
Power (W):
-
32000
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vangood
-
Model Number:
-
JSW-32WH
-
Volume (Litre):
-
16L-32L
-
Exhasut Way:
-
Forced Exhasut
-
Gas type:
-
LPG/NG
-
16L Rated Heat Input:
-
32kW
-
Water Pressure:
-
0.02~0.8MPa
-
Front/Back panel:
-
0.6/0.5mm
-
Connectors Spec:
-
R 1/2
-
Gross Weight:
-
16.0 kg
-
Product Size:
-
580*360*140mm
-
Packing Size:
-
715*475*190mm
Products Description
|
Product model
|
JSW30-16L
|
|
Antifreeze electric power
|
120W
|
|
Rated gas pressure
|
2000Pa
|
|
Rated voltage/rated frequency
|
220V/50Hz
|
|
Energy efficiency level
|
level 2
|
|
Rated heat load
|
31kw
|
|
Rated hot water production capacity
|
16kg/min
|
|
Rated electric power
|
48W+120W (antifreeze)
|
|
Ignition method
|
electric pulse discharge ignition
|
|
Applicable water pressure
|
0.02-1.0Mpa
|
|
Start water flow
|
≥2.3L/min
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
What is the feature of the outdoor gas water heater?
The Vangood Outdoor Gas Tankless Water Heater is designed to supply continuous hot water for up to 2 or 3 bathrooms at the same time. It heats water only when it's needed and has a 0.82 energy factor. It comes with a remote digital thermostat that can be installed in almost any convenient area of the house. This heater's outdoor design requires no additional venting and features freeze protection to -30°F.
Outdoor tankless gas water heaters require no additional venting.
Delivers continuous hot water, can provide enough hot water to supply 2-3 bathrooms.
Compact space saving design
Remote digital display shows precise temperature setting and maintenance codes.
Ability to link 2 like units together for high demand applications.
Hot start programming helps to minimize fluctuation in water temperature during periods of frequent on/off operation.
High-altitude capability up to 8,4000 ft. elevation about sea level.
Environmentally friendly ultra-low NOx burner.

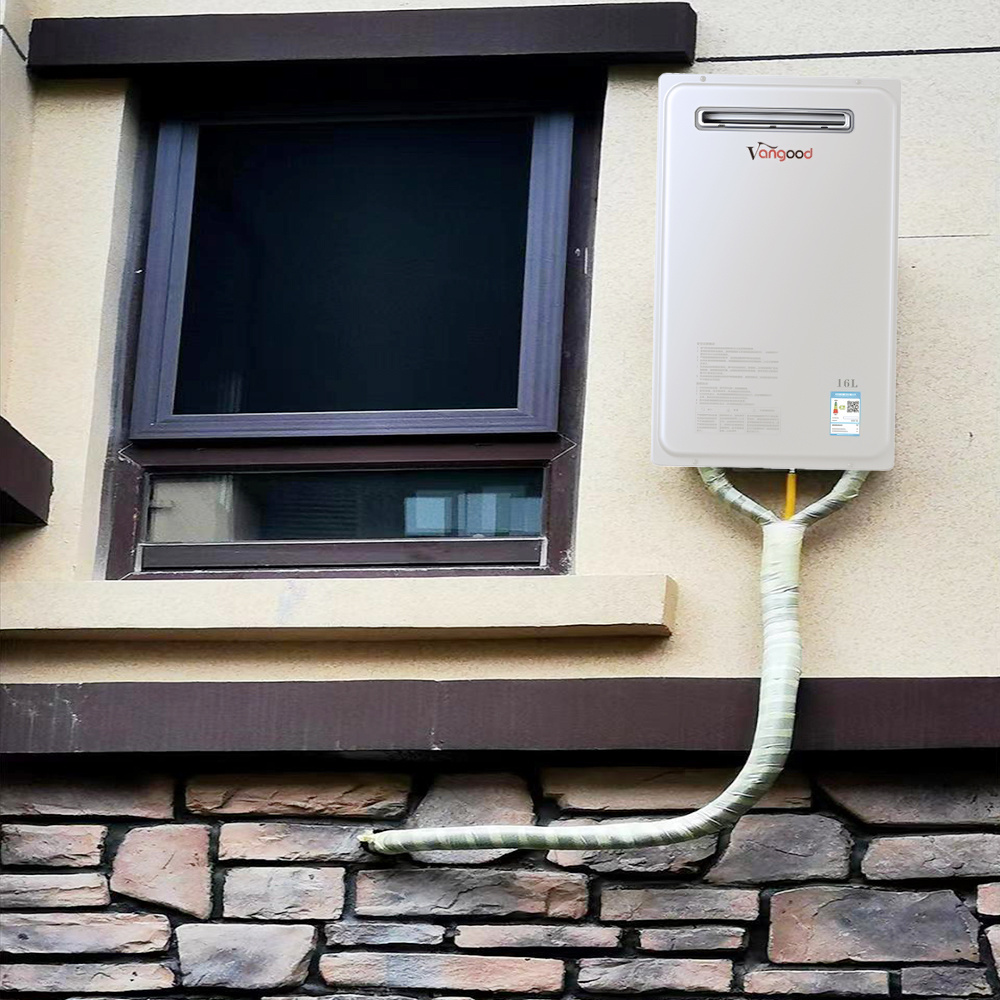

Installs outside for easy replacement of your existing outdoor unit and frees up space inside.
Zhongshan Vangood Appliances MFG Co., Ltd. is sitting on the best gas appliance resources in Zhongshan, providing our global customers with high-quality and punctual products and better services.
1. 22 years home appliance developing and producing experiences.
2. We are I S O 9 0 0 1 certified and have a strict quality system from raw materials, inspection at each production process,final inspection and acceptance of the finished products.
3. Our products are exported to clients in such countries and regions as North and South America, Europe, Russia, Africa.
4. We provide one- station service , from the product design, parts selection to the final finished product, both OEM and ODM orders are welcome.
5. There are 2 main series we produce now: gas water heaters , combi boilers and so on.
1. 22 years home appliance developing and producing experiences.
2. We are I S O 9 0 0 1 certified and have a strict quality system from raw materials, inspection at each production process,final inspection and acceptance of the finished products.
3. Our products are exported to clients in such countries and regions as North and South America, Europe, Russia, Africa.
4. We provide one- station service , from the product design, parts selection to the final finished product, both OEM and ODM orders are welcome.
5. There are 2 main series we produce now: gas water heaters , combi boilers and so on.
