Quick Details
Quick Details
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
1 Years
-
COLOR:
-
RED or BLUE

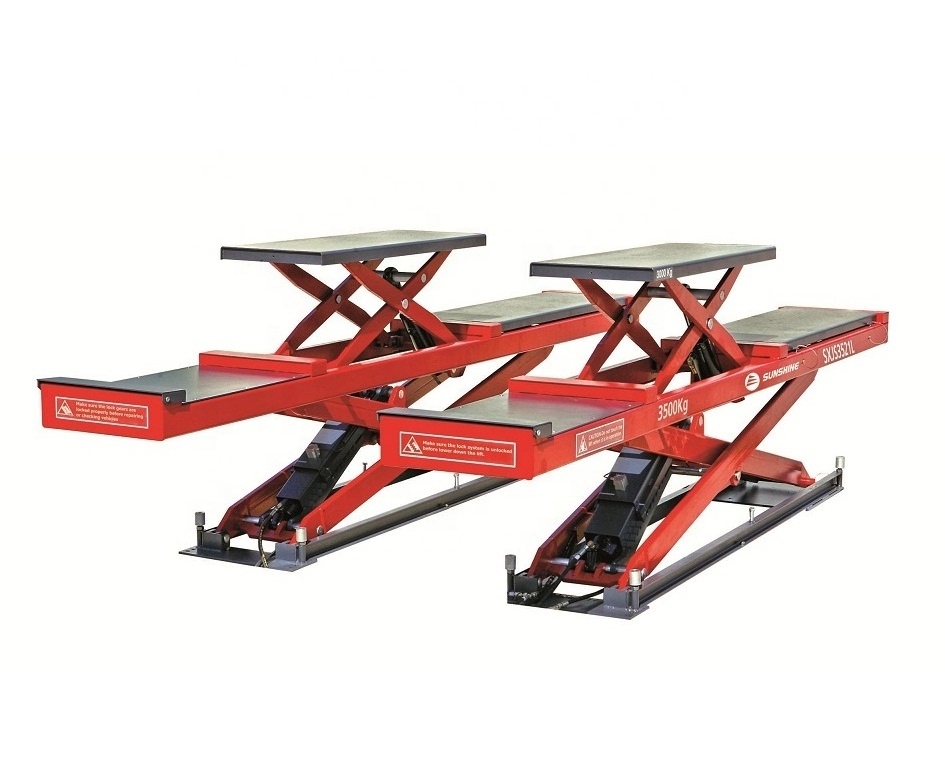

in ground car scissor lift
Model: SXJS3521 scissor alignment lift 3.5tons
Double-Deck Lift (For Wheel Aligner)
With automatically Pneumatic lock
With rubber pads for protection
Position for rolling angle plate for alignment\
MIn lifting hight:340mm
Specifications:
Lifting Capacity: 3500Kg (8000lbs)
Max lifting height (main platform with sub-platform): 2200mm
Main platform lifting height (sub-.platform): 1750mm(450mm)
Clearance between platform : 800mm
Total width: 2100mm
Single platform total width: 650mm
Total length: 4100mm
Lifting Time: 40s Lowering Time: 18s-40s
Power Supply Voltage: 220V/380V, 1ph/3ph
Motor power: 2.2Kw
Net Weight: 1750Kg Gross Weight: 1800Kg
Packing Dimension:
4030*615*460mm (2pcs) 470*340*1030mm (1pc)
Cubic Meter: 3.0cbm
Shipping: 9 pieces / 40’ container 12 pieces / 40HQ
