Quick Details
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CFine
-
Dimension(L*W*H):
-
1000*560*1150 mm
-
Year:
-
NEW
-
Power (kW):
-
3.7
-
Weight (KG):
-
800 KG
-
Front Roll Line Speed:
-
7.5 R/Min
-
Maximum Roll Distance:
-
0-5 mm
-
Type:
-
Open Roller Mixing Machine
-
Keywords:
-
Lab rubber two roll mixing mill
Quick Details
-
Diameter of Roll(mm):
-
120 mm
-
Length of Roll(mm):
-
320 mm
-
Roll Ratio(Front/Back):
-
1:1.24
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CFine
-
Dimension(L*W*H):
-
1000*560*1150 mm
-
Year:
-
NEW
-
Power (kW):
-
3.7
-
Weight (KG):
-
800 KG
-
Front Roll Line Speed:
-
7.5 R/Min
-
Maximum Roll Distance:
-
0-5 mm
-
Type:
-
Open Roller Mixing Machine
-
Keywords:
-
Lab rubber two roll mixing mill

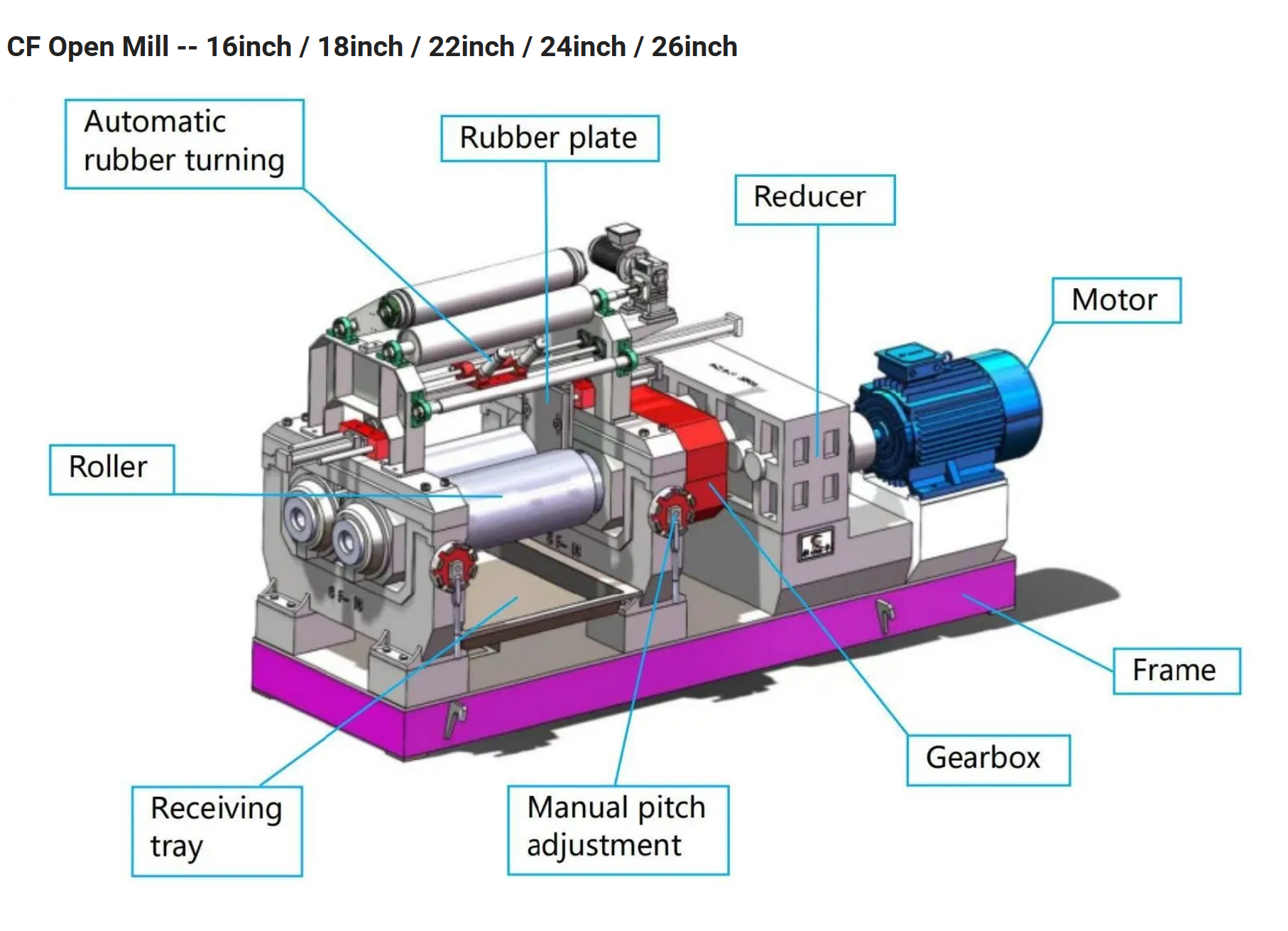

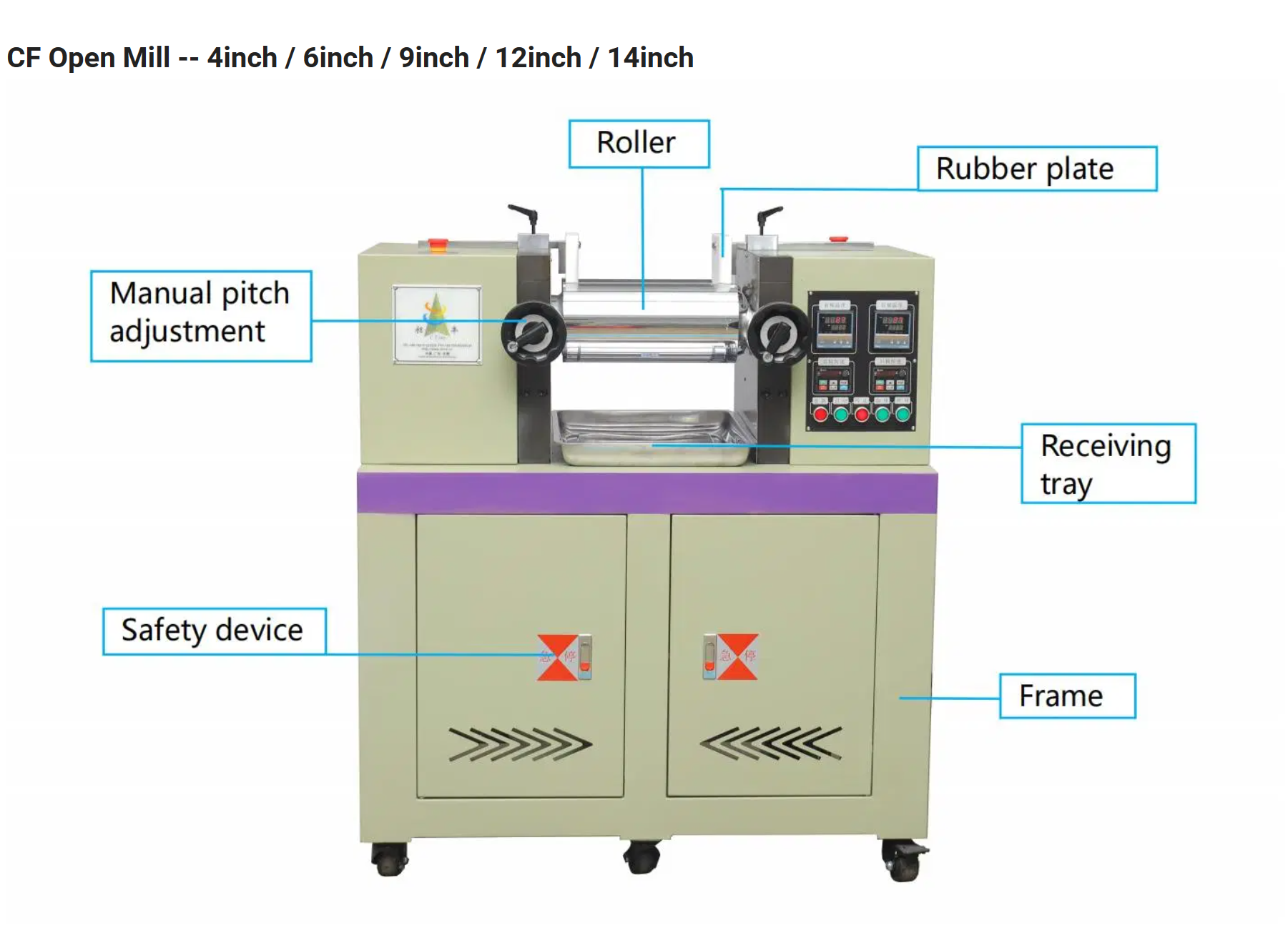

This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastics, pigment masterbatch, silicone rubber and other polymers; The double rollers are mirror-chromed with electric heating and water cooling, the surface temperature of the roller is uniform. The space between the two rollers is adjustable; Multi-directional Safety protection device make it safe and reliable, durable.
1.
Mainly used for: natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and other processes.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.
Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic,rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people.
We have very professional R&D team to meet the special requirements of customers, to custom-made the machine.
We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation.
Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
