Cells Layout:
156 Half Cells
(6×26)Dimensions:
2465 x 1134 x 30/35mm
Weight:
34.5kg
Modules per box:
36pcs
Modules per 40' container:
576pcs
Explore More Products
- Product Details
- {{item.text}}

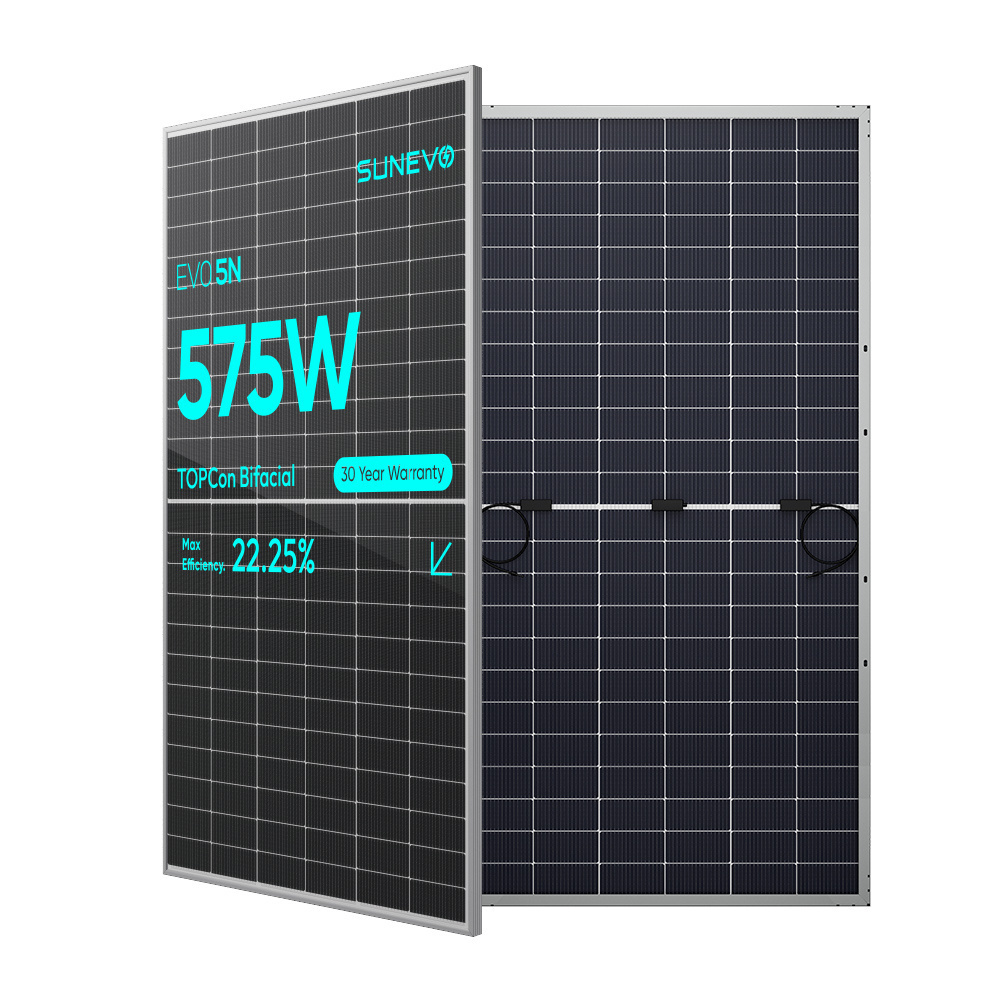

Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
SunEvo
-
Model Number:
-
Evo 5N 144Cells 560-580W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279 * 1134 *35mm
-
Solar Cells:
-
N-type Mono TOPCon
-
No. of Cells:
-
144 (6*24)
-
Dimensions:
-
2279 * 1134 *35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Certificate:
-
CE / CB / TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.39%
-
Warranty:
-
25 Years
-
Brand Name:
-
SunEvo
-
Model Number:
-
Evo 5N 144Cells 560-580W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279 * 1134 *35mm
-
Solar Cells:
-
N-type Mono TOPCon
-
No. of Cells:
-
144 (6*24)
-
Dimensions:
-
2279 * 1134 *35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Certificate:
-
CE / CB / TUV
Solar Panel Detail
|
Module Type: SE5-60H
|
560
|
565
|
570
|
575
|
580
|
|
Maximum power (Pmax/W)
|
560
|
565
|
570
|
575
|
580
|
|
Open Circuit Voltage (Voc/V)
|
51.03
|
51.17
|
51.30
|
51.44
|
51.57
|
|
Short Circuit Current (Isc/A)
|
14.05
|
14.12
|
14.19
|
14.26
|
14.33
|
|
Voltage at Maximum power (Vmpp/V)
|
42.49
|
42.64
|
42.79
|
42.94
|
43.09
|
|
Current Maximum Power (Impp/A)
|
13.18
|
13.25
|
13.32
|
13.39
|
13.46
|
|
MODULE EFFICIENCY (%)
|
21.67
|
21.86
|
22.06
|
22.25
|
22.44
|
Products Series
605 - 630 Watt
555 - 580 Watt
Cells Layout:
144 Half Cells
(6×24)Dimensions:
2279 x 1134 x 30mm
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
505 - 530 Watt
Cells Layout:
132 Half Cells
(6×22)Dimensions:
2279 x 1134 x 30/35mm
Weight: 28.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
Weight: 28.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
465 - 485 Watt
Cells Layout:
120 Half Cells
(6×20)Dimensions:
1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
415 - 435 Watt
Cells Layout:
108 Half Cells
(6×18)Dimensions:
1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Certifications
Smart Manufacturing
Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and efficiency, SunEvo divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
Quality Control
Stringent quality control is the cornerstone of SunEvo's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions. SunEvo has received certifications for Quality Management System (ISO 9001:2015), Environment Management
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
Each solar PV cell string must be tested by EL machine to ensure every single solar cell is perfect.
Each Solar Module must be tested by EL machine before lamination to ensure every solar cell string is perfect.
Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.
Final EL Testing 100% ensure zero intenal electric defect for each solar module.
Output power testing ensure 100% positive power tolerance and excellent power performance.
Each Solar Module must be inspected by QC before packaging to ensure there is no defect during production process.
Product Packaging
Global Project Case
Utility Scale
With years of professional experience, SunEvo can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.
Commercial
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunEvo was, is, and will always be a reliable partner which you won`t regret to choose.
Residential
Thousands of houses around the globe are equipped with SunEvo solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
OEM&ODM Services
Laminated Logo
Laminated Barcode
Product Label
Module Package
Specification Datasheets
Marketing Material
