Quick Details
-
Color:
-
White, Green etc.
-
Size (L*W*H):
-
5270mm*1600mm*2115mm
-
Wheelbase:
-
3235mm
-
Wheelbase front/rear:
-
1415/1340mm
-
Bus weight:
-
1495kg
-
Max total weight:
-
2685kg
-
Rated power:
-
10kw
-
Rated voltage:
-
72v
-
Maximum speed:
-
30km/h
Quick Details
-
Brand Name:
-
Wuling
-
Place of Origin:
-
Chongqing, China
-
Seats:
-
14
-
Color:
-
White, Green etc.
-
Size (L*W*H):
-
5270mm*1600mm*2115mm
-
Wheelbase:
-
3235mm
-
Wheelbase front/rear:
-
1415/1340mm
-
Bus weight:
-
1495kg
-
Max total weight:
-
2685kg
-
Rated power:
-
10kw
-
Rated voltage:
-
72v
-
Maximum speed:
-
30km/h
Product Description
1.

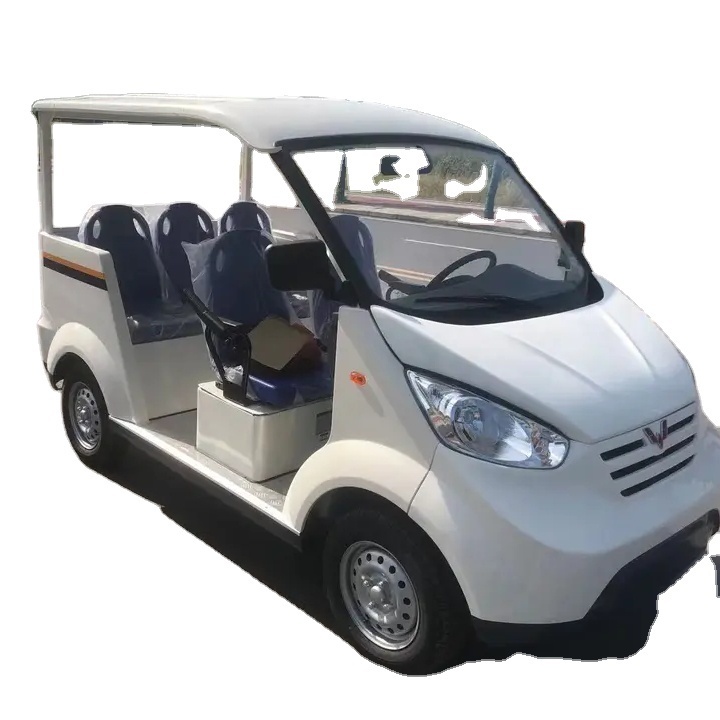

Weiwei Electric sightseeing car is a newly developed rear-drive electric sightseeing car based on the chassis platform of Weiwei Automobile sightseeing car.
2.
Adopt mature and stable DC electric system, equipped with super power battery, Curtis remote control. p
erfect combination, surging power while minimizing power loss, driving range up to 120km.
3.
The use of self-developed patented electronic speed limiter, speed limit driving, in line with the latest international GB/T21268-214 requirements。
4. The models include: 8 seats WLD2081(48V), WLD2081(72v), 11 seats WLD2140(72V), it can be customized according to client's requirements.
Specification
|
Weiwei Electric Sightseeing Bus Parameters
|
|
|
|
|
||||
|
Parameter class
|
Model
|
WLD2081(72V)
|
WLD2111
|
WLD2140
|
||||
|
|
Maximum number of passengers (persons)
|
8
|
11
|
14
|
||||
|
|
Length*Width*Height（mm）
|
3995*1600*2090
|
4615*1600*2090
|
5270*1600*2115
|
||||
|
|
Wheelbase（mm）
|
2615
|
3235
|
3235
|
||||
|
|
Wheelbase front/rear（mm）
|
1415/1340
|
1415/1340
|
1415/1340
|
||||
|
|
Floor height（mm）
|
350
|
350
|
450
|
||||
|
Weight parameter
|
Bus weight（kg）
|
1305
|
1380
|
1495
|
||||
|
|
Max total weight （kg）
|
1985
|
2315
|
2685
|
||||
|
Passability parameter
|
Minimum ground clearance（full load）（mm）
|
110
|
110
|
120
|
||||
|
|
Minimum turning radius（m）
|
6.1
|
7.1
|
7.5
|
||||
|
|
Approach/departure Angle（°）
|
13/16
|
13/16
|
16/14
|
||||
|
Power parameter
|
Motor model
|
Three-phase AC asynchronous
HPQ10-96-18N |
Three-phase AC asynchronous
HPQ10-96-18N |
Three-phase AC asynchronous
HPQ10-96-18N |
||||
|
|
Rated power(kw)
|
10
|
10
|
10
|
||||
|
|
Rated voltage（v）
|
72
|
72
|
72
|
||||
|
|
Power battery pack configuration features
|
72V200Ah Plumbic acid
|
72V200Ah
Plumbic acid
|
72V200Ah
Plumbic acid
|
||||
|
|
Charging time（h）
|
≤14
|
≤14
|
≤14
|
||||
|
|
Maximum speed（km/h）
|
30
|
30
|
30
|
||||
|
|
Maximum gradeability（°/%）
|
11.3/20
|
11.3/20
|
11.3/20
|
||||
|
|
CLTC（unload/full load）（km）
|
130/115
|
125/105
|
115/95
|
||||
Packing & Delivery
Packing:
Wooden case, pallet, iron box or as customer's requirements
Delivery
By sea, by air, by road etc.
