Automatic feeding, wear resistance,high temperature resistance, strongstability and high efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
8500*2200*2200MM
-
Weight:
-
2300 KG
-
Product name:
-
Tree Branch Shredder
-
Core components:
-
motor
-
Applicable industries:
-
Farm,Home use,manufacturing plant
-
Key selling points:
-
Multifunctional, High productivity;
-
Raw material:
-
Wood Log Branch;grains
-
Color:
-
yellow;red;green;custom requirement
-
number cutter:
-
5
-
Keywords:
-
Wood Shredder Crusher Machine
-
Certification:
-
CE;
Quick Details
-
Use:
-
crush wood into chips, chipper;wood cut,wood work
-
Place of Origin:
-
henna
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
8500*2200*2200MM
-
Weight:
-
2300 KG
-
Product name:
-
Tree Branch Shredder
-
Core components:
-
motor
-
Applicable industries:
-
Farm,Home use,manufacturing plant
-
Key selling points:
-
Multifunctional, High productivity;
-
Raw material:
-
Wood Log Branch;grains
-
Color:
-
yellow;red;green;custom requirement
-
number cutter:
-
5
-
Keywords:
-
Wood Shredder Crusher Machine
-
Certification:
-
CE;
40hp mobile home used garden shredder wood tree branch crusher wood branch shredder lea chipper cutting machine wood chipper
1 Product introduction

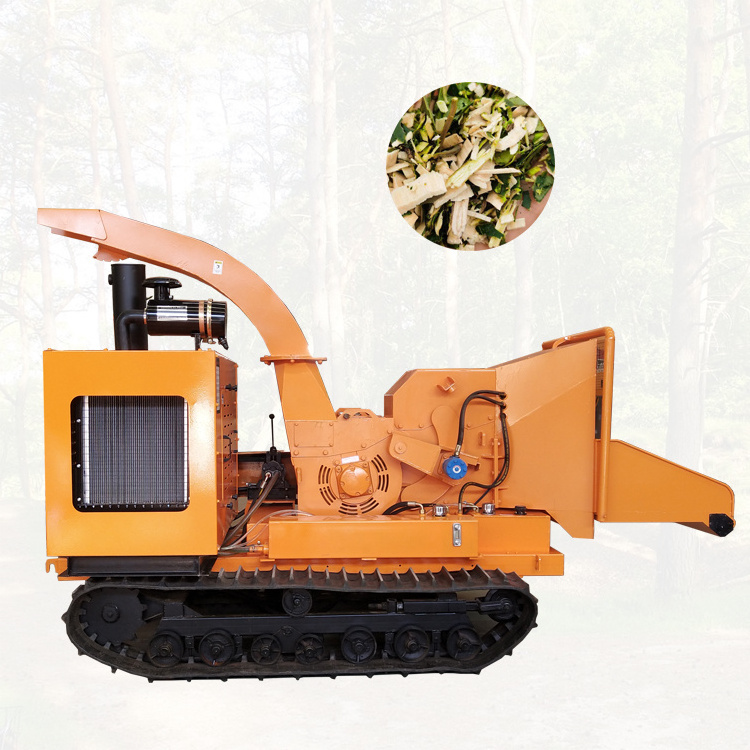

The Diesel Engine and Mobile Forestry Branch logs wood chopper machine wood Chip Crusher manufacture Wood chipper shredder
The hydraulic forced feeding system is conducive to reducing the volume of fluffy branches and feeding quickly. The front pressing roller can prevent the material from flowing back and ensure the safety of use. The drum cutter rotor structure optimizes the cutting effect and can easily crush 15 cm logs to obtain higher output. The finished product is more suitable for making organic fertilizer and ground cover. The
40 HP mobile home used garden shredder wood tree branch crusher wood branch shredder lea chipper cutting machine wood chipper is very easy to operate and very popular.
2 Technical Parameters
|
Model
|
6130 Diesel powered
|
6145 Diesel powered
|
|
Production capacity
|
1-2T/h
|
4-6T/h
|
|
Dimensions
|
L2300*W1300*H1800mm
|
L3200*W1700*H2400mm
|
|
Power
|
25//32/40/55hp diesel engine
|
82/102hp diesel engine
|
|
Start-up method
|
Electric start
|
Electric start
|
|
Rotation speed of main machine
|
2900r/min
|
2200r/min
|
|
Diameter of feed rollers
|
280mm
|
500mm
|
|
Feeding roller power
|
Hydraulic motor
|
Hydraulic motor
|
|
Diameter of knife roller
|
300mm
|
500mm
|
|
Number of blades
|
Movable knife 3 pieces Static knife 1 piece
|
Movable knife 4 pieces Static knife 1 piece
|
|
Blade length
|
300mm
|
230mm
|
|
Cell specification
|
12V 105aH
|
24V 105aH
|
|
Generator power
|
800W
|
800W
|
|
Diesel tank volume
|
20L
|
300A power switch
|
|
Hydraulic oil tank volume
|
25L
|
95L
|
|
Feeding gear
|
In-Reverse-Stop 3-speed manual control
|
In-Reverse-Stop 3-speed manual control
|
|
Inlet size
|
700*500mm
|
1000*740mm
|
|
Feed size
|
300*250mm
|
450*380mm
|
|
Wheel size
|
13" aluminium alloy wheels
|
15" aluminium alloy wheels
|
|
Tyre size
|
165/70r13
|
215/75r15
|
|
Throttle adjustment
|
Integrated throttle-stop operating handle
|
Integrated throttle-stop operating handle
|
|
Discharge opening direction
|
360 degree quick adjustment device, height adjustment of discharge nozzle
|
Tail light, feed light, foldable hand jack, adjustable towing height
|
3 Raw materials
4 Finished Products
5 Show details
Free Mouth
Chips Outlet
360 degree rotating outlet . the woodchips unloading spray distance ismore than 3 meters
Wheels
Durable high-speed tracked wheels suitable for various road conditions
Blade
A8 blade , specially used for branchbreaker , with sharp blade andlong service life
6 Production process
7 Packing ＆ Shipping
The tire and outlet will be removed to reduce the packing volume. When packaging, we always remove it as much as possible without affecting the use and installation of customers.
The frame structure is reinforced inside the box to increase the load-bearing capacity and to reduce the damage of being caused by the stacking of goods .
The wooden box is internally reinforced , and the accessories are individually packaged to prevent objects from colliding with each other
