Quick Details
-
Brand Name:
-
OEM Brand, HSD Cable
-
Port Configuration:
-
1X16,1X32
-
Color:
-
Customized Service
-
Directivity (dB):
-
≥ 55
-
Return Loss (dB):
-
55/50
-
Operating Wavelength(nm):
-
1260~1650
-
Fiber size:
-
0.9, 2.0, 3.0mm
-
Mode:
-
Single mode; Multi-mode
-
Operating Temperature:
-
-40~+85℃
-
Connector:
-
FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
-
Application:
-
FTTH FTTB FTTX Network
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
HC-FC-FPSR16SC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM Brand, HSD Cable
-
Port Configuration:
-
1X16,1X32
-
Color:
-
Customized Service
-
Directivity (dB):
-
≥ 55
-
Return Loss (dB):
-
55/50
-
Operating Wavelength(nm):
-
1260~1650
-
Fiber size:
-
0.9, 2.0, 3.0mm
-
Mode:
-
Single mode; Multi-mode
-
Operating Temperature:
-
-40~+85℃
-
Connector:
-
FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
-
Application:
-
FTTH FTTB FTTX Network
Product Description
Product introduction:

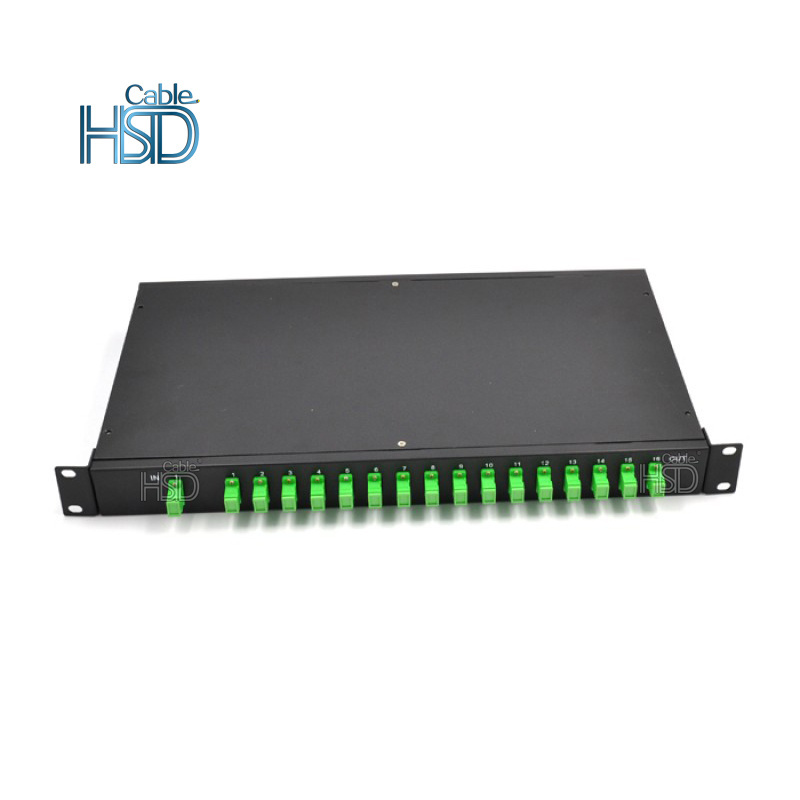

Planar waveguide optical splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide wavelength range, high reliability and good spectral uniformity. Particularly suitable for passive optical networks (EPON, BPON, GPON, etc.) to connect local and terminal devices and achieve optical signal splitting. We can provide 1xN and 2xN series products and customize optical splitters for customers in various situations.
Working environment:
Working temperature: -45℃~+95℃
Environmental humidity: ≤95% (+40℃)
Atmospheric pressure: 60kPa-160kPa
Performance indicators:
Optical Performance Index of 1*N Uniform Spectrophotometer
Optical Performance Index of 2*N Uniform Spectrophotometer
Specification parameter :
|
Port Configuration
|
1X16,1X32
|
|
|
||
|
Color
|
Customized Service
|
|
|
||
|
Directivity (dB)
|
≥ 55
|
|
|
||
|
Return Loss (dB)
|
55/50
|
|
|
||
|
Operating Wavelength(nm)
|
1260~1650
|
|
|
||
|
Fiber size
|
0.9, 2.0, 3.0mm
|
|
|
||
|
Mode
|
Single mode; Multi-mode
|
|
|
||
|
Operating Temperature
|
-40~+85℃
|
|
|
||
|
Connector
|
FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
|
|
|
||
|
Application
|
FTTH FTTB FTTX Network
|
|
|
||
Related Products
The Production Line
Company Culture
Our Advantages
Certifications
FAQ
Q1- Are your manufacturer or trading company ?
A1- We are Factory with
ISO9001-2015 and ETL Certification , it verified by Intertek .
Q2- Can I negotiate the prices ?
A2- Yes, we can provide better discount for valued customers.
Q3- Can you do OEM service ?
A3- Yes, we can print your LOGO on the products.
Q4- How about your delivery time ?
A4- Generally, it will take 3-5 working days. The specific delivery time depends on the items and the quantity of your order.
Q5- How to guarantee the quantity ?
A5- Our products are manufactured strictly in terms of ISO9001-2015 and we provide high-quality and reliable products.
Q6- What if there is quality problem when we received the goods ?
A6- We will Return the payment or Re make the order if it's our production quality problem.Our engineers will provide best
solutions on any of quality feedbacks.
solutions on any of quality feedbacks.
Q7- Can you provide free samples ?
A7- Yes, we can provide free samples, some high value samples cost can return to customer after order too.
Q8- What's your payment term ?
A8- T/T 15-30% as deposit, and 70-85% before delivery. We can support Credit to some of valued and familiar customers.
