Quick Details
-
Brand:
-
JINAO
-
Model:
-
TL Cable Chain
-
Core Components:
-
Material and technical
-
Product Name:
-
Flexible cable channel
-
Structure:
-
Steel Cable Chain
-
Color:
-
Silver Steel Drag Chain
-
Name:
-
Stainless Steel Cable Carrier Chain
-
Purpose:
-
bridge type steel cable drag chain
-
Application:
-
Moving Cable Protection
-
Function:
-
Protected Cables/Wires/Tubes
-
Bend radius:
-
150mm-750mm
-
Certificate:
-
CE ISO9001
-
Title:
-
Welded structure bridge type steel cable drag chain
Quick Details
-
Brand Name:
-
JINAO
-
Material:
-
Stainless Steel /Galvanize
-
Weight (KG):
-
10
-
Brand:
-
JINAO
-
Model:
-
TL Cable Chain
-
Core Components:
-
Material and technical
-
Product Name:
-
Flexible cable channel
-
Structure:
-
Steel Cable Chain
-
Color:
-
Silver Steel Drag Chain
-
Name:
-
Stainless Steel Cable Carrier Chain
-
Purpose:
-
bridge type steel cable drag chain
-
Application:
-
Moving Cable Protection
-
Function:
-
Protected Cables/Wires/Tubes
-
Bend radius:
-
150mm-750mm
-
Certificate:
-
CE ISO9001
-
Title:
-
Welded structure bridge type steel cable drag chain
Metallic Drag Chains:
Features
· We supply high quality metallic and plastic Drag chains as per your requirement.
· Cable carriers or drag chains are simple guides that are used to encompass different types of hoses and cables.
· A drag chain helps to minimize the wear and tear on the hose or cable it protects, while also helping to ease the degree of tangle that can sometimes occur with extended lengths of hose.
· As such, the chain can also be seen as a safety device.
Applications:
· Machine, cranes, car washes, medical and laboratory equipment
· Automatic warehousing
· Forklifts
· Industrial robots
· Offshore oil rigs
· Stage technology
|
Size |
Pitch |
Bending radius |
Inside Height |
Outside height |
Inside Min-width |
Inside Max-hole |
Edge thickness |
|
TL45 |
45 |
50/75/90/114/145 |
16 |
32 |
35 |
18 |
8 |
|
TL65 |
65 |
75/90/115/125/145/185 |
25 |
44 |
50 |
30 |
8 |
|
TL95 |
95 |
115/145/200/250/300 |
48 |
70 |
60 |
48 |
10 |
|
TL115 |
115 |
145/200/225/250/300/350 |
58 |
86 |
70 |
63 |
11 |
|
TL125 |
125 |
200/250/300/250/470/ 500/575/600/700/750 |
68 |
100 |
80 |
68 |
12 |
|
TL155 |
155 |
250/300/350/450/ 490/600/650 |
86 |
120 |
90 |
97 |
13 |
|
TL180 |
180 |
250/300/350/450/ 490/600/650 |
112 |
144 |
100 |
110 |
14 |
|
TL225 |
225 |
400/450/600/750/ 800/850/1000 |
165 |
200 |
160 |
146 |
14 |
|
TL250 |
250 |
400/450/500/600/ 750/800/1000 |
187 |
220 |
190 |
166 |
16 |

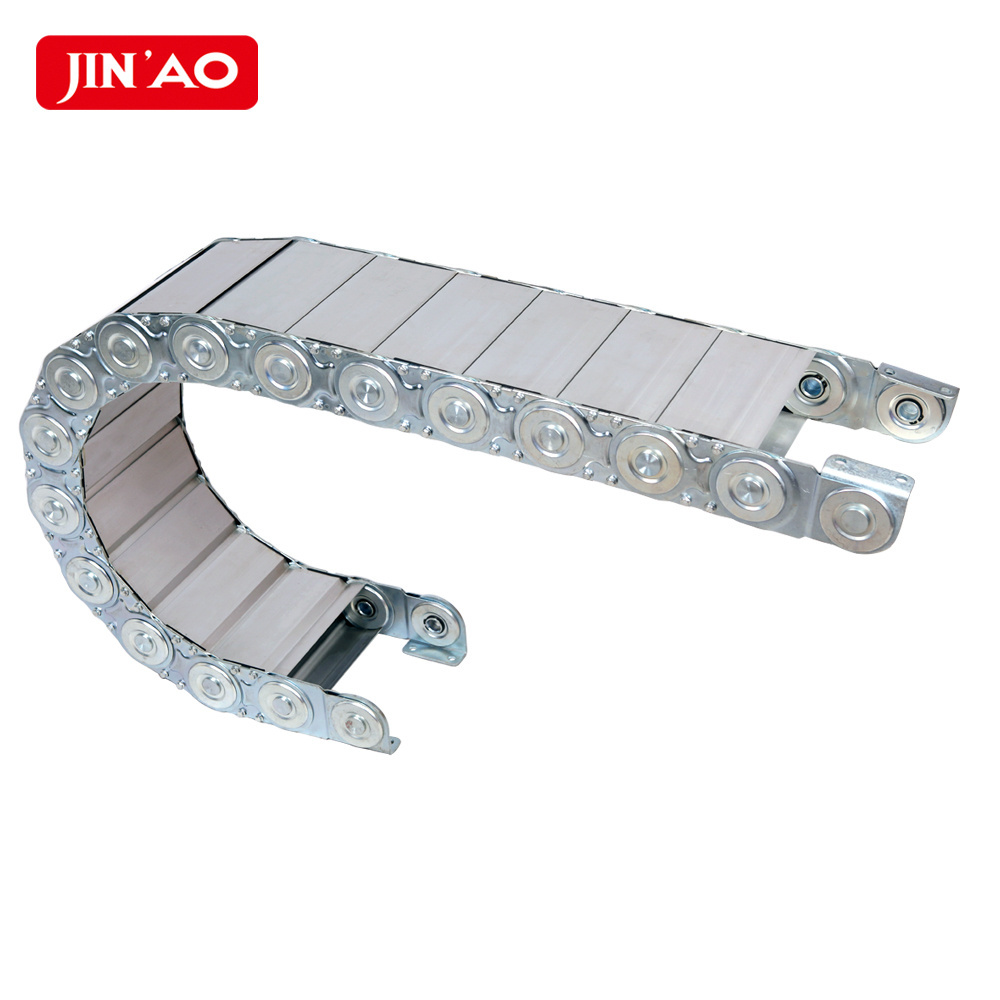

TL Ⅰ Steel cable drag chain
TL Ⅱ Steel cable drag chain
