Quick Details
-
Brand Name:
-
Sinta
-
Model Number:
-
ST-FG
-
Surface Treatment:
-
Anti-skidding,concave,flat
-
Product Item:
-
frp grating frp industrial grating fiberglass plastic grating
-
Sheet Size:
-
1220*3660mm or customized
-
Mesh Size:
-
38*38*19*19*30mm ,50*50/etc.
-
Material:
-
Fiberglass Reinforced Polymer ( GFRP)
-
Color:
-
Yellow, red, white, blue, green etc.
-
OEM:
-
Accepted
-
Customization:
-
Accepted
-
Fiberglass content:
-
24% - 30%
-
Techinique:
-
Molded
-
Sample:
-
Avaible
Quick Details
-
Application:
-
platform, floor, deck, etc
-
Technique:
-
Molded pressing or Pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sinta
-
Model Number:
-
ST-FG
-
Surface Treatment:
-
Anti-skidding,concave,flat
-
Product Item:
-
frp grating frp industrial grating fiberglass plastic grating
-
Sheet Size:
-
1220*3660mm or customized
-
Mesh Size:
-
38*38*19*19*30mm ,50*50/etc.
-
Material:
-
Fiberglass Reinforced Polymer ( GFRP)
-
Color:
-
Yellow, red, white, blue, green etc.
-
OEM:
-
Accepted
-
Customization:
-
Accepted
-
Fiberglass content:
-
24% - 30%
-
Techinique:
-
Molded
-
Sample:
-
Avaible

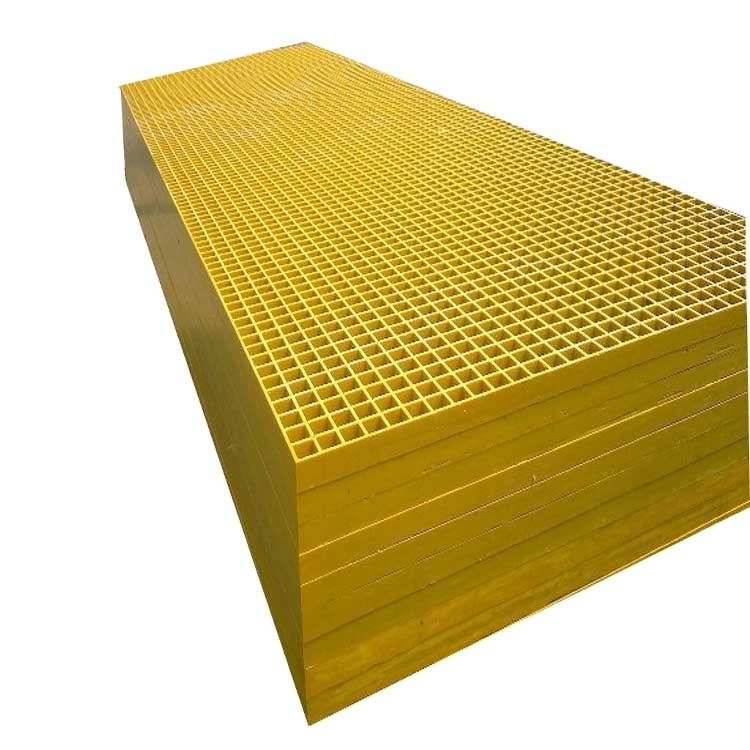

4x8 FRP sheets concave surface frp grating frp industrial grating fiberglass plastic grating
We are professional manufacturer of FRP Grating. welcome to contact us for dfferent specs.
Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protects the fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars are then assembled using two-piece cross bars and epoxy to mechanically join the load bars. Pultruded grating has unidirectional strength, with its much higher glass content resulting in a greater span capability than molded products. This product is usually specified in applications requiring larger spans or heavier loading.
FRP grating is widely used in the fields of petrochemical industry,textile printing and dyeing,food processing, electronics industry,pharmaceutical manufacturing, metal smelting,sewage treatment,transportation,water plant breeding,pulp and paper,shipbuilding,civil architecture etc. The concrete uses include operating platform,overhauling walkways, driling platform,terrace,stair steps,equipment aisle,trench over,boat deck,fence etc.
| Fiberglass Molded Grating Specification | |||
| Mesh Size(mm) | Thickness (mm) | Bar Thickness(mm) | Standard Panel Size(mm) |
| 38x38 | 13 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440,921x3055 |
| 14 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440,921x3055 | |
| 15 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440 | |
| 20 | 6.0/5.0 | 1220x3660,1220x4000,1524x4010,997x3012 | |
| 25 | 6.5/5.0 | 1220x3660,1226x4010,1524x4000,1530x4010,1997x3012 | |
| 30 | 6.5/5.0 | 1220x3660,1220x4010,1524x4010,921x3055 | |
| 38 | 7.0/5.0 | 1220x3660,1220x4010,2100x4240,998x4010,1220x2440,921x3055,1530x4010 | |
| 50 | 9.5/7.5 | 1220x4010,1220x3666,1230x4010,1220x2440,921x3055 | |
| 60 | 10.5/8.5 | 1230x4010 | |
| 70 | 11.0/9.0 | 1230x4010 | |
| 40x40 | 25 | 7.0/5.0 | 1007x3007,1007x4007,1247x4047,1527x4047 |
| 30 | 7.0/5.0 | 1527x4047,1007x3007,1247x4047 | |
| 38 | 7.0/5.0 | 1527x4047,1247x4047,1007x3007,1007x4047 | |
| 40 | 7.0/5.0 | 1527x4047,1007x3007,1007x4047,1247x4047 | |
| 50x50 | 15 | 6.0/5.0 | 1228x4020,1220x3660,1220x2440 |
| 40 | 6.8/5.0 | 1787x4530,1225x4530 | |
| 25 | 7.0/6.0 | 1220x3660,1226x4020,1220x2440,915x3050 | |
| 50 | 8.0/6.0 | 1524x4000,1220x3660,1220x2440,1220x4000 | |
| 83x83 | 38 | 7.0/5.0 | 1007x4007,1007x3007,1007x4255 |
| 40 | 7.0/5.0 | 1007x4007,1007x3007,1007x4255 | |
Features
Frp moldings are very lightweight.
This feature makes them very easy to install and transport from one place to another.
They have high corrosion resistance.
Their high level of resistance to corrosion makes them the idle material for being used to make mainframes and in water treatment plants.
Frp molded gratings are very hard to break.
No truck or human passing on them is heavier enough to break them. It is one of the best features they possess.
Application of fiberglass molded grating
These panels have a wide range of applications. Their durability, resistance to corrosion, strength and impact resistance makes them multipurpose. Its various applications include;
Lube Oil Companies
These places are usually very slippery; they tend to use frp molded gratings to prevent falls.
Creating Walkways
They are hard to break and are woven to give the friction needed on those particular walkways.
Chemical Factories
Their corrosion resistance is brilliant, this makes them very ideal in these industries.
Architectural Uses.
With frp molded gratings, no breakage will be experienced, they are very light to carry and very hard to break.
Product Detail:
|
Item |
Material
|
Mesh Size |
Color |
|
FRP grating(molded type)
|
ECR Glass Fiber ,Resin (ORTHO,ISO,VE,PHENOLIC),Filling (ATH) SMC |
38*38*38/30/25mm,40*40*40mm, 50*50mm etc. |
OEM
|
Benefits of FRP Fibreglass Walkway Grating Supplier Molded Mini Mesh Molded Grating>>
Chemical and Corrosion Resistant;
UV resistant;Light Weight;Maintenance Free;
Fire Retardant Class to ASTM-E84;
Takes Load in Both Directions;Non Conductive
Grit top finish and concave top finish
Construction Application for 38*38mm Fiberglass FRP grating for roofing Pavers GRP glassfiber mesh grid
Product name:FRP GRP grate
Material: Resin(saturated Polyester Resin), Alkali free yarn
Surface Treatment: Grit ; Pattern; concave ; flat
Color: Can choose color according to customer’s requirement, normal colors: yellow , grey, red, blue, green.
High strength-to-weight ratio>
SINTA Molded FRP grating's integral one piece construction, continuous roving's and quality resin has resulted in grating that is half the weight of steel. This then enables a product applicable for access covers, grates, trench covers, below floor level applications as well as less construction support when used as raised flooring.
M clip & bolt flooring covers GRP Grating Fiberglass plastic molded FRP grating for pavement sidewalk packed by wooden pallets
|
|
