Quick Details
-
Output Power:
-
7kW/11kw/22kw
-
product name:
-
Protable EV Charger Station
-
Charging Port:
-
type 1
-
Certificate:
-
CE ROHS
-
Warranty:
-
12 Months
-
Use environment:
-
indoor / outdoor
-
Cable length:
-
5 Meters(UL/TPU)
-
Protection grade:
-
IP65
-
Single package size:
-
285*147*340 mm
-
Standard:
-
IEC 62196-2 IEC 61851-1
-
Leakage protection:
-
A
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DY0340
-
Brand Name:
-
OVROD
-
Output Power:
-
7kW/11kw/22kw
-
product name:
-
Protable EV Charger Station
-
Charging Port:
-
type 1
-
Certificate:
-
CE ROHS
-
Warranty:
-
12 Months
-
Use environment:
-
indoor / outdoor
-
Cable length:
-
5 Meters(UL/TPU)
-
Protection grade:
-
IP65
-
Single package size:
-
285*147*340 mm
-
Standard:
-
IEC 62196-2 IEC 61851-1
-
Leakage protection:
-
A
Details Images
Supported
functions:
display screen, indicator lights, card swiping, Bluetooth
Three types of gun heads(Optional):Type 1/Type 2/Gb/t
Three current
(Optional):
16A/32A/48A
The EU version of the TJ is compatible with most European AC electric vehicles because of the
IEC62196-2 Type 2
, eliminating most brand barriers to electric vehicle owners.
Using a standard
J1772
connector
, the TJ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles. Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi and more; perfect for users that own more than one electric vehicle.

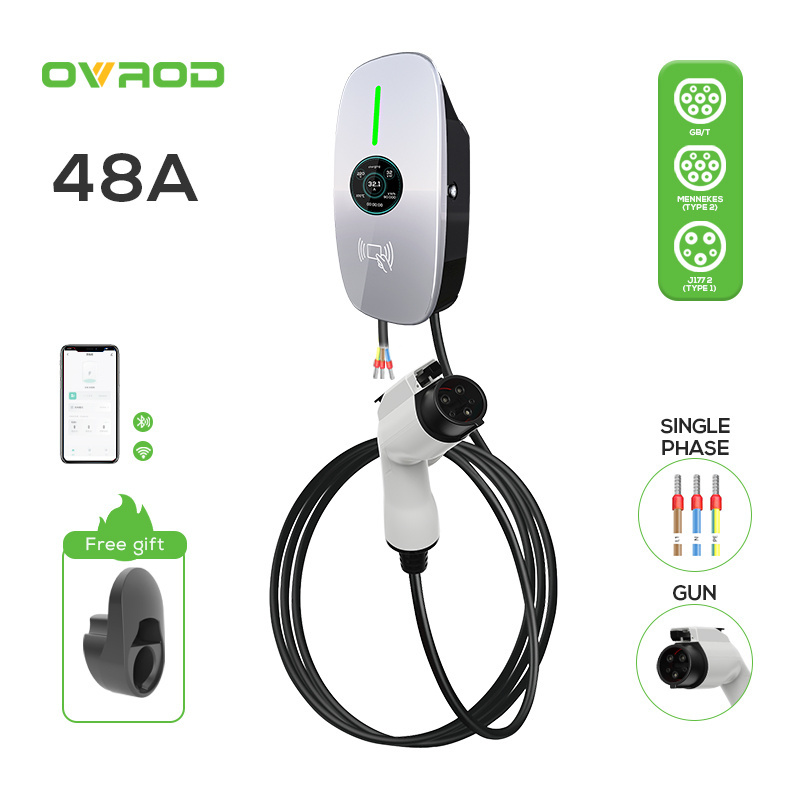

The Ovrod EV Charger has been equipped with multiple safety protection features to ensure the charger is safe for use in any scenario, including Under
Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage Protection (CCID 20), and Lightning protection
.
There are two styles to choose from, wall mounted and floor mounted charging stations. Please choose the style you want.
There are seven colors to choose from. Our stock colors are black and white. If you want other colors, please
contact us
. We provide customization services and can make the product colors you want according to your requirements.
Product Paramenters
|
Regional Standard
|
|
|
|
|||
|
Regional Standard
|
SAE Standard
(US Version) |
IEC Standard
(EU Version) |
IEC Standard
(GBT Version) |
|||
|
Power Specification
|
|
|
|
|||
|
Voltage
|
240Vac±15%
|
230Vac±15% (Single phase)/400Vac±15% (Three phase)
|
220Vac±15% (Single phase)/380Vac±15% (Three phase)
|
|||
|
Power / Amperage |
7kW / 32A
|
7kW / 32A
|
7kW / 32A
|
|||
|
|
11kW / 48A
|
11kW /16A
|
11kW / 16A
|
|||
|
|
-
|
22kW /32A
|
22kW / 32A
|
|||
|
Frequency
|
50-60Hz
|
50-60Hz
|
50-60Hz
|
|||
|
Function
|
|
|
|
|||
|
User Authentication
|
RFID (ISO 14443)
|
|
|
|||
|
Network
|
LAN Standard (4G or Wi-Fi Optional with Surcharge)
|
|
|
|||
|
Connectivity
|
OCPP 1.6 J
|
|
|
|||
|
Protection & Standard
|
|
|
|
|||
|
Certificate
|
CE,RoHS, FCC,ISO
|
-
|
|
|||
|
Charging Interface
|
SAE J1772 , Type 1
|
IEC 62196-2 , Type 2
GB/T2023.42, Type 2 |
|
|||
|
Safety Compliance
|
UL2594 , UL2231-1/-2
|
IEC 61851-1 , IEC 61851-21-2
|
|
|||
|
RCD
|
CCID 20
|
TypeA + DC 6mA
|
|
|||
|
Multiple Protection
|
Overvoltage protection, overcurrent protection, leakage protection, over temperature protection, lightning protection, etc
|
|
|
|||
|
Environmental
|
|
|
|
|||
|
Enclosure Material
|
PC+ASA
|
|
|
|||
|
Operating Temperature
|
-77°F to 122°F
|
-25°C ~ +50°C
|
|
|||
|
Indoor / Outdoor
|
NEMA Type4
|
IP65
|
|
|||
|
Relative Humidit
|
Up to 95% non-condensing
|
|
|
|||
|
Cable Length
|
18ft (5m) Standard , 25ft (7.5m) Optional with Surcharge
|
|
|
|||
