Quick Details
-
Brand Name:
-
LOTER
-
Use:
-
FTTH FTTX
-
Warranty Time:
-
1 year
-
Firmware:
-
English
-
Certificate:
-
CE ROHS FCC
-
Application:
-
FTTH/FTTB/FTTN
-
Packing:
-
Box
-
Warranty:
-
1 Year Warraty
-
Condition:
-
Original 100%
Quick Details
-
Type:
-
ONU
-
Model Number:
-
LOTER9601D01
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOTER
-
Use:
-
FTTH FTTX
-
Warranty Time:
-
1 year
-
Firmware:
-
English
-
Certificate:
-
CE ROHS FCC
-
Application:
-
FTTH/FTTB/FTTN
-
Packing:
-
Box
-
Warranty:
-
1 Year Warraty
-
Condition:
-
Original 100%
Overview
l 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
l 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
l 1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1GE ONU is designed by Realtek chipset 9601D
Feature
l Support s Dual Mode (can access GPON / EPON OLT ) .
l Support s SFU and HGU of EPON CTC 3.0 standard
l S upport s GPON G.984/G.988 standards and IEEE802.3 ah .
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of vlan configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPP O E/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
l Compatible with popular OLT(HW, ZTE, FiberHome , )
|
Technical Item |
Details |
|
PON interface |
1 G PON /EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
|
LED |
4 LED, For Status of POWER ,LOS, PON , LAN |
|
Push-Button |
2, for Function of Power on/off, Reset |
|
Operating condition |
Temperature : 0 ℃ ~+ 5 0 ℃ Humidity :10%~ 90% ( non-condensing ) |
|
Storing Condition |
Temperature : - 40 ℃ ~+ 60 ℃ Humidity :10%~ 90% ( non-condensing ) |
|
Power supply |
DC 12V/ 1 A |
|
Power Consumption |
<3W |
|
Net Weight |
<0. 2 kg |
Panel lights and Introduction
|
Pilot |
Status |
Description |
|
POWER |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN |
On |
Port is connected properly (LINK). |
|
Blink |
Port is sending or/and receiving data (ACT). |
|
|
Off |
Port connection exception or not connected. |
Application
l Typical Solution: FTTO(Office) , FTTB(Building) , FTTH(Home)
Typical Service: Broadband Internet access, IPTV, VOD ( video on demand ) , video surveillance, etc.

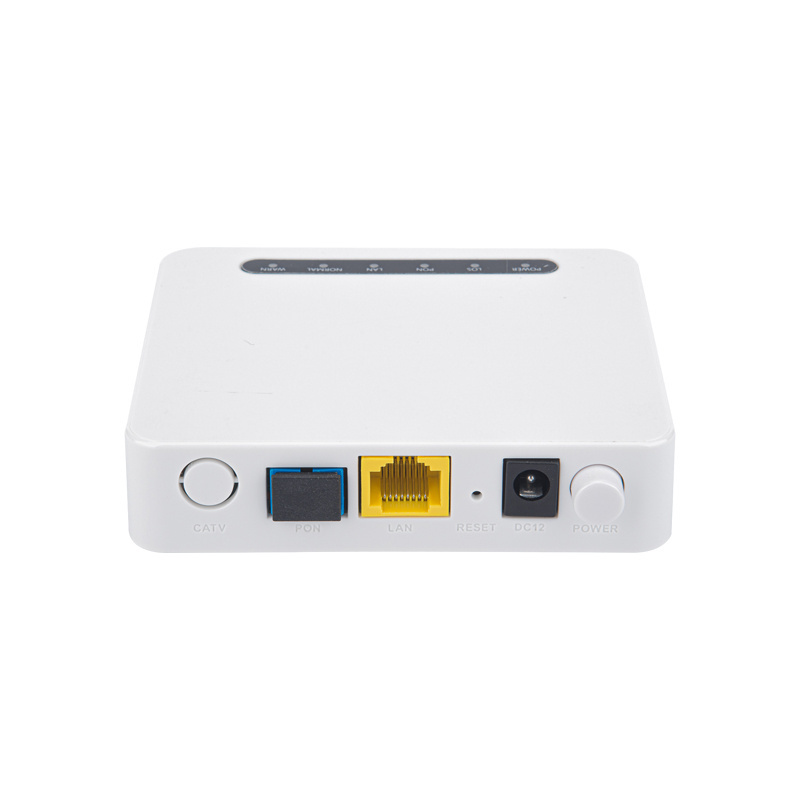

Detailed Images
