* Entrance, Privacy, Passage are available*Fit all standard doors form 1-3/8" to 1-3/4" (35mm to 45mm) thickness. Also can fit 2'' (50mm) thickness doors upon request .
*Brass knob, Stainless steel knob or Wooden knob are available.
* 65mm Rosette
*Fixed 2-3/8" or 2-3/4" (60mm or 70mm) backset latch.
*US3, US5, US10B, US15, US15A, US26, US26D or US10B finishes available.
*Brass cylinder with nickel plated brass keys and 5-pin tumbler mechanism.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
SS,SN,PB
-
Latch:
-
60-70mm
-
Roseta:
-
65/75mm
-
Packing:
-
Double Blister/box
-
Logo:
-
Accept Customize LOGO
-
Key:
-
3 Brass Keys
-
Payment:
-
T/T
-
MOQ:
-
500PCS
-
Cylinder:
-
Solid Brass Cylinder
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IS
-
Material:
-
Zinc Alloy,Stainless Steel
-
Color:
-
SS,SN,PB
-
Latch:
-
60-70mm
-
Roseta:
-
65/75mm
-
Packing:
-
Double Blister/box
-
Logo:
-
Accept Customize LOGO
-
Key:
-
3 Brass Keys
-
Payment:
-
T/T
-
MOQ:
-
500PCS
-
Cylinder:
-
Solid Brass Cylinder
Why Choose Us
We are factory and have many years OEM experience for many brands.
Product Description
|
Door Prep
|
Cross bore 54mm, Edge bore 25mm, Latch face 25*57mm
|
|
Door Thick
|
Fit wood or metal doors from 35mm to 50mm thick as tandard
|
|
Rose
|
65mm & 75mm
|
|
Backset
|
Standard 60mm - 70mm and adjustable latch also available per request.
|
|
Latch Bolt
|
12mm latch extension. 70mm curved lip strike as standard.
57mm strike available upon request. Dead locking for keyed functions.
|
|
Cylinder
|
5 pin tumbler cylinder as standard, 6 pin tumbler removable & rekeyable cylinder also available. Schlage C keyway or Kwikset or C4 keyway and other optional.
|
|
Faceplate
|
Square corner 25*57mm standard. Radius corner also available.
|
|
Strike
|
Full lip D-shape 44*57mm square or radius stanard, T-Shape 44*70mm Square corner standard.
|
|
Handing
|
Fully reversible for either right or left hand door
|
|
Sample
|
Available
|
|
Finishing
|
SS,SP,PB,SC And other optional
|
|
Function
|
ET, BK,PS, ST,CL, HT,DM
|
|
Key Way
|
Computer, Schlage, C4 or required KA with deadbolt to improve security
|
|
AB(Antique Brass)
|
BS(Brass Self Color)
|
BB (Brass Brushed)
|
AC (Antique Copper)
|
|
AC (Antique Copper)
|
BP(Brass Plated)
|
PB(Polished Brass Plated)
|
NB (Nickel Brushed)
|

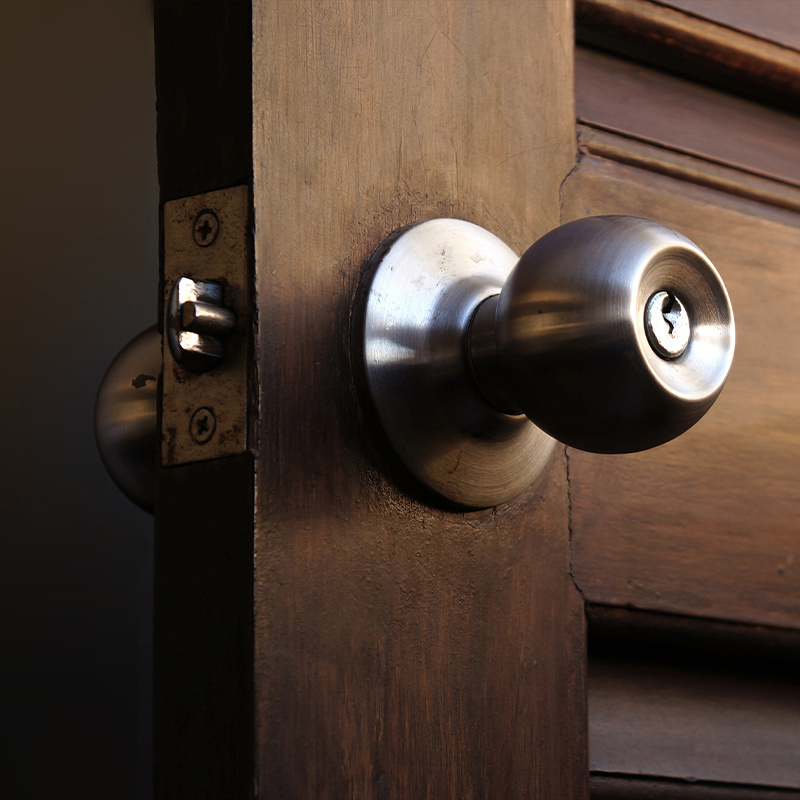

KNOB LOCK
Product packaging
