- Die-casting aluminum lamp body, excellent heat dissipation
- Milky white PC cover, high impact resistance, IK10 approval
- IP65 waterproof, dustproof for indoor and outdoor lighting
- 304 stainless steel hexagon socket head cap screws
- Can add with 0-100% microwave sensor, dimming sensor sensor
- emergency function 3 hours
- Black/white/grey aluminum housing color available
- Glow wire test at 850 degrees pass NF EN 60698-2-1, VDE approval
- Install style: Wall mounted; Surface mounted
- Certification: CE/RoHS/SAA/IP65/IK10
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hofoled
-
Model Number:
-
HF-CL20R275
-
Luminous Efficacy(lm/w):
-
1800
-
Item Type:
-
Outdoor Wall Lights
-
Lamp Body Material:
-
Aluminum
-
IP Rating:
-
IP65
-
Application:
-
Residential
-
Luminous efficiency:
-
90LM/W
-
Material:
-
Die cast aluminum body,PC cover
-
Color Temperature:
-
Warm Whit:2800-3000K/Nature White:4000-4500K/Cool White:6000-6500K
-
Product size:
-
275*275*80mm
-
Carton size(5pcs):
-
460*320*320mm
-
Certification:
-
CE RoHS SAA IP65 IK10
Quick Details
-
Lamp Power(W):
-
20
-
Warranty(Year):
-
3-Year
-
Lighting solutions service:
-
Lighting and circuitry design, Project Installation
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hofoled
-
Model Number:
-
HF-CL20R275
-
Luminous Efficacy(lm/w):
-
1800
-
Item Type:
-
Outdoor Wall Lights
-
Lamp Body Material:
-
Aluminum
-
IP Rating:
-
IP65
-
Application:
-
Residential
-
Luminous efficiency:
-
90LM/W
-
Material:
-
Die cast aluminum body,PC cover
-
Color Temperature:
-
Warm Whit:2800-3000K/Nature White:4000-4500K/Cool White:6000-6500K
-
Product size:
-
275*275*80mm
-
Carton size(5pcs):
-
460*320*320mm
-
Certification:
-
CE RoHS SAA IP65 IK10
Products Description
Product Paramenters
|
Product Name
|

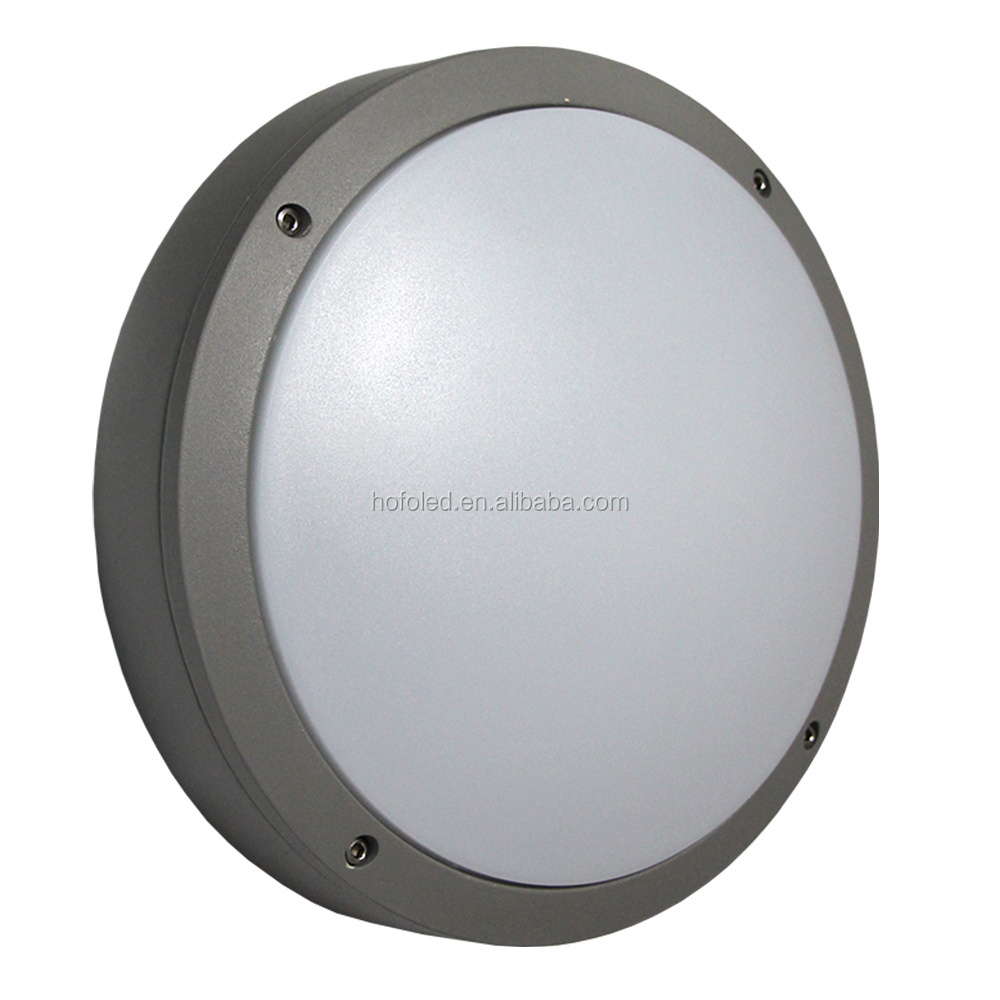

Round 20W LED Ceiling Light WIth Emergency
|
|
Material
|
Die casting aluminmu lamp body
Milky white PC cover |
|
Power
|
20 watts
|
|
Voltage
|
AC100-277V
|
|
Type of Lamp-house
|
LED Ceiling Light
LED Wall Light |
|
Model
|
HF-CL20R275
|
|
Style
|
Modern Wall Surface Mounted LED Ceiling Light
|
|
Model |
HF-CL20R275 |
|
Power |
20 Watt |
|
Luminous Flux |
1800Lm |
|
Luminous efficiency |
90LM/W |
|
LED Chip |
Epistar SMD |
|
Input Voltage |
AC220-240V/50-60 Hz |
|
Output Voltage |
30-36V |
|
Output Current |
0.6A |
|
Lighting Angle |
120° |
|
Material |
Die cast aluminum body,PC cover |
|
Color Rendering Index |
Ra>80 |
|
Power Factor |
> 0.90 |
|
Environment Temperature |
-30/+60 ℃ |
|
Function |
built-in sensor |
|
IP Rating |
IP65 |
|
Color Temperature |
Warm Whit:2800-3000K |
|
Nature White:4000-4500K |
|
|
Cool White:6000-6500K |
|
|
Product size |
275*275*80mm |
|
Carton size(5pcs) |
460*310*320mm |
|
N.W/G.W |
1.5KG/8.5KG |
|
Certification |
CE RoHS SAA IP65 IK10 |
Function
1. Can add Microwave Motion Sensor Function
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Can add emergency function:
Input Voltage: AC 100-277V 50/60Hz Standard Power: 20W
Emergency Power: 8W(SMD 2835) Continuous Illumination: 180 minutes
Battery: LIR 7.4V 4400MAH Recharging time >24 hours
Over-discharge protection: Yes Battery warranty: 2 years
3. Motion Sensor + Emergency function for complete use
4. Dimmable Function
Flick free and soft dimming in any power or brightness.Built-in dual independent constant
current output,through a total anode connection to achieve stepless,dimming and color
temperature adjustment function.
1).1-10V PWM dimmable
2).Triac dimmable
3).DALI dimmable
4).CCT adjustment dimmable
Application
1. Restaurant / Hotel /Supermarket 2. Showroom / Meeting rooms 3. Factories & Offices 4. Commercial complexes / exhibition hall 5. School, Colleges & Universities 6. Hospital / Classrooms / Underground Park 7. Bathroom, Kitchen, Toilet, Corridor, Living room, Bedroom, Spa room, Hotel, Hospital, Showcase, Warehouse, Supermarket, Department store. 8. Places where need energy saving and high color rendering index lighting
