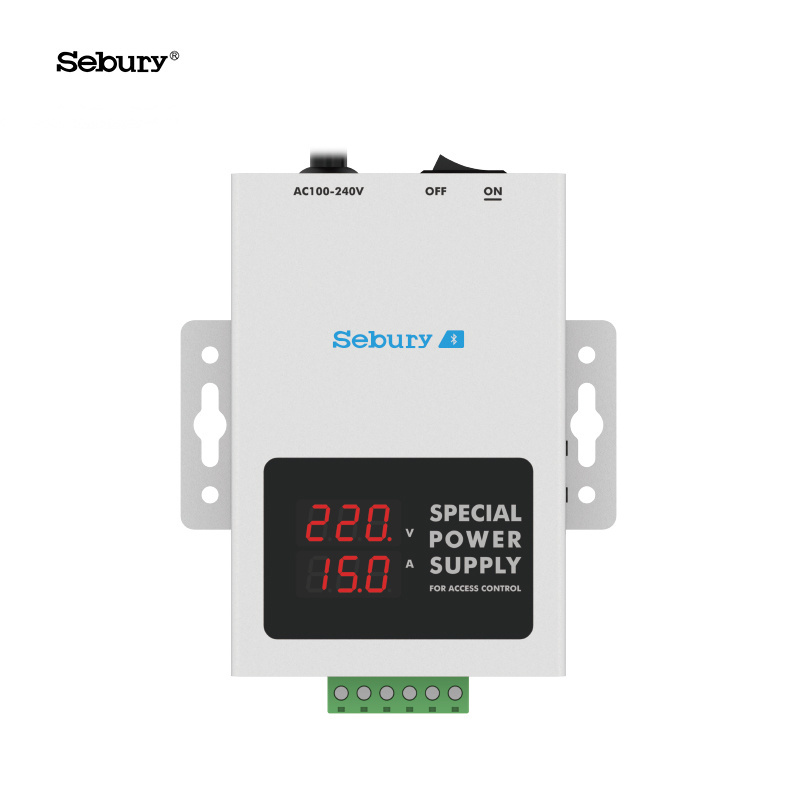

This product adopts a metal structure, a single chip of highly integrated switching power supply, and low-power synchronous rectification technology. It is a new generation of high-efficiency green environmental protection dedicated power supply for access control. The control circuit adopts MCU and precise LED digital display technology to intuitively indicate the output voltage and current, and adjust the opening time. Powerful self-recovery over-current or short-circuit protection makes the access control system safer and more reliable. Equipped with advanced Bluetooth technology, any traditional access control system can be instantly upgraded to open the door with a mobile phone. This product can provide professional power protection for various access control systems.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sebury
-
Model Number:
-
SPS
-
Output Frequency:
-
50 Hz ~ 60 Hz
-
Output Current:
-
0.5A/1.5A
-
Product Name:
-
Access Control Power Supply
-
Model:
-
SPS
-
Material:
-
Zinc alloy
-
Dimension:
-
105*93.8*35mm
-
Input current:
-
0.5A/1.5A
-
Weight:
-
0.5Kg
-
MOQ:
-
1pcs
-
Type:
-
Door Use
-
Warranty:
-
1 Year
Quick Details
-
Output Power:
-
1 - 50W
-
Input Voltage:
-
AC100-240V, DC12V
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sebury
-
Model Number:
-
SPS
-
Output Frequency:
-
50 Hz ~ 60 Hz
-
Output Current:
-
0.5A/1.5A
-
Product Name:
-
Access Control Power Supply
-
Model:
-
SPS
-
Material:
-
Zinc alloy
-
Dimension:
-
105*93.8*35mm
-
Input current:
-
0.5A/1.5A
-
Weight:
-
0.5Kg
-
MOQ:
-
1pcs
-
Type:
-
Door Use
-
Warranty:
-
1 Year
Product Description
|
Main parameters
|
|
|
|
Input voltage
|
AC100-240V/50-60Hz
|
|
|
+12V/GND terminal output
|
DC12V/0.5A
|
|
|
+NC (+NO)/-COM terminal output
|
DC12V/1.5A
|
|
|
Opening time
|
0-99s (0 is 50ms)
|
|
|
+12V/GND terminal overcurrent protection
|
when >0.5A, the output will be turned off, and it will be automatically restored within 5s after the overcurrent is released.
|
|
|
PUSH input voltage
|
0-12V, unlock when falling edge
|
|
|
Output voltage display accuracy
|
0.1V
|
|
|
Output current display accuracy
|
0.01A
|
|
|
Bluetooth module working frequency
|
2.4GHz
|
|
|
Working temperature
|
-40～50℃
|
|
|
Working humidity
|
0～90%
|
|
|
Dimension
|
105*93.8*35mm
|
|
