Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AINING
-
Model Number:
-
ENNi-1
-
Operating Current:
-
DC AC
-
Application:
-
welding defects for gray cast iron
-
Product Name:
-
Cast Iron Welding Electrode
Quick Details
-
Material:
-
Cast Iron
-
Welding Current:
-
50-240A
-
Operating Temperature:
-
5-50
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AINING
-
Model Number:
-
ENNi-1
-
Operating Current:
-
DC AC
-
Application:
-
welding defects for gray cast iron
-
Product Name:
-
Cast Iron Welding Electrode

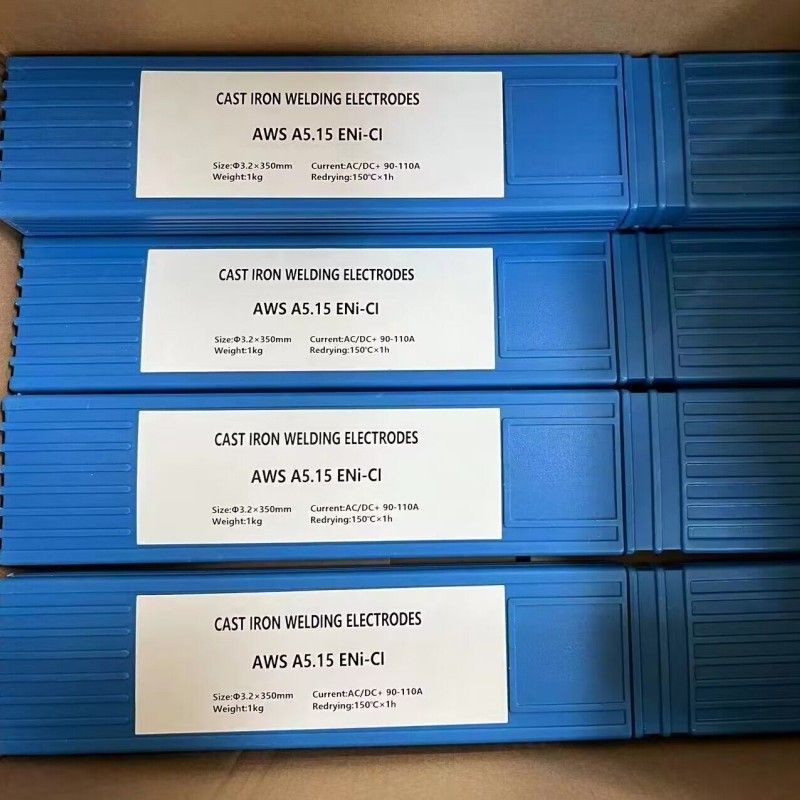

1/8 ENi-Ci (E-Ni 99%) Cast Iron Welding Electrode / Rod
| Product |
E6013 , E6011,E6010,E7018,J422 , stainless steel welding rod E308, E309,E316 |
| Size | 2.0x300mm,2.5x300mm,3.2x350mm,3.2x400mm,4.0x400mm,4.0x450mm |
| Brand | We can customized the carton and brand. |
| Packing |
2.5kg/inner box, 8boxes/carton 5kg/ineer box, 4boxes/carton 1ton or 2 ton / pallet |
Z308 Cast Iron Welding Electrode
Accord with:GB/T 10044 EZNi-1
Equivalent norm: AWS A5.15 ENi-C1
Description:
Z308 is a covered welding electrode with pure nickel core and graphitic coating for cast iron. The Weld seam metal has excellent machinability and crack resistibility. Both AC and DC can be applied.
Applications:
It is used for repairing welding thin pieces and processing surface of cast iron, as well as important grey cast iron pieces, such as engine gear box, machining tools, guideway, etc
Stainless steel Welding Rod E308 E316 E309 E304...
Welding Electrode AWS E6013 is a low carton steel electrode with high titanium-potassium type coating, and suitable for both AC and DC.
Welding Electrode AWS E7018 is a high-quality carbon steel electrode with iron powder and low hydrogen potassium type coating.can weld mild steel, weld high strength and low alloy steel.
Welding Electrode AWSE6011 and E6010 are special carbon steel electrodes for vertical down welding with cellulose potassium coating. It is used for butt, fillet and lap welding of thin plate structures, such as air ducts, flues, oil tanks of transformers, ship hulls, etc.
It's easy to ignite and restrike the arc.
The slag is fluid and when harded it is impact and easy to remove.
Besides it has less smoke
Usually one 20ft container can load 1250 cartons, 25 MT. If the shipping line agrees, it can be loaded into 1350 cartons, 27 MT. One MT is about 0.6 CBM, one carton is 20kg.
Usually the package is following:
Size: 2.5mm*300mm,
package: 2.5 kg/inner box, 8 boxes/ carton=20kg,
Size: 3.2mm*350mm,
package: 5.0 kg/inner box, 4 boxes/ carton=20kg,
Size: 4.0mm*400mm,
package:5.0 kg/inner box, 4 boxes/ carton=20kg.
Inner box is a shrink-wrapped cardboard box.
Moreover, we can do it on pallets as client’s request: 1MT/ Pallet or 2 MT/ Pallet.
