Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SUCCESS
-
Model Number:
-
Spiral Quartz Glass Tube
-
Color:
-
Transparent
-
Product Name:
-

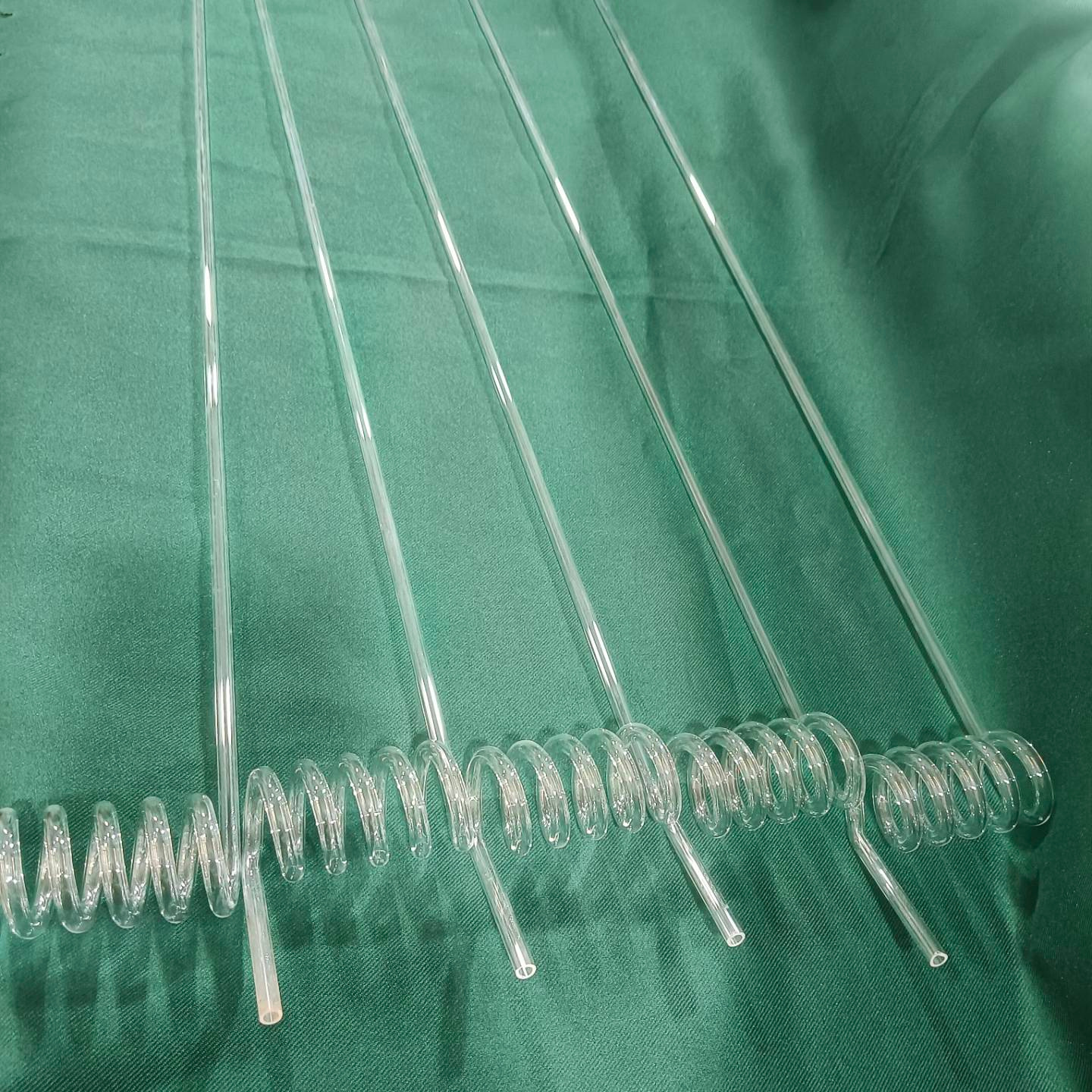

Clear Quartz Glass Coil Tube Spiral Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz glass
-
Length:
-
Customers' Requirements
-
MOQ:
-
1 PC
-
Operating Temperature::
-
1250℃
-
SoftenTemperature:
-
1730℃
-
High transmission:
-
above 85%
-
OEM:
-
Accept
-
Density:
-
2.2g/cm3
-
Package:
-
Standard Export Packing
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Heating
-
Outside Diameter:
-
8mm-50mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SUCCESS
-
Model Number:
-
Spiral Quartz Glass Tube
-
Color:
-
Transparent
-
Product Name:
-
Clear Quartz Glass Coil Tube Spiral Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz glass
-
Length:
-
Customers' Requirements
-
MOQ:
-
1 PC
-
Operating Temperature::
-
1250℃
-
SoftenTemperature:
-
1730℃
-
High transmission:
-
above 85%
-
OEM:
-
Accept
-
Density:
-
2.2g/cm3
-
Package:
-
Standard Export Packing
1. High purity :SiO2> 99.99%.
2. Resistant high temperature.
Working Temperature: 1250℃; Soften Temperature: 1730℃ .
3. Acid-resistance,alkali resistance.
4. No air bubble and no air line on surface.
5. Excellent electrical insulator.
6. High transmittance: 85%-95%.
|
Product Name
|
SUCCESS Customized Helical Quartz Glass Tube
|
|
Material
|
99.99% Pure Quartz Crystal
|
|
Color
|
Transparent
|
|
Size
|
1. Diameter: 1.5-450mm,thickness 0.5-10mm.
2. Thickness: 0.5-10mm.
3. Length: 10-3500mm.
4. OEM: All different sizes can be done according to customer's demand.
|
|
Aplication
|
Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other.
|
|
Property
|
Value
|
|
Density
|
2.2g/cm
3
|
|
Hardness
|
570KHN
100
|
|
Tensile strength
|
4.8×10
7
Pa(N/m
2
)
|
|
Compression strength
|
>1.1×10
9
Pa
|
|
Coefficient of thermal expansion (20℃-300℃)
|
5.5×10
-7
cm/cm℃
|
|
Thermal conductivity (20℃)
|
1.4W/m℃
|
|
Specific heat(20℃)
|
660J/kg℃
|
|
Softening point
|
1730℃
|
|
Annealing point
|
1250℃
|
Packing Details
:
Standard Export Package
Delivery Details
:
By Sea Or Air For Batch Goods.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer offer any customized service.
Q: How long is your delivery time?
A:Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but it doesn't free.
Q: What is your terms of payment ?
A: 100% in advance.
