Quick Details
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-400WSD
-
Color Temperature(CCT):
-
5700K, warm white, natural white, pure white, cold white
-
Beam Angle(°):
-
60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Working Lifetime(Hour):
-
50000
-
Support Dimmer:
-
yes
-
Power Driver:
-
Meanwell playground outdoor lights
-
Wattage options:
-
50w-500w beach tennis light
-
Dimming Function:
-
1-10v, PWM, DALI dimmable outdoor floodlights led
-
Warranty:
-
5-year led flood lamp
-
Voltage:
-
110v, 220v, 347v, 480v reflector led industrial
-
Replacement:
-
1000w metal halide light/ halogen light
Quick Details
-
Lamp Luminous Flux(lm):
-
70000, 52000 led flood lamp bulb
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-400WSD
-
Color Temperature(CCT):
-
5700K, warm white, natural white, pure white, cold white
-
Beam Angle(°):
-
60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Working Lifetime(Hour):
-
50000
-
Support Dimmer:
-
yes
-
Power Driver:
-
Meanwell playground outdoor lights
-
Wattage options:
-
50w-500w beach tennis light
-
Dimming Function:
-
1-10v, PWM, DALI dimmable outdoor floodlights led
-
Warranty:
-
5-year led flood lamp
-
Voltage:
-
110v, 220v, 347v, 480v reflector led industrial
-
Replacement:
-
1000w metal halide light/ halogen light
Features of led flood light for football field, tennis court, padel court, horse riding, warehouse, parking lot, plaza, etc..
1. 50/100/150/200/250/300/400/500w
2. AC100-277V
3. 5 years warranty
4. CE RoHS SAA C-tik EMC LVD FCC certificated
soccer field parking lot garage waterproof led flood light 400 watt
| 400W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-400WSD | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| Lamp Driver | Meanwell *2PCS | ||
| LED Chip: | SMD3030 | ||
| LED Power | 400W | ||
| LED Working Voltage: | DC36 ~42V | ||
| System Consumption: | 405W | ||
| LED Luminous Flux | Warm White | 43000LM | |
| Pure White | 44000LM | ||
| Cool White | 44000LM | ||
| Viewing Angle: | 60/90/60*150° | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+The secondary light distribution lens | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –35℃~55℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| The color of the lamp shell | Black | ||
| Warranty | 5 years | ||
| Size: | 598*373*130mm | ||

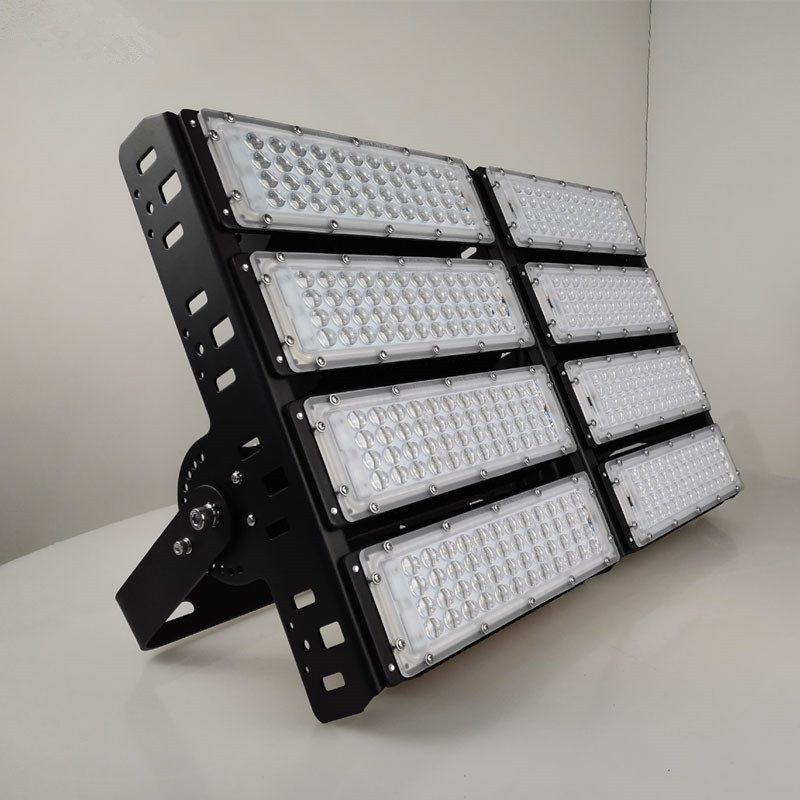

Images of 400w led flood light
Strict tests of led flood light
All our LED flood lights will be tested before shipping,so that we can ensure the quality and light performance, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.
Installation information of led flood light
1. Check all the parts and accessories of LED flood lights;
2. Must cut off the power supply before installation;
3. Make sure LED flood light is fixed tightly to the surface of place for installation;
4. Connect the power line of light with power supply, then switch on the power;
5. When the flood lamp is working, it must be kept vertical downward.
Illuminance distribution of 400w led flood light
Dimension of 400w led flood light
More choices for led flood light
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer 5 year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packaging details about led floodlight
| Item | Dimension | Carton Size | Gross Weight | Packaging |
| 50w led flood light | 315*93*130mm | 33*22*22cm | 4.9KG | 2PCS/carton |
| 100W led flood light | 315*180*130mm | 35*26*16cm | 4.5KG | 1PCS/carton |
| 150W led flood light | 315*270*130mm | 35*31*16cm | 5.5KG | 1PCS/carton |
| 200W led flood light | 315*373*130mm | 39*35*16cm | 7KG | 1PCS/carton |
| 250W led flood light | 315*463*130mm | 55*35*16cm | 8.9KG | 1PCS/carton |
| 300W led flood light | 598*283*130mm | 64*33*17cm | 10.5KG | 1PCS/carton |
| 400W led flood light | 598*373*130mm | 64*44*19cm | 13KG | 1PCS/carton |
| 500W led flood light | 598*453*130mm | 63*53*17cm | 15KG | 1PCS/carton |
Shipping ways
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
