Quick Details
-
Model Number:
-
IBD35
-
Place of Origin:
-
Zhejiang, China
-
Usage:
-
Water
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Vortex Pump
-
Certificate:
-
CE Certificate
-
Color:
-
Can be customzed
-
Voltage:
-
110V/ 220V
-
Warranty:
-
1 Year
-
Pump body:
-
Cast Iron Pump
-
Insulation:
-
F class
Quick Details
-
Application:
-
Other
-
Pressure:
-
High Pressure
-
Brand Name:
-
SY
-
Model Number:
-
IBD35
-
Place of Origin:
-
Zhejiang, China
-
Usage:
-
Water
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Vortex Pump
-
Certificate:
-
CE Certificate
-
Color:
-
Can be customzed
-
Voltage:
-
110V/ 220V
-
Warranty:
-
1 Year
-
Pump body:
-
Cast Iron Pump
-
Insulation:
-
F class

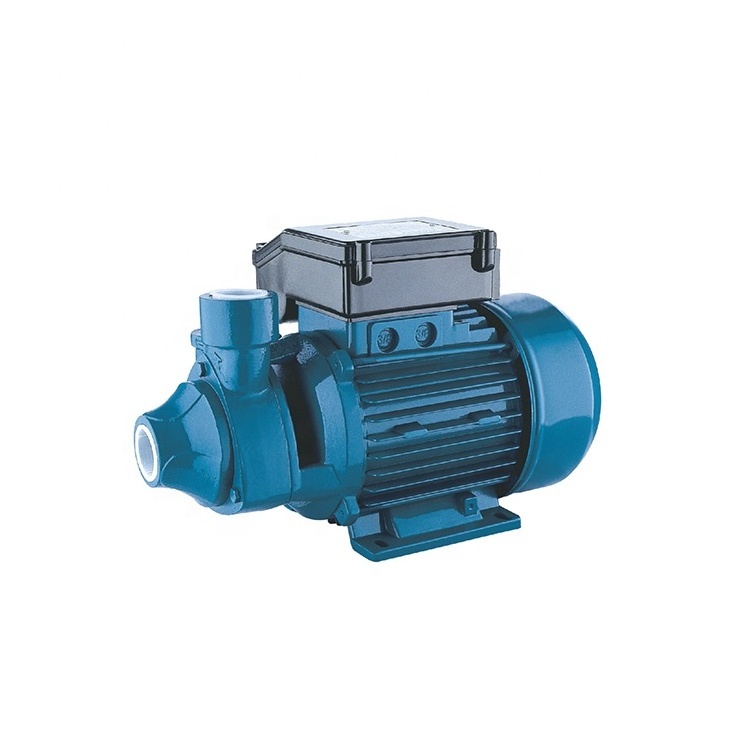

Idb-35 Agriculture Water Pump supply Idb-50 Electric Garden Pump
Performance Range
• Flow rate up to 45L/min(2.7m³/h)
• HEAD up to 55m
Operating Limits
• Suction lift up to 9m
• Fluid temperature up to 60℃
• Maximum ambient temperature 40℃
Standard Data And Equipment
Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft,with thermal protector inside.Other model and material such as three phase,110V,60Hz, dual voltage, stainless shaft,ect, will be available upon request.
|
Pos.component |
Construction Characteristics |
|
1.Pump body |
Cast iron,complete with threaded parts in compliance with ISO228/1 |
|
Motor bracket |
Aluminum with brass insert(patented), reduces the risk of impeller seizure |
|
3.Impeller |
Brass,with peripheral radial vanes seizure |
|
4.Motor Shaft |
Stainless steel EN 10088-3-1.14104 |
|
5.Mechanical seal |
Pump seal shaft Material Model model Diameter stationary ring /rotational ring/elastomer IDB35 AR-12 12mm ceramic/graphite/NBR IDB45-55 AR-14 14mm ceramic/graphite/NBR
|
|
6.Bearings |
Pump Model IDB35 6201zz/6201zz IDB45-55 6202zz/6202zz |
|
7.Capacitor |
Pump capacitance Single-phase (230V/240V) 110V IDB35 10uF450VL 25uF250V IDB45 16uf450VL 30uF300VL IDB55 20uF450VL 40uF300VL |
|
8.Electric motor |
IDB:single-phase 230V-50Hz with thermal overload protector built-in to the winding. IDB: Three-phase230/400V-50Hz. Pumps fitted with the three-phase motor option offer IE2(IEC60034-30)class high performance. Insulation:F class Protection: IP X4 |
1) We are very glad that customer give us some suggestion for price,Products and Service
2) for all our order we provide 1% quick-wear part
3) Warranty time: mainly is one year, upon the specific product.
4) any question or idea, welcome to inform us, we very are happy to deal with it.
