Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
Tianchen laser
-
Weight (KG):
-
4600 KG
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
China
-
Brand Name:
-
Tianchen laser
-
Weight (KG):
-
4600 KG
1.Whole Machine welded bed structure,Stable performance,could ensure the stable operation of equipment
2.After 650℃ high temperature heat treatment Machine bed, adopt large Gantry milling accuracy process, ensure machine bed stability and smoothness.
3.Operating system, man-machine interface, easy to operate
4.High quality, high efficiency fiber laser producer. low processing cost and energy conservation and environment protection
5.Servo drive,The structure of the machine tool adopts rack and pinion drive,Ensure equipment high speed , high accuracy, and high reliability
6. Fast delivery 1kw high power CNC metal sheet pipe fiber laser cutting machine , 1000W, 1500W, 2000W, 3000W, 6000W, 8000W fiber laser power available
7. laser cutting machine adopts IPG, N-light, RAYCUS fiber laser source brand available
8. High speed, high accuracy, stable performance, best quality
9. Support Factory Inspection

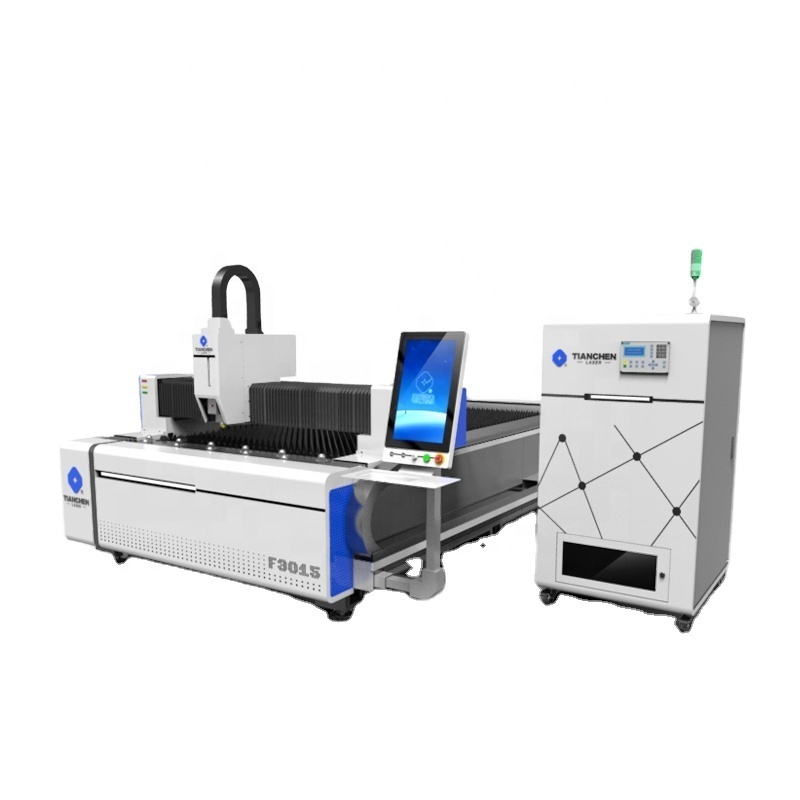

Technical Parameters
|
Model |
TC-F3015 |
|
Working Area |
3000*1500mm |
|
X Axis Displacement |
3030mm |
|
Y Axis Displacement |
1520mm |
|
Position Accuracy |
0.03mm/m |
|
Repeat Positional Accuracy |
0.02mm/m |
|
Max Moving Speed |
140m/min |
|
Max Acceleration |
1.4G |
|
Control System |
CYPCUT |
|
Machine Weight |
6500KG |
|
Boundary Dimension |
4570*2880*1900mm |
1. Plate Welding Bed body (no deformation, good damping effect);
2. Switzerland RAYTOOLS laser head, Japan YASKAWA servo motor, Japan SHIMPO reducer
3. Taiwan HIWIN square rail from Taiwan, YYC rack;
4. Automatic lubrication system upgrades, which increases gear and screw lubrication, regular quantitative provision of lubricants, and extends the service life of the machine.
5. Partition dust removal function makes the design of dust removal protection more strict and reasonable.
Feedback from customers around the world on the cutting effect of the machine. The customer said that the quality of the machine is good and the cutting accuracy is high.
Every year, customers from all over the world come to visit and study in our company. We give them technical guidance to help them use the machine better.
This is the use of our machine in the customer's factory. The cutting effect is very good. The customer is very satisfied.
Tianchen laser has been in India,Russia,Indonesia,Malaysia,Korea and other more than 20 countries to participate in the Machine Tool Exhibition.We provide advanced laser cutting technology to the world, customers all over the world can get our after-sales service in all aspects.
