Quick Details
-
Size:
-
10500-18000*3000-3500*1130-1550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-

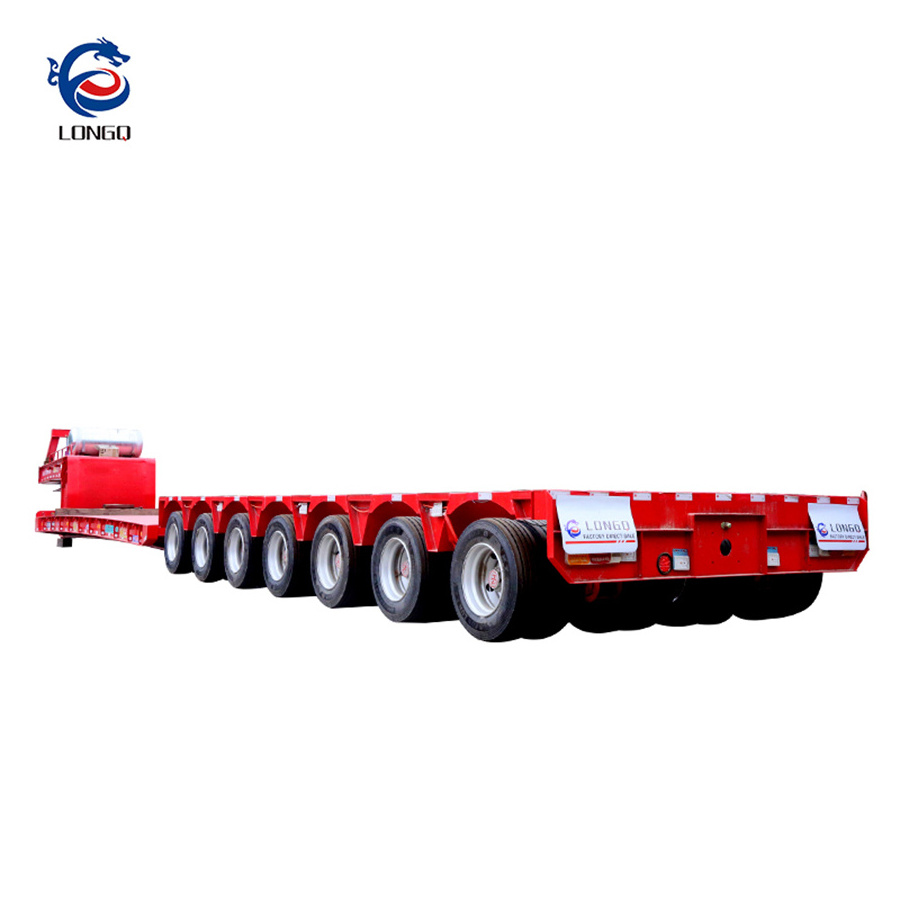

Low Bed Semi Trailer
-
Tire:
-
6.5-20/7.5-20/8.00-20/8.5-20/9.00-22.5
-
Axles:
-
Three axis, four axis and other multi axis optional
-
Function:
-
large machinery or excavator
-
Dimensions(L*W*H):
-
10500-18000*3000-3500*1130-1550mm
-
Suspension:
-
Bo spring suspensio, Air suspension
-
Floor:
-
3mm/4mm/6mm diamond steel plate
-
Other parts:
-
1 tool boxs, 1 spare tire rocket
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25-100T, 25-100T
-
Brand Name:
-
LONGQ
-
Size:
-
10500-18000*3000-3500*1130-1550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Low Bed Semi Trailer
-
Tire:
-
6.5-20/7.5-20/8.00-20/8.5-20/9.00-22.5
-
Axles:
-
Three axis, four axis and other multi axis optional
-
Function:
-
large machinery or excavator
-
Dimensions(L*W*H):
-
10500-18000*3000-3500*1130-1550mm
-
Suspension:
-
Bo spring suspensio, Air suspension
-
Floor:
-
3mm/4mm/6mm diamond steel plate
-
Other parts:
-
1 tool boxs, 1 spare tire rocket
Product Description
Low bed semi trailers are usually used to transport heavy vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy-duty goods.
The lower the center of gravity, the more stable and The better the safety, the stronger the ability to transport ultra-high cargo and pass overhead obstacles.
|
Optional parameters
|
|
|
|
Function
|
large machinery or excavator
|
|
|
Dimensions(L*W*H)
|
10500-18000*3000-3500*1130-1550mm
|
|
|
Max Payload
|
25-100T
|
|
|
Tire
|
6.5-20/7.5-20/8.00-20/8.5-20/9.00-22.5 / 11.00R20Triangle/Hankook brand
|
|
|
Main beams
|
Q345 or T700 high strength bao steel materil,Thickness increases according to load
|
|
|
Axles
|
13T/16/20T LONGQ or BPW or FUWA brand,Three axis, four axis and other multi axis optional
|
|
|
King Pin
|
2 inch(50mm) or 3.5 inch(90mm) ,Fixed or active
|
|
|
Brake System
|
WABCO Valve with big chamber
|
|
|
Landing Gear
|
two-speed Manual operating heavy duty 28ton or 32ton
|
|
|
Suspension
|
Bo spring suspensio, Air suspension
|
|
|
Floor
|
3mm4mm6mm diamond steel plate
|
|
|
Painting
|
The whole car is sandblasted, two layers of anti-rust paint, two layers of paint
|
|
|
Electrical System
|
24w 7core socket lights according to European standards (suitable for all market)
|
|
|
Other parts
|
1 tool boxs, 1 spare tire rocket
|
|
|
Remark
|
We can design model according to client's requirement
|
|
