Model: D20/D30/D50
Laser Type: Fiber Source
Work Area: 110*110mm,160*160mm,
200*200mm,300*300mm
Power: 20W/30W/50W
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Voiern
-
Dimension(L*W*H):
-
820*600*1420mm
-
Weight (KG):
-
46 KG
-
Core Components:
-
Fiber Source
-
Model:
-
D/20/30/50
-
Laser power:
-
/20/30/50W
-
Wave Length:
-
1064nm
-
Beam Quality:
-
m2<2
-
Laser repetition rate:
-
20-100KHZ/20-200KHZ
-
Standard marking scope:
-
110*110mm
-
Optional marking scope:
-
200*200mm/300*300mm
-
Marking Depth:
-
<0.3mm
-
Minimum character:
-
0.15mm
-
Minimum line width:
-
0.015mm
Quick Details
-
Engraving Area:
-
110*110mm 200*200mm 300*300mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Voiern
-
Dimension(L*W*H):
-
820*600*1420mm
-
Weight (KG):
-
46 KG
-
Core Components:
-
Fiber Source
-
Model:
-
D/20/30/50
-
Laser power:
-
/20/30/50W
-
Wave Length:
-
1064nm
-
Beam Quality:
-
m2<2
-
Laser repetition rate:
-
20-100KHZ/20-200KHZ
-
Standard marking scope:
-
110*110mm
-
Optional marking scope:
-
200*200mm/300*300mm
-
Marking Depth:
-
<0.3mm
-
Minimum character:
-
0.15mm
-
Minimum line width:
-
0.015mm
Product Overview
Fiber Marking Machine
FEATURES AT A GLANCE

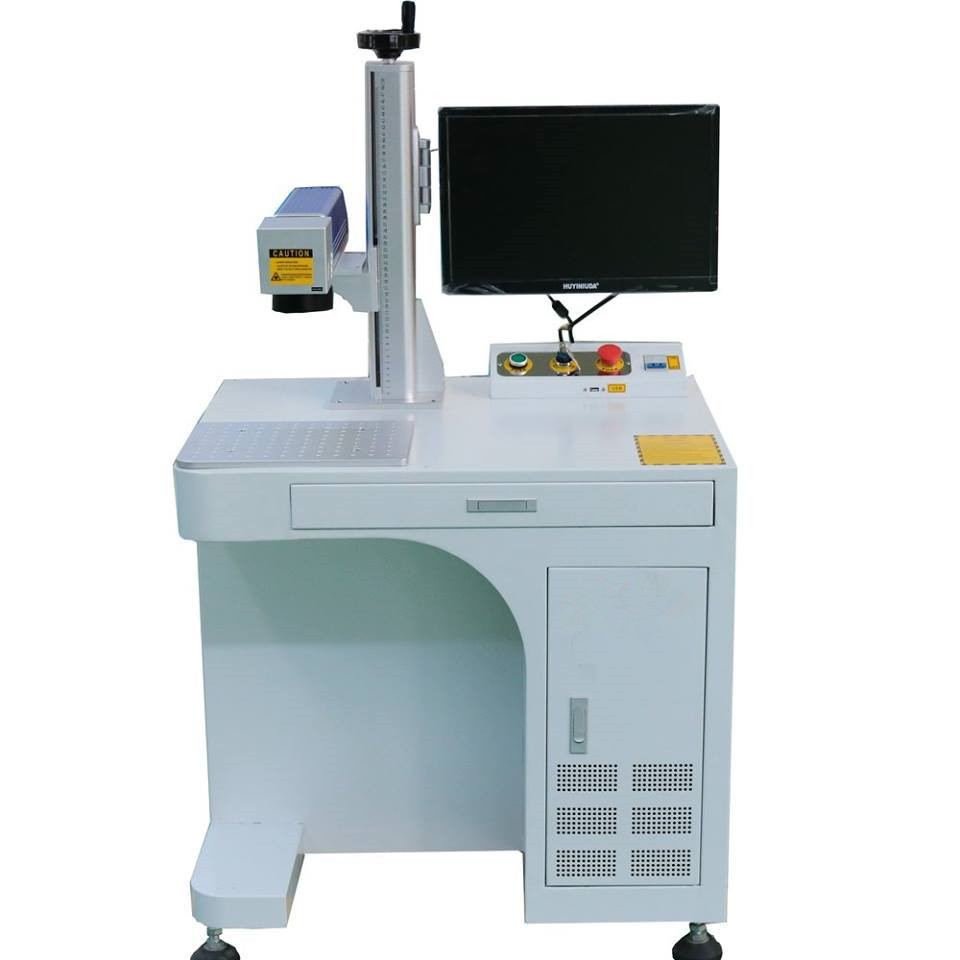

Cabinet Model
Split Model
Portable Model
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Model
|
D20/30/50
|
Laser Repetition Rate
|
20-100KHZ 20-200KHZ
|
|
2
|
Power
|
20W/30W/50W
|
Marking Depth
|
<0.3mm
|
|
3
|
Fiber Source
|
RAYCUS/MAX/JPT/IPG
|
Consumed power
|
<800w
|
|
4
|
Standard Working Area
|
160*160mm
|
Minimum line width
|
0.015mm
|
|
5
|
Optional Working Area
|
110*110mm/200*200mm
300*300mm
|
Minimum character
|
0.15mm
|
|
6
|
Applicable Material
|
NONE-METAL Material
|
Repeated accuracy
|
+/-0.003mm
|
|
7
|
Marking Speed
|
7000mm/s
|
Power supply
|
220V/110V
|
|
8
|
Wave length
|
1064nm
|
Cooling type
|
Air cooling
|
|
9
|
Control Board
|
EZCAD
|
Package Size (Split Model)
|
800*500*800mm
|
|
10
|
Picture Format
|
AI,CAD, JPG, DXF, BMP
|
Gross Weight ( Split)
|
70KG
|
PRODUCT CONFIGURATION
Optional rotary for small ring
Optional Rotary for pen and other similar shape products
Optional Rotary max 12CM diameter round objetc
SALES AND SERVICE NETWORK
Successful Project
Mark on ring
Mark on bearing
Mark on mobile shell
SIMILAR PRODUCTS
FAQ
Q1: How to choose the machine that I want?
A1: Please tell us your applicable material, max thickness of your material, size of your material(width*height in inch or mm or
cm). Our tech engineers will suggest you suitable machine.
Q2: How should I do if I am a new user of laser machine?
A2: We have video teaching course of how to install the machine accessory parts like water pump, air pump. We also offer video of
how to install the software and driver. Just contact us by wechat/whatsapp/skype/team viewer.
Q3: How is the warranty of the machine?
A3: If no human destroy factors, machine body warranty 2 years counting from the day you receive.
Key parts like laser tube, power supply, motor 3 to 10 months ( based on different power )counting from the day you receive. We
can send the replacement parts together with your nest order. But we need charge you shipping cost fee if you let us send only the
replacement parts.
Charging at cost when out of warranty.
Q4: What is the MOQ
A4: 1 SET
Q5: What is the production lead time ?
A5:QTY 1-10 sets 3 to 5 working days ( ordinary model)
QTY 10-30 sets 7-15 working days ( ordinary model)
QTY More than 30 sets, please double confirm with us
Q6: How to get the replacement within warranty?
A6: Make clear Video to describe the problem, send back the video to us, after our engineer analysis it, we will send you the
replacement part.
Q7: Is the laser harmful to human health?
A7: This laser machine is very friendly products unless we follow its operating manual.
Q8: Do you accept our logo putting on machine?
A8: Yes only for logo it is ok, we can paint your logo or out logo sticker on the machine body.
Q9: How is the machine maintenance?
A9: Clean wastage after usage. Put oil (you can use stitching machine use) on the guide rail X axis and 2 y axes to make them more
smooth. Use cotton fabric or tissue to wipe the mirrors( 3 reflective mirror+ 1 focus lens/mirror) in case they are dirty, thus
influence engraving or cutting effect.
Q10: Could I buy if I am an individual buyer( I mean I do not have a company)?
A10: The answer is YES. We offer DDU shipping, it means after receive full payment, offer us your delivery door address, and then
wait for the machine. You do not need do anything .
A1: Please tell us your applicable material, max thickness of your material, size of your material(width*height in inch or mm or
cm). Our tech engineers will suggest you suitable machine.
Q2: How should I do if I am a new user of laser machine?
A2: We have video teaching course of how to install the machine accessory parts like water pump, air pump. We also offer video of
how to install the software and driver. Just contact us by wechat/whatsapp/skype/team viewer.
Q3: How is the warranty of the machine?
A3: If no human destroy factors, machine body warranty 2 years counting from the day you receive.
Key parts like laser tube, power supply, motor 3 to 10 months ( based on different power )counting from the day you receive. We
can send the replacement parts together with your nest order. But we need charge you shipping cost fee if you let us send only the
replacement parts.
Charging at cost when out of warranty.
Q4: What is the MOQ
A4: 1 SET
Q5: What is the production lead time ?
A5:QTY 1-10 sets 3 to 5 working days ( ordinary model)
QTY 10-30 sets 7-15 working days ( ordinary model)
QTY More than 30 sets, please double confirm with us
Q6: How to get the replacement within warranty?
A6: Make clear Video to describe the problem, send back the video to us, after our engineer analysis it, we will send you the
replacement part.
Q7: Is the laser harmful to human health?
A7: This laser machine is very friendly products unless we follow its operating manual.
Q8: Do you accept our logo putting on machine?
A8: Yes only for logo it is ok, we can paint your logo or out logo sticker on the machine body.
Q9: How is the machine maintenance?
A9: Clean wastage after usage. Put oil (you can use stitching machine use) on the guide rail X axis and 2 y axes to make them more
smooth. Use cotton fabric or tissue to wipe the mirrors( 3 reflective mirror+ 1 focus lens/mirror) in case they are dirty, thus
influence engraving or cutting effect.
Q10: Could I buy if I am an individual buyer( I mean I do not have a company)?
A10: The answer is YES. We offer DDU shipping, it means after receive full payment, offer us your delivery door address, and then
wait for the machine. You do not need do anything .
