Quick Details
-
Stall torque:
-
25kg
-
item:
-
RC CAR SERVO
-
weight:
-
90g
-
apply:
-
RC CAR RC robot/airplane and multiple range use
-
Certificate:
-
ROHS/CE
-
OEM & ODM:
-
yes
-
MOQ:
-
3PCS
-
Gear:
-
steel
-
Waterproof:
-
yes
-
Feature:
-
Durable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Remote Distance:
-
100M
-
Controller Battery:
-
LI-PO
-
Stall torque:
-
25kg
-
item:
-
RC CAR SERVO
-
weight:
-
90g
-
apply:
-
RC CAR RC robot/airplane and multiple range use
-
Certificate:
-
ROHS/CE
-
OEM & ODM:
-
yes
-
MOQ:
-
3PCS
-
Gear:
-
steel
-
Waterproof:
-
yes
-
Feature:
-
Durable
Product Description
Product description
FEETECH high quality digital standard servo can be common use in remote control climbing cars, 1:10 Buggy, RC boat, helicopter,robots, mechanical arms, and others remote control toys.
The main features of high speed servo are fast heat dissipation, large torque, strong compatibility and sensitive response, etc.
Good idear for the remote control toy enthusiasts who want to DIY their RC toy, and also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device
applications.
Features:

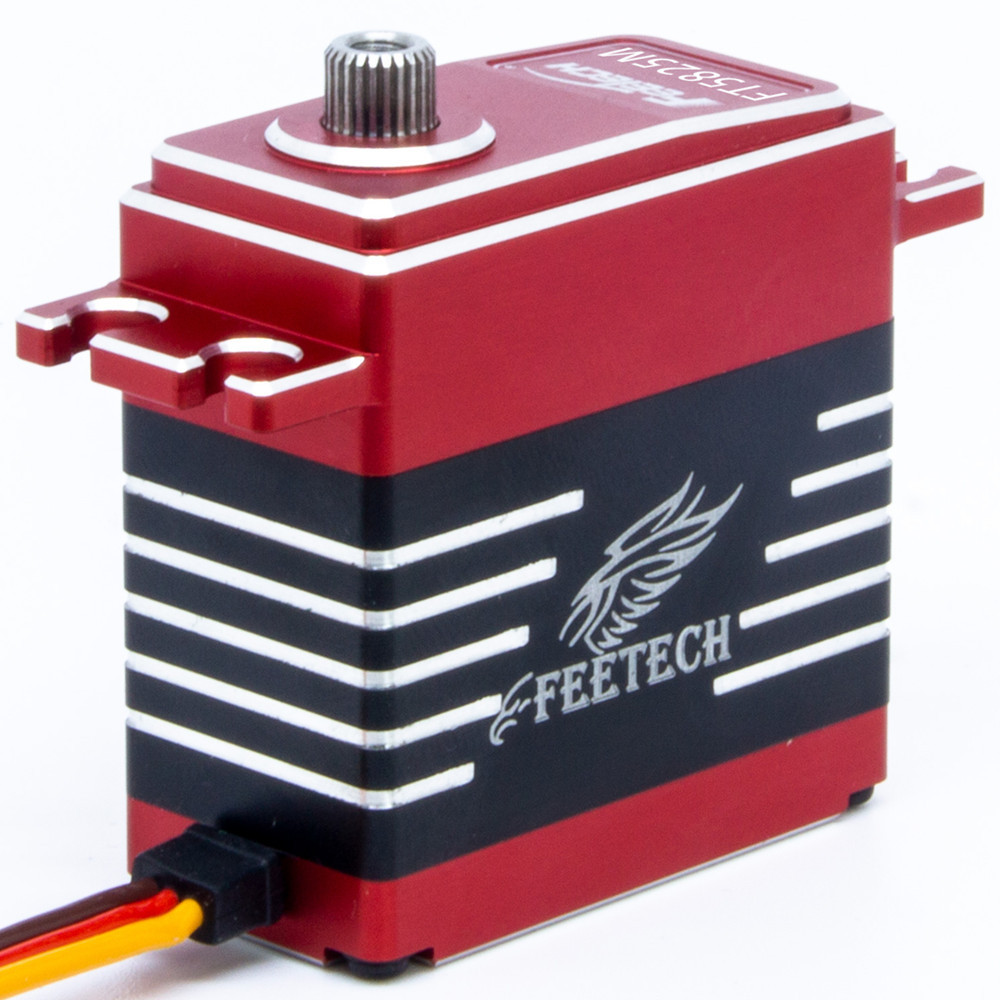

1.FEETECH 7.4V 25kg.cm digital 180 degree Steel gear high torque servo
2.The whole case is made of full CNC aluminium, and it adopts FEETECH patented strengthen stainless steel gear.
3.Contactless magnet angle sensor for a longer using life.
4.waterproof design and waterproof rubber seals screws.
FEETECH high quality digital standard servo can be common use in remote control climbing cars, 1:10 Buggy, RC boat, helicopter,robots, mechanical arms, and others remote control toys.
The main features of high speed servo are fast heat dissipation, large torque, strong compatibility and sensitive response, etc.
Good idear for the remote control toy enthusiasts who want to DIY their RC toy, and also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device
applications.
Features:
1.FEETECH 7.4V 25kg.cm digital 180 degree Steel gear high torque servo
2.The whole case is made of full CNC aluminium, and it adopts FEETECH patented strengthen stainless steel gear.
3.Contactless magnet angle sensor for a longer using life.
4.waterproof design and waterproof rubber seals screws.
Connection
The servo drive requires an external 6 volt power supply and a control board .
The drive is connected by a three-wire loop:
* Red - drive power supply.
* Brown is earth.
* Yellow - control signal from the microcontroller.
The servo drive requires an external 6 volt power supply and a control board .
The drive is connected by a three-wire loop:
* Red - drive power supply.
* Brown is earth.
* Yellow - control signal from the microcontroller.
Possible alternatives
If a high torque servo is required, use the FT5835M,FT5330M,FT830BL,FT846BL or FT6560M .
If you need a 360 ° free rotation drive, check out the FT8346M .
If a high torque servo is required, use the FT5835M,FT5330M,FT830BL,FT846BL or FT6560M .
If you need a 360 ° free rotation drive, check out the FT8346M .
Specification
|
item
|
FEETECH 7.4V 25kg.cm digital 180 degree Steel gear high torque servo
|
|
Certification
|
CE/ROHS
|
|
Rotation degree
|
180 degree
|
|
Pulse width range
|
500-2500 us
|
|
Type
|
Rc car steering servo
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
FITEC/FEETECH
|
|
Model Number
|
FT5825M
|
|
Control system
|
Digital
|
|
Dimension
|
40X20X43mm
|
|
Stall torque
|
25KG
|
|
item
|
rc servo stall torque 35kg/cm
|
|
weight
|
90g
|
|
size
|
Standard SIZE
|
|
apply
|
rc car/ rc robot/rc airplane and multiple range use
|
|
Waterproof
|
Yes
|
|
OEM & ODM
|
yes
|
|
MOQ
|
3PCS
|
Characteristics
* Model: Feetech FT5825M
* Rotation range: 180 °
* Supply voltage: 4.8-7.4V
* Torque: 25kg.cm
* Speed: 0.185sec/60°(54RPM) at 6V; 0.151sec/60°(66RPM) at 7.4V
* Gear material: Steel Gear
* Body material: All Aluminium
* Dimensions: 40 x 20 x 43mm
* Weight: 90g
* Model: Feetech FT5825M
* Rotation range: 180 °
* Supply voltage: 4.8-7.4V
* Torque: 25kg.cm
* Speed: 0.185sec/60°(54RPM) at 6V; 0.151sec/60°(66RPM) at 7.4V
* Gear material: Steel Gear
* Body material: All Aluminium
* Dimensions: 40 x 20 x 43mm
* Weight: 90g
Stall Torque:
20.5kg.cm 285.19oz.in @6.0V
347.79oz.in @7.4V
Operating Speed:
0.185sec/60°@6.0V
0.151sec/60°@7.4V
Specification:
Brand: FEETECH
Control System: PWM, 1520uS/333hz
Waterproof Level: IP54
Dead band: 2 uSec
Limit Angle: No limit
Operating Travel: 180°±10 °, 500 to 2500 uSec
Horn Gear Spline: 25T-φ5.92mm
Bearing: TWO Ball Bearing
Case Material: Aluminium
Size: 40*20*43mm
CE Certification: Yes
Weight: 90g
Wire: JR 300mm /22AWG
20.5kg.cm 285.19oz.in @6.0V
347.79oz.in @7.4V
Operating Speed:
0.185sec/60°@6.0V
0.151sec/60°@7.4V
Specification:
Brand: FEETECH
Control System: PWM, 1520uS/333hz
Waterproof Level: IP54
Dead band: 2 uSec
Limit Angle: No limit
Operating Travel: 180°±10 °, 500 to 2500 uSec
Horn Gear Spline: 25T-φ5.92mm
Bearing: TWO Ball Bearing
Case Material: Aluminium
Size: 40*20*43mm
CE Certification: Yes
Weight: 90g
Wire: JR 300mm /22AWG
Details Images
Why Choose Us
Packing & Delivery
Package included:
1 x FEETECH FT5835M digital servo
1 x Adjustable Aluminium servo arm
1xplastic accessory Bag
1 x FEETECH FT5835M digital servo
1 x Adjustable Aluminium servo arm
1xplastic accessory Bag
plastic bag standard export carton
