Quick Details
-
Weight:
-
According on the product
-
Product name:
-
Electric Steam Generator
-
Design fuel:
-
Electric Energy
-
Application:
-
Home
-
Keywords:
-
Automatic Efficient
-
Material:
-
Special Boiler Steel Plate
-
Function:
-
House Heating
-
Color:
-
Customizable
-
rated evaporation:
-
0.1-3t/h
-
design efficiency:
-
99%
-
Burner brand:
-
zhongde
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongde
-
Dimension(L*W*H):
-
According on the product
-
Weight:
-
According on the product
-
Product name:
-
Electric Steam Generator
-
Design fuel:
-
Electric Energy
-
Application:
-
Home
-
Keywords:
-
Automatic Efficient
-
Material:
-
Special Boiler Steel Plate
-
Function:
-
House Heating
-
Color:
-
Customizable
-
rated evaporation:
-
0.1-3t/h
-
design efficiency:
-
99%
-
Burner brand:
-
zhongde
-
Marketing Type:
-
Ordinary Product
LDR/
WDR

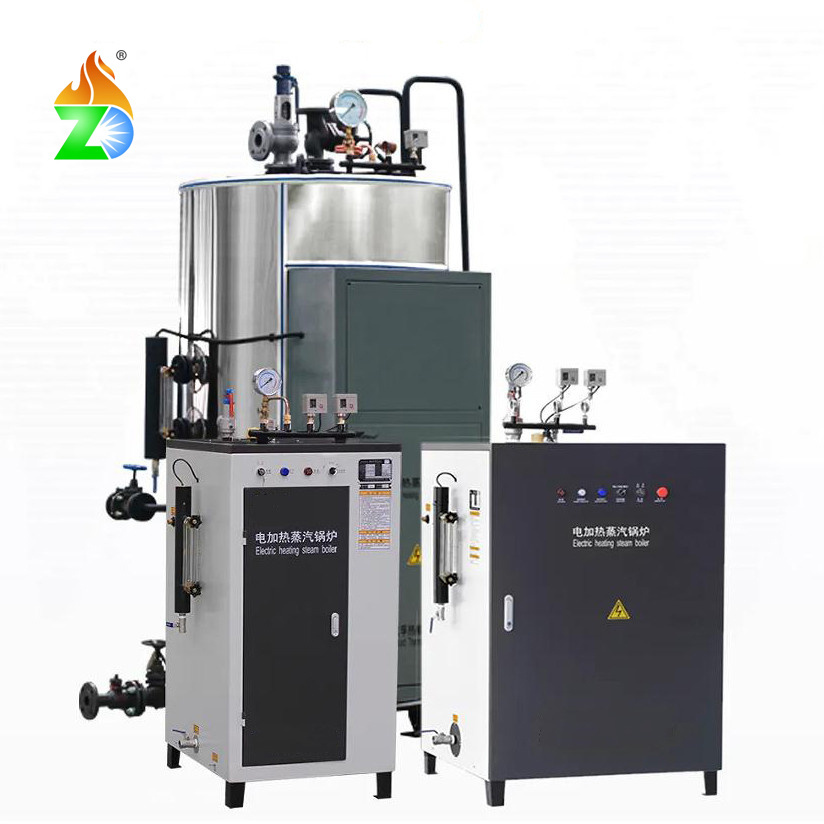

series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.
Product Description
Product specification
|
Model
|
LDR 0.1-0.7
|
LDR 0.2-0.7
|
LDR 0.3-0.7
|
LDR 0.5-0.7
|
LDR 0.7-0.7
|
LDR 1-0.7
|
LDR 1.5-1.0
|
LDR 2-1.0
|
LDR 3-1.0
|
|||||||
|
Rated evaporation (t/h)
|
0.1
|
0.2
|
0.3
|
0.5
|
0.7
|
1
|
1.5
|
2
|
3
|
|||||||
|
Rated working pressure (MPa)
|
0.7
|
|
|
|
|
|
1.0
|
|
|
|||||||
|
Rated steam temperature (℃)
|
170
|
|
|
|
|
|
184
|
|
|
|||||||
|
Water capacity (L)
|
49
|
260
|
402
|
805
|
1050
|
1640
|
3200
|
3800
|
4600
|
|||||||
|
Length (mm)
|
710
|
1135
|
1480
|
1680
|
1800
|
1920
|
3000
|
3200
|
3800
|
|||||||
|
Width (mm)
|
870
|
1140
|
1200
|
1290
|
1400
|
1470
|
1750
|
1950
|
2200
|
|||||||
|
Height (mm)
|
1240
|
1320
|
1450
|
1880
|
1880
|
1980
|
2050
|
2050
|
2200
|
|||||||
|
Base size (mm)
|
700
|
950
|
1100
|
1285
|
1300
|
1400
|
2600
|
2600
|
3200
|
|||||||
|
|
800
|
1070
|
1130
|
1290
|
1350
|
1400
|
1150
|
1200
|
1400
|
|||||||
|
Weight (kg)
|
250
|
352
|
395
|
780
|
1270
|
2100
|
3200
|
4200
|
5200
|
|||||||
Product Details
Application & Boiler case
3 T/H Electric steam boiler
User’s site:
Indonesia
Steam capacity: 3000kg/hr
Working pressure: 1.25Mpa
Application:
Tobacco industry
2 - 2 T/H Electric steam boiler
User’s site:
Saudi Arabia
Steam capacity: 2000kg/hr
Working pressure: 1.25Mpa
Application:
Oil industry
4 - 4 T/H
Electric steam boiler
User’s site: Pakistan
Steam capacity: 2000kg/hr
Working pressure: 1.25Mpa
Application:
Chemical industry
3 -2 T/H Electric steam boiler
User’s site:
Russia
Steam capacity: 2000kg/hr
Working pressure: 1.6Mpa
Application:
Coal industry
