Quick Details
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
0
-
Travel (W-axis) (mm):
-
0 mm
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
220/380V
-
Weight (T):
-
0 T
-
Color:
-
Blue
-
Name:
-
Portable Line Boring Welding Machine
-
Model:
-
T8018B
-
After-sales Service:
-
Service Machinery Overseas
-
Usage:
-
Reboring Automobile Cylinders
-
Product type:
-
Boring Machine Small Engine
-
Machine type:
-
Rotary Boring Machine
-
Keyword:
-
Boring Bar Machine
-
Precision:
-
High Precision Horizontal Boring Machine
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
100 mm
-
Table Travel (Y) (mm):
-
800 mm
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
0
-
Travel (W-axis) (mm):
-
0 mm
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
220/380V
-
Weight (T):
-
0 T
-
Color:
-
Blue
-
Name:
-
Portable Line Boring Welding Machine
-
Model:
-
T8018B
-
After-sales Service:
-
Service Machinery Overseas
-
Usage:
-
Reboring Automobile Cylinders
-
Product type:
-
Boring Machine Small Engine
-
Machine type:
-
Rotary Boring Machine
-
Keyword:
-
Boring Bar Machine
-
Precision:
-
High Precision Horizontal Boring Machine
Feature:

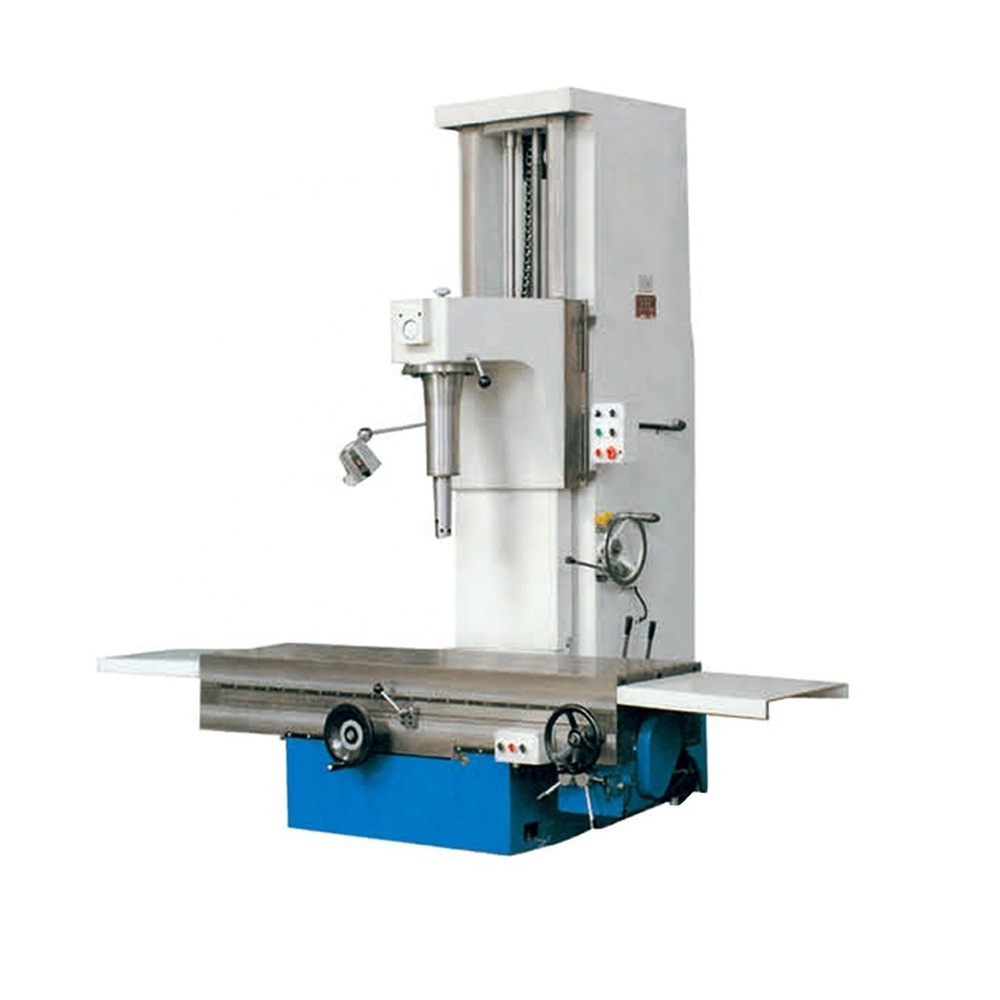

The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
T8018A: mechanical-electronic drive and spindle speed frequency changed speed variation.
T8018B: mechanical drive.
T8018C: used for processing special heavy motor cylinders .
Technical Parameter :
|
Model |
T8018A |
T8018B |
T8018C |
|
|
Range of boring diameter |
30 - 180mm |
42-180mm |
||
|
Max boring depth |
450mm |
650mm |
||
|
The max.travel of spindle |
500mm |
800mm |
||
|
The distance from the central line of the spindle to the body |
320mm |
315mm |
||
|
The Rotational speed of spindle |
140-610r/min |
175, 230, 300, 350, 460,600 r/min |
||
|
Spindle feed |
0.05, 0.10, 0.20 |
|||
|
The high speed of spindle |
2.65m/min |
2.65m/min |
||
|
Table size |
1200x500mm |
1680x450mm |
||
|
Table travel |
Crosswise 100mm Lengthwise 800mm |
Crosswise 150mm Lengthwise 1500mm |
||
|
Machine power |
3.75KW |
|||
