Quick Details
-
Brand Name:
-
Hebei KN
-
Model Number:
-
KN-EPF
-
Product name:
-
Steel Mesh Edge Protection Fence
-
Material:
-
Steel Wire
-
Size:
-
1.15*2.6m
-
Color:
-
White, red, blue,yellow,custom color
-
Surface:
-
Hot Dip Galvanized PVC Coating
-
MOQ:
-
100pcs
-
Certification:
-
ASTM
-
Advantage:
-
Use long life
-
Package:
-
Pallet
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei KN
-
Model Number:
-
KN-EPF
-
Product name:
-
Steel Mesh Edge Protection Fence
-
Material:
-
Steel Wire
-
Size:
-
1.15*2.6m
-
Color:
-
White, red, blue,yellow,custom color
-
Surface:
-
Hot Dip Galvanized PVC Coating
-
MOQ:
-
100pcs
-
Certification:
-
ASTM
-
Advantage:
-
Use long life
-
Package:
-
Pallet

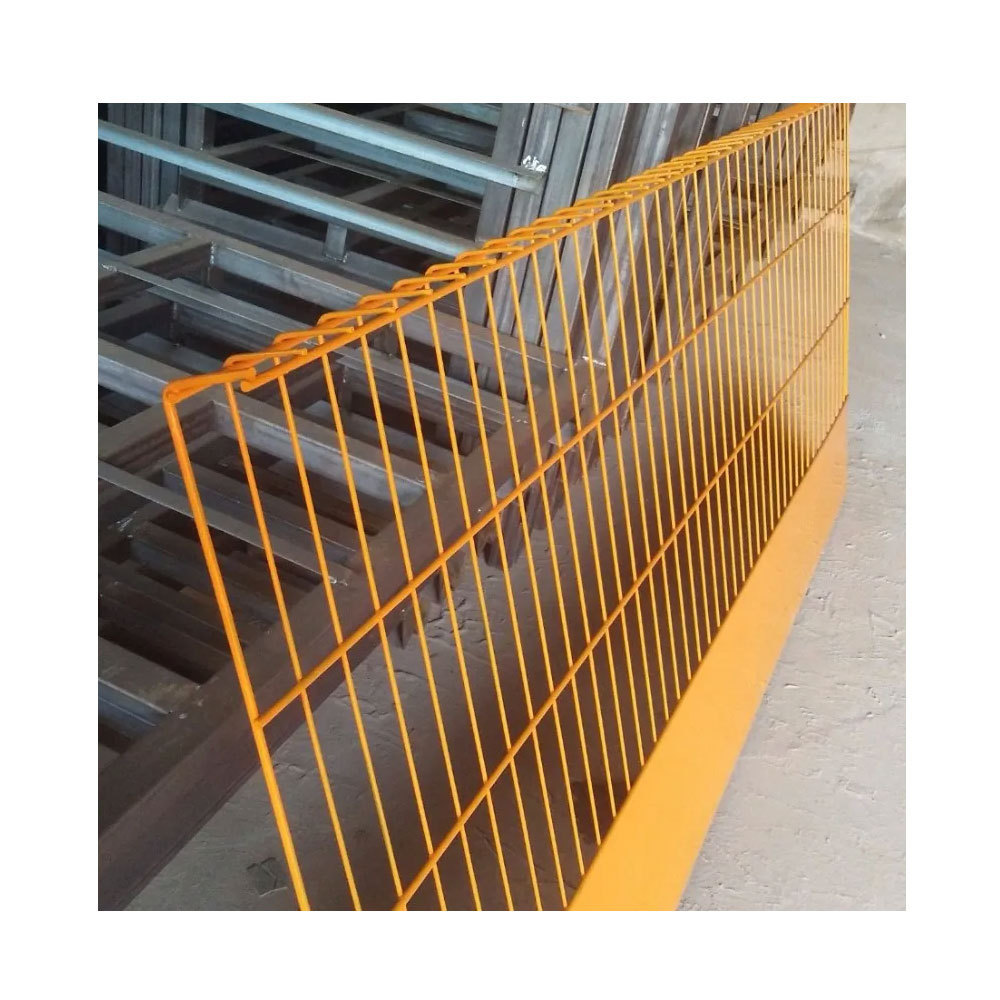

With Toe Board Housed Steel Edge Barriers Fence Used For Construction Engineering
Edge Protection Fence
Lightweight, versatile Steel Mesh Barrier that provides hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a of 500kg. Designed with closed return for greater debris containment, and with edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.
Steel Mesh Barrier comply to EN 13374 Class A and incorporate guardrail, toe board and mesh infill in one. This method provides a high level of containment and often enhances the feeling of operative safety.
|
|
|
|
The Toe Board on the bottom of Edge Protection Fence is welded on the Bottom Wire, to Prevent Small Stone falling, Avoid Hurting Somebody.
The expansive wide range of edge protection systems, including barriers, posts & attachments make this one of the most versatile systems available. This edge protection & fall safety system has been designed to span trades, accommodating for a range of different edge protection needs by simply using different combinations of barriers, posts and attachments.
|
Type of Edge Protection Fence |
|||
|
Item |
|||
|
Type |
Type 1 |
Type 2 |
Type 3 |
|
Weight |
9Kg |
16Kg |
18Kg |
|
Length |
1325mm |
2285mm |
2585mm |
|
Height |
1150mm |
1150mm |
1150mm |
|
Finish |
Galvanized wire+Powder coat |
||
|
Material |
Metal |
||
|
Wire diameter |
4.0mm |
||
|
Mesh size |
50X100mm,50X200mm |
||
|
Color |
Red, yellow, bule, white, Support customization |
||
Strength and durability are key feature of our edge protection barriers as all of them are manufactured with edges, this flat bar makes them extremely strong and protects the integrity of the edge protection barrier from being compromised during handling and transportation. The manufacturing process behind these edge protection barriers is also automated, ensuring quality, precision and reliability.
This simple to install system offers site personnel maximum protection on the perimeter of construction slabs, around stair and lift wells, excavations, etc. Mesh barriers are considered to be simple to install as they require no specialist skills but also offer a professional look to a construction site. There are extensive attachments and accessories for this system which enables it to be applied to virtually any construction project.
Packing
Edge Protection Fence With Air Bubble Film Two or Three pieces of Edge Protection Fence Panel are wrapped together by Air Bubble Film.
The Customized Pallet Package of Edge Protection Fence Panel, It is propitious to long Transportation to ensure the products surface is beautiful, not broken.
