Quick Details
-
Product Weight（kg）:
-
0.56
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAMMIN
-
Connection Mode:
-
35mm DIN rail
-
Product name:
-
DALI 5-channel Constant Voltage DC Power Supply Dimmer (DT8)
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
DALI dimmer
-
Max. Load Power:
-
400W
-
Product Weight（kg）:
-
0.56
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAMMIN
-
Connection Mode:
-
35mm DIN rail
-
Product name:
-
DALI 5-channel Constant Voltage DC Power Supply Dimmer (DT8)
Product Description

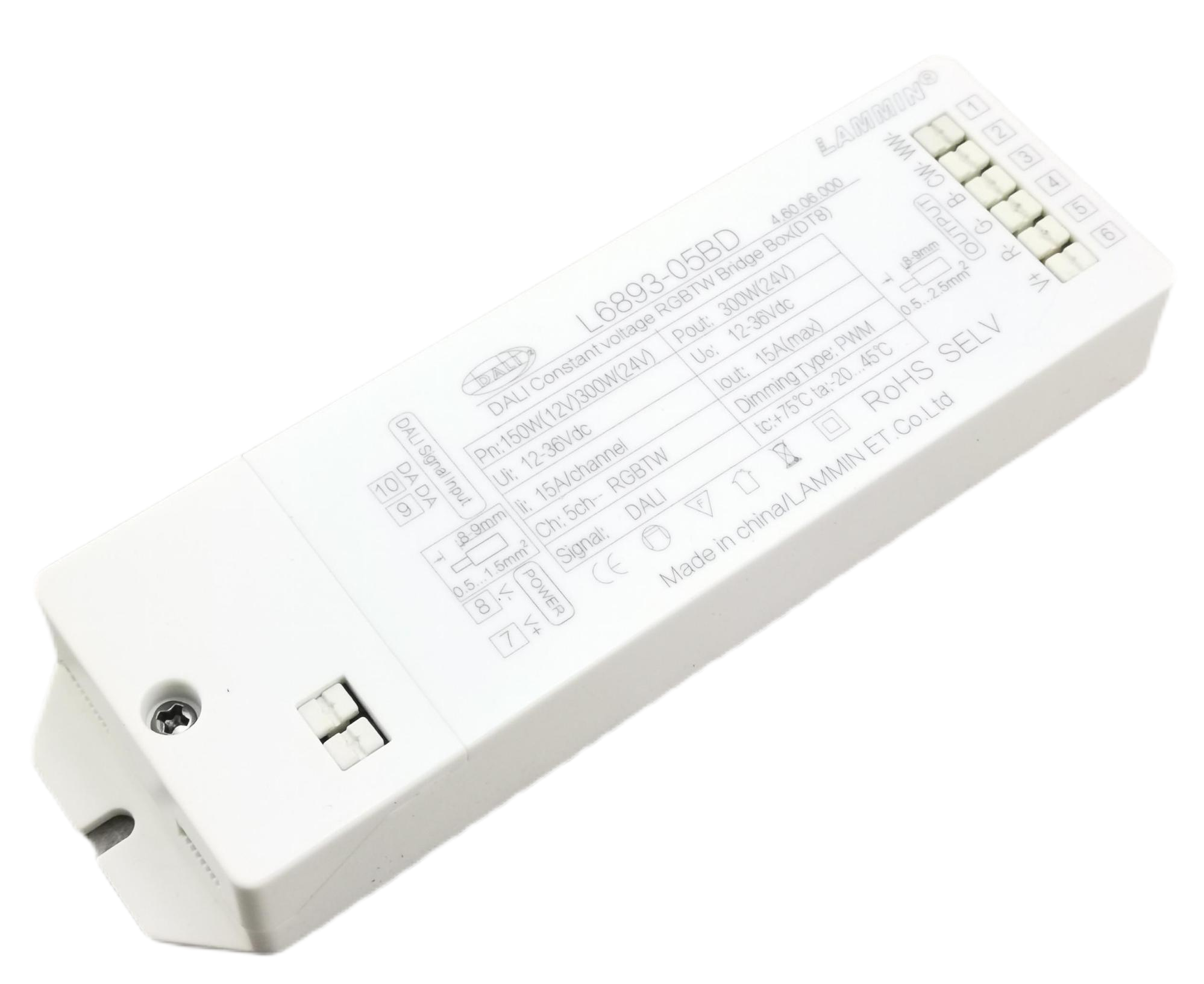

DALI 5-channel Constant Voltage DC Power Supply Dimmer (DT8)
●DALI 5-channel constant voltage DC power supply dimmer, using DC power supply, input DALI signal, output 1-5 channel PWM dimming
●Adopt high-frequent PWM control, each channel max output power reach to 150-300W
●Connect RGBCWTW color strip, or RGB strip light, color temperature and color change can be realized.
●The dimmer has built-in short circuit protection, open circuit detection, and fault alarm
●LED flicker free , power surge elimination design, long life cycle.
Features
●Wide range of application, apply for DALI 5-channel dimming signal
●Respond to DALI XY and RGB color grading commands
●High-power PWM output, each channel can drive a maximum 15 A
●Built-in short circuit detection, short circuit protection
●DALI bus current consumption is less than 2MA
●Small size and convenient installation
Product Paramenters
|
Model No
|
L6893-05BD
|
|
Brand
|
LAMMIN
|
|
Input Signal
|
DALI signal
|
|
Input Voltage
|
DC 12V-24V
|
|
Output Voltage
|
AC 0-220V
|
|
Frequency Range
|
>1000Hz
|
|
Max Load Current
|
15A/CH*2
|
|
Max Output Power
|
150W/12V 300W/24V
|
|
Load Type
|
LED lamps strips RGBCWTW
|
|
Certification
|
CE
|
|
Working Temp
|
-20℃~+50℃
|
|
Warranty
|
3 years
|
|
Size(L*W*H)MM
|
155*46*20
|
|
Installation
|
35mm DIN rail
|
Mechanical Structures and Installations
1)WW- -Warm white output 2) CW--- cool white output 3) B--- blue output 4)G--- green output
5) R--Red output 6) V+ common terminal 7) V- power supply positive 8) V -- power supply negative
9)-10) DALI signal input
