YH-(P-1) ac vibration 20000 rpm motor sam sung induction motors for AC vacuum cleaner motor 1200W

YH-(P-1) ac vibration 20000 rpm motor sam sung induction motors for AC vacuum cleaner motor 1200W

FOB Reference Price: Get Latest Price

≥1 Pieces

US $98

≥10 Pieces

US $95

≥50 Pieces

US $89

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MVE

Frequency:: 50Hz/60Hz

Single-phase:: 110~240

Three-phase:: 220~418

Certification:: CCC,ce

Quick Details

AC Voltage:: 110 /220/380 V

Place of Origin:: Guangdong, China

Brand Name:: putian

Model Number:: MVE

Frequency:: 50Hz/60Hz

Single-phase:: 110~240

Three-phase:: 220~418

Certification:: CCC,ce

Product Description

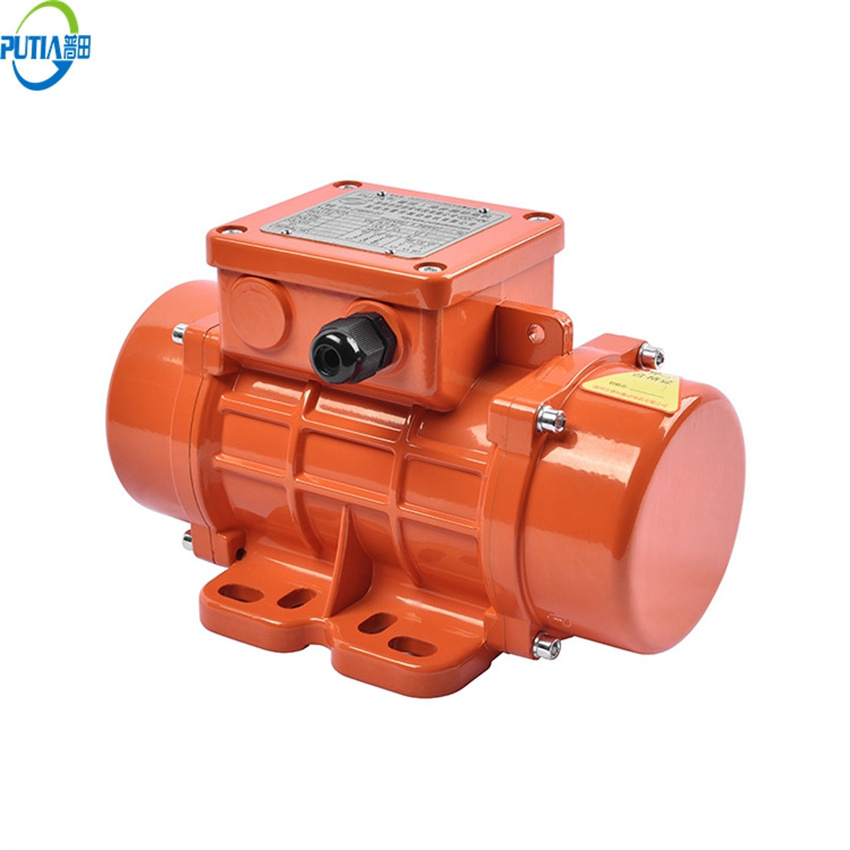

1. putian external vibration motor can be used to assist flow, installed in silos or hoppers to speed up material cutting, or installed in various industrial fields as a driving device to provide transport, screening, grading or compaction.

2. When the vibration motor is turned on, the centrifugal force is produced by the high-speed rotation of the eccentric block. If only one vibration motor is installed on the vibration equipment, the circular motion will be generated. If two reverse rotating vibration motors are installed, the linear motion will be generated. Customers follow up different applications and choose circular or linear motion.

3.Used for vibration screen and vibrating sieve with high-quality

power class	0.12KW,0.15KW,0.18KW,0.20KW,0.25KW,0.27KW,0.37KW
excitation force grade	1.2KN,1.5KN,1.8KN,2.5KN,3KN,4.3KN,5KN
lnsulation grade	F
duty of motor	S1
cooling mode	IC410
Shell material	Aluminium alloy
Voltage	AC
frequency	50Hz/60Hz

putian series parameter table
Single-phase (220V/110V) (2 poles)

Model number	Voltage (V)	Current A	Power KW	Speed(rpm) 50Hz/60Hz			Force (KN)	Cable Gland	G.W.KG	Fig
120/2S-12	220V/110V	0.371/0.582	0.12	3000	3600	1.2	M16×1.5	4.5	12
150/2S-12	220V/110V	0.350/0.660	0.15	3000	3600	1.5	M16×1.5	4.7	12
180/2S-13	220V	0.65/0.80	0.18	3000	3600	1.8	M20×1.5	6.3	13
200/2S-13	220V	0.70/0.90	0.20	3000	3600	2	M20×1.5	6.4	13
290/2S-21A	220V	1.58/3.48	0.29	3000	3600	2.9	M20×1.5	10	21A
310/2S-21A	220V	1.68/4.30	0.31	3000	3600	3.1	M20×1.5	10.2	21A
30/4S-12	220V	0.27	0.03	1500	1800	3	M16×1.5	4.5	12

Three-phase (380V/220V) (2 poles)

Products Show

Our Service

After-sale service

Professional pre-sales and after-sales team, timely answer customer's difficult questions, complete pleasant transactions

Team of Engineers

Strong technical R&D team, timely response to customer customization requirements for special vibration motors

Factory inspection

Strict inspection before each motor leaves the factory to ensure the quality of the product and to assure your use.

Our Company

Factory

4-storey large factory building in industrial zone

Workshop

High Speed Operation of Pipeline in Some Workshops

Warehouse

Inventory Adequate, Export Global Multinational Countries

Team

Gold Medal Service, Professional Sales Team

Packing & Delivery

Packing Details : Independent packaging of small vibration motor cartons
Delivery Details : Specifically based on the quantity ordered

1. Suitable carton with bubble film

2. Port Logistics Terminal

3. Transportation Safety and Fast

Our Certifications

Multiple certifications

Shenzhen xin jia hong Technology Co.,Ltd.(Shenzhen PUTIAN Vibrating Motors Co.,Ltd.)The company has 45 patents of independent research and development property rights, and the products have passed the national 3C and EU CE certification.

Customer Photo
