Quick Details
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bojosoco
-
Year:
-
2023
-
Power (kW):
-
4
-
Weight (KG):
-
1200
-
Marketing Type:
-
New Product 2022
-
Name:
-
Pipe Bending Cnc Machine
-
Control:
-
PLC---Delta
-
Keyword:
-
CNC Pipe Tube Bending Machine
-
Used for:
-
Hydraulic Electric Pipe Bender
-
Type:
-
Cnc Tube Bender
-
Product name:
-
Manual Tube Bender
-
Application:
-
Pipes Processing
-
After-sales Service Provided:
-
Online Support
-
Raw Material:
-
Round Pipe Square Tube
Quick Details
-
Machine Type:
-
CNC pipe bending machine, Tube Bending Machine
-
Bending Radius (mm):
-
35 - 200
-
Max. Bending Angle (Deg):
-
195
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bojosoco
-
Year:
-
2023
-
Power (kW):
-
4
-
Weight (KG):
-
1200
-
Marketing Type:
-
New Product 2022
-
Name:
-
Pipe Bending Cnc Machine
-
Control:
-
PLC---Delta
-
Keyword:
-
CNC Pipe Tube Bending Machine
-
Used for:
-
Hydraulic Electric Pipe Bender
-
Type:
-
Cnc Tube Bender
-
Product name:
-
Manual Tube Bender
-
Application:
-
Pipes Processing
-
After-sales Service Provided:
-
Online Support
-
Raw Material:
-
Round Pipe Square Tube
Video Description

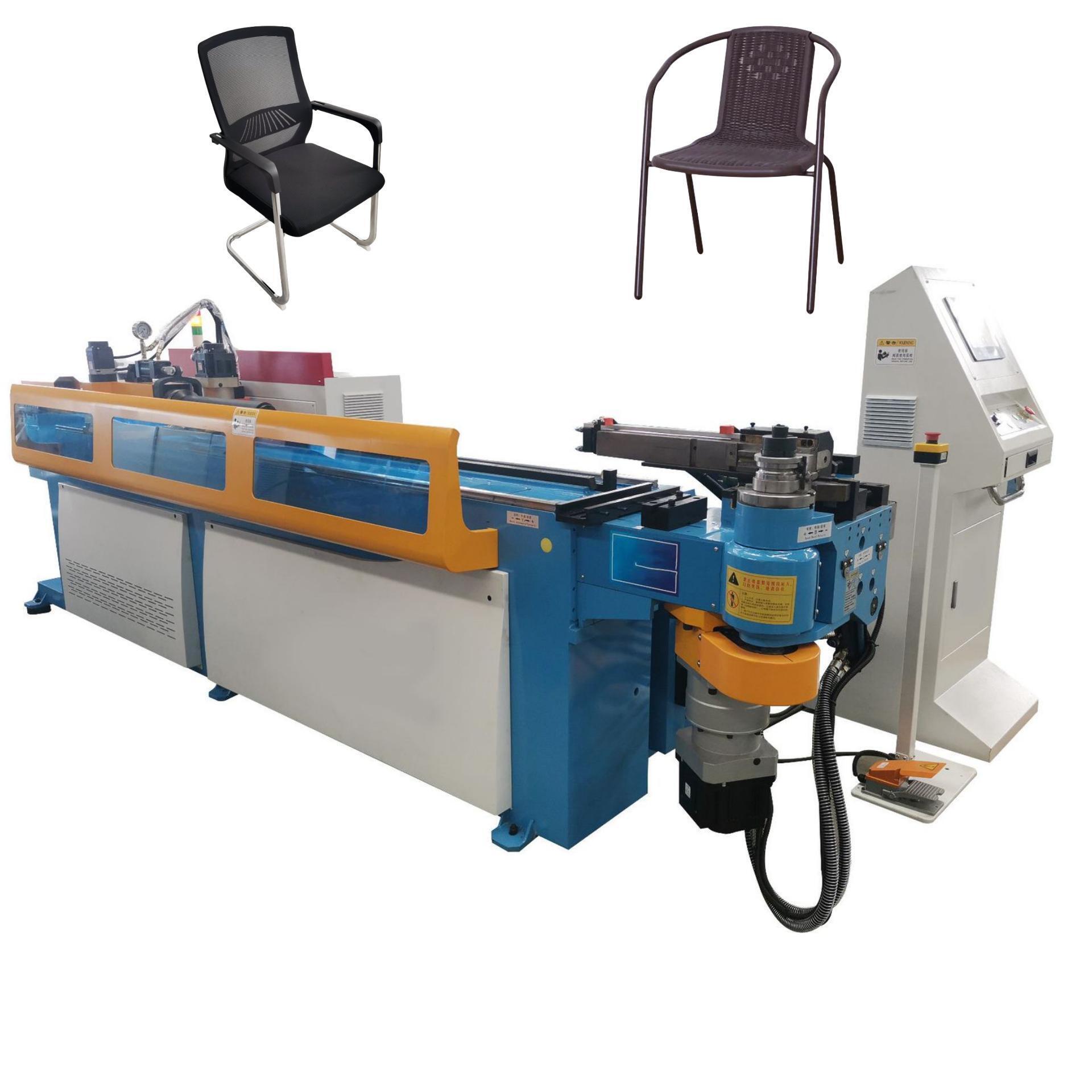

Products Description
Main features
.
* Fully automatic and CNC pipe bending machine * Equipped with 3 servo motor programmable axis * Feeding: servo motor drive;Rotation: servo motor drive * Bending: hydraulic and encoder control; Servomotor with reducer. *Imported hydraulic system and PLC(standard) unit or IPC(optional). * Automatic lubrication system for moving areas. * Self-diagnostic system, detecting the error immediately. * Multiple groups pipe-bending information storage. * Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature. * Touch screen and human/machine interface control provide user friendly operations.
|
Max bending capacity
|
Ø38mmx2 mm
|
|
Max bending radius
|
R50mm
|
|
Min bending radius
|
According to pipe diameter
|
|
Max bending degree
|
190°
|
|
Max effective distance of mandrel
|
1600mm
|
|
Feeding method
|
Direct feeding/clamping feeding
|
|
Bending speed
|
Max 90°/s
|
|
Rotary speed
|
Max 160°/s
|
|
Feeding speed
|
Max 1200mm/s
|
|
Bending accuracy
|
±0.1°
|
|
Rotary accuracy
|
±0.1°
|
|
Feeding accuracy
|
±0.1mm
|
|
Information inputting method
|
Working value (Y, B, C)
|
|
Bending method
|
Servo
|
|
Bending servo motor power
|
5KW
|
|
4.0Hydrualic motor power
|
5.5kw
|
|
Rotary servo motor power
|
0.7kw
|
|
Feeding servo motor power
|
1.0kw
|
|
Max oil pressure
|
14Mpa
|
|
Machine weight
|
1500kg
|
|
Machine size
|
4000X1500X1800mm
|
Mitsubishi Servo Motor
.
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
Mitsubishi PLC.
Model: FX5U-64M,
* fast signal
transmission
* Signal stability
Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Valve.
7 Ocean, Taiwan brand
Air Cooler
.
Ensure the stability of the machine for
a long time
PLC Controller.
A pipe per bending all individually preparing three action sequence and 10 sections of speed, allows the operator to match the
use,improve work efficiency, reduce the fitting interference
Details Images
Bending sample
