Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HSHUASHUO
-
Model Number:
-
X6332
-
Table Travel (mm):
-
1000
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
3
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*1800*2250mm
-
Weight (KG):
-
2000
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Table Travel (X) (mm):
-
1000 mm
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
400
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HSHUASHUO
-
Model Number:
-
X6332
-
Table Travel (mm):
-
1000
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
3
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*1800*2250mm
-
Weight (KG):
-
2000
-
Marketing Type:
-
Hot Product 2023
Detailed technical parameters
Maximum drilling diameter mm 50
End milling Maximum width mm 100
Milling maximum diameter mm 25
Maximum tapping diameter M16
Spindle nose to table distance mm 100 -500
Spindle speed range r.p.m 40-1440 stand V / 38-1310 lying H
Spindle travel mm 120
NT40 spindle taper
Working table size mm 1500 × 320
Table travel mm 1000 × 320
Dimensions mm 1660 × 1340 × 2200
Motor Power mm 2.2 / 3
NW / GW kg 1900/2000
Factory standard of our products (video)
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A:
We specialize in the production of CNC machine tools of various types of machining centers
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

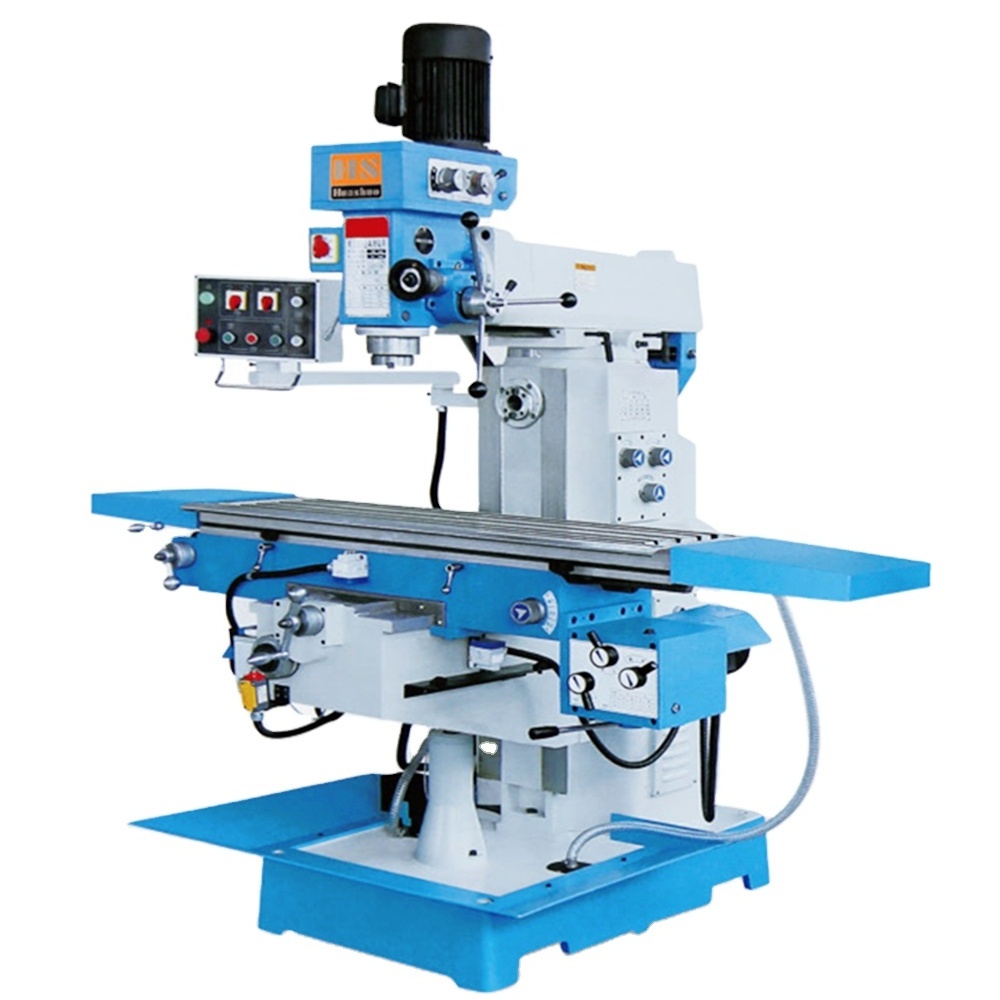

The milling machine manufacturer supplies x6332 drilling and milling machine
