Model
|

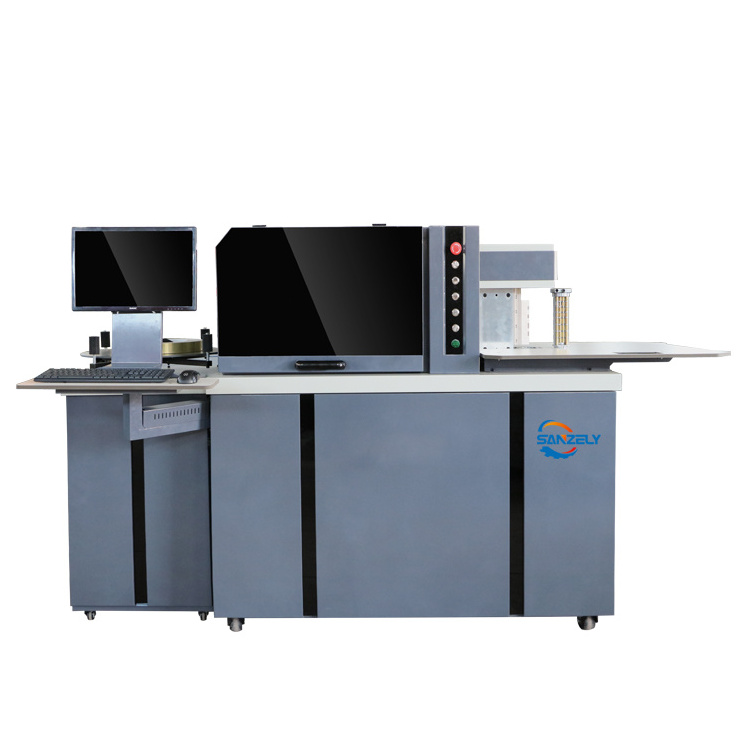

Channel Letter Bending Machine M160
|
|
Control Type
|
PC control type
|
|
Working Principle
|
Automatic Feeding, Automatic Slotting, Automatic Arc Bending, Automatic Depth Adjustment
|
|
Bending Type
|
Double side bending
|
|
Cutting and Bending system
|
with two independent cutting system, and two independent bending system
|
|
Bending Materials
|
Stainless Steel, Flat Aluminum, Folded edge Aluminum, Aluminum Profile, Galvanized Iron, Iron sheet
|
|
Max. Processed Thickness
|
Aluminum Plate :0.3mm-1.2mm
|
|
|
Stainless Steel:0.3mm-1.2mm
|
|
|
Iron:0.4-1.2mm
|
|
Max. Processed Width
|
≤160mm
|
|
Voltage
|
220V50HZ1P
|
|
Size
|
1900mm × 9000mm × 1600mm
|
|
Net Weight
|
550kgs
|
|
File Format
|
DXF,AI,PLT
|
|
Minimum Bending Radius
|
≥3mm
|
|
Feed speed
|
5-30Meters / Min
|
|
Precision
|
0.05mm
|
|
Air pressure
|
0.3-0.6Mpa
|
|
Power
|
≤2000W
|
|
Contol System
|
ADT Drive
|
