Quick Details
-
Function:
-
Dry Steam
-
Main Material:
-
stainless steel
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Smartmak
-
body thickness:
-
3MM
-
intank:
-
stainless steel
-
Power:
-
15 KW
-
Size:
-
480*480*660mm
-
Weight:
-
54kg
-
Usage:
-
Sauna
Quick Details
-
Project Solution Capability:
-
NONE, Others
-
Application:
-
Sauna room
-
Design Style:
-
Modern
-
Function:
-
Dry Steam
-
Main Material:
-
stainless steel
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Smartmak
-
body thickness:
-
3MM
-
intank:
-
stainless steel
-
Power:
-
15 KW
-
Size:
-
480*480*660mm
-
Weight:
-
54kg
-
Usage:
-
Sauna
Product Description
16 years production & exporting experience of sauna room and sauna prodcuts
|
Model: SMT-15A MAX 15KW
|
Outer size:400×460×680MM
|
Inner size: (320×340×580)
|
|
Model: SMT-18A MAX 18KW
|
Outer size:480×580×780MM
|
Inner size:(400×460×680)
|
|
Model: SMT-22A MAX 22KW
|
Outer size:490×600×830MM
|
Inner size:(410×480×730)
|

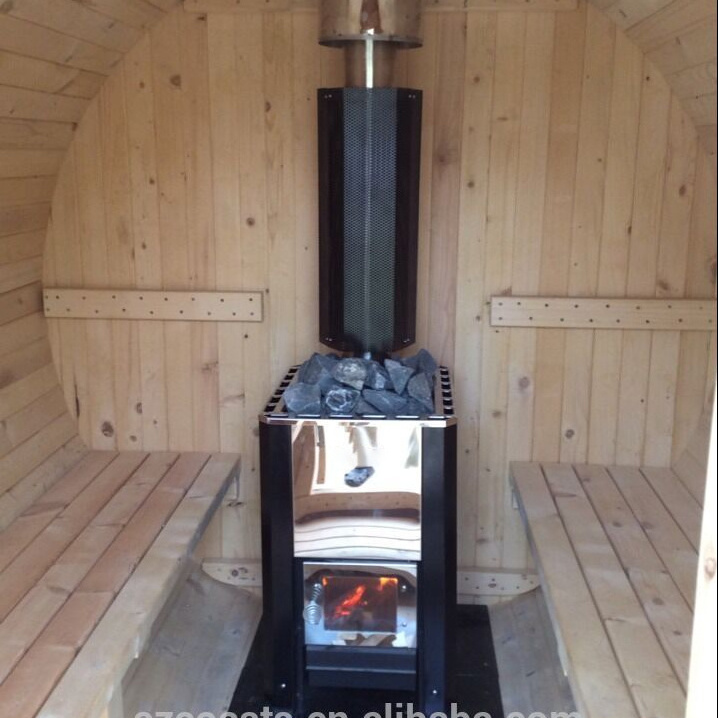

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
Side walls:
Woodburning sauna stoves are regarded as fireplaces having scorching surfaces. In our stoves, the surface temperature will not exceed 350°C, and the following safety distances should be observed when using them:
Flammable structural elements such as wooden walls, sauna seats etc.
1.Minimum distance between the vertical surfaces of the stove and any unprotected wooden structural element: 20".
2.However, the safety distance mentioned in item 1 can be decreased to minimum 10" provided a single light protection is used. This kind of single light protection can be constructed either by using a minimum 1/4" thick incombustible cement plate reinforced with fiber, or by fastening an at least 1mm thick metal plate densely enough to the wall. A minimum 1-1/4" vent hole must be left between the protective plate and the wooden surface to be protected. This can be done for example by using pipe bushings as intermediate supports.
3.The safety distance mentioned on item 1 can be further decreased to minimum 5" provided a double protection is used. The double protection can be constructed using two plates described in item 2, in addition to which an at least 1-1/4" vent hole must be left between the wall and the plates.
4.If the wall has been bedded in, a 2"vent hole between the wall and the vertical surfaces of the stove is enough.
5.A 2-1/4"embedding with open sides at a minimum 1-1/4" distance away from the protected surface is equivalent for a single light protection. Likewise, a 4-1/4" embedding not touching the protected surface would be equivalent for a double light protection.
Woodburning sauna stoves are regarded as fireplaces having scorching surfaces. In our stoves, the surface temperature will not exceed 350°C, and the following safety distances should be observed when using them:
Flammable structural elements such as wooden walls, sauna seats etc.
1.Minimum distance between the vertical surfaces of the stove and any unprotected wooden structural element: 20".
2.However, the safety distance mentioned in item 1 can be decreased to minimum 10" provided a single light protection is used. This kind of single light protection can be constructed either by using a minimum 1/4" thick incombustible cement plate reinforced with fiber, or by fastening an at least 1mm thick metal plate densely enough to the wall. A minimum 1-1/4" vent hole must be left between the protective plate and the wooden surface to be protected. This can be done for example by using pipe bushings as intermediate supports.
3.The safety distance mentioned on item 1 can be further decreased to minimum 5" provided a double protection is used. The double protection can be constructed using two plates described in item 2, in addition to which an at least 1-1/4" vent hole must be left between the wall and the plates.
4.If the wall has been bedded in, a 2"vent hole between the wall and the vertical surfaces of the stove is enough.
5.A 2-1/4"embedding with open sides at a minimum 1-1/4" distance away from the protected surface is equivalent for a single light protection. Likewise, a 4-1/4" embedding not touching the protected surface would be equivalent for a double light protection.
Installing the stove:
As in all our stoves, there is an escape hole for the smoke flue on top of the stove as well as behind it. You can close the
unnecessary hole using the cap supplied. Included with the delivery, you will also receive a 8"connecting pipe and a 6"enlarger adaptor for connecting the stove to the smoke flue through the back hole. When connecting the stove to the smoke flue through the hole on top of the stove, we recommend you use our connecting pipes which are available as accessories. When doing this, do not forget to close the smoke hole behind the stove using the cover supplied.
Do not install the connecting pipe too deep into the smoke flue, because this would block the draft. The gap between the smoke flue and the connecting pipe must be filled using e.g. mineral wool.
When installing the stove, make sure the stove stands firmly on its base and the proper safety distances mentioned in these instructions have been observed.
unnecessary hole using the cap supplied. Included with the delivery, you will also receive a 8"connecting pipe and a 6"enlarger adaptor for connecting the stove to the smoke flue through the back hole. When connecting the stove to the smoke flue through the hole on top of the stove, we recommend you use our connecting pipes which are available as accessories. When doing this, do not forget to close the smoke hole behind the stove using the cover supplied.
Do not install the connecting pipe too deep into the smoke flue, because this would block the draft. The gap between the smoke flue and the connecting pipe must be filled using e.g. mineral wool.
When installing the stove, make sure the stove stands firmly on its base and the proper safety distances mentioned in these instructions have been observed.
